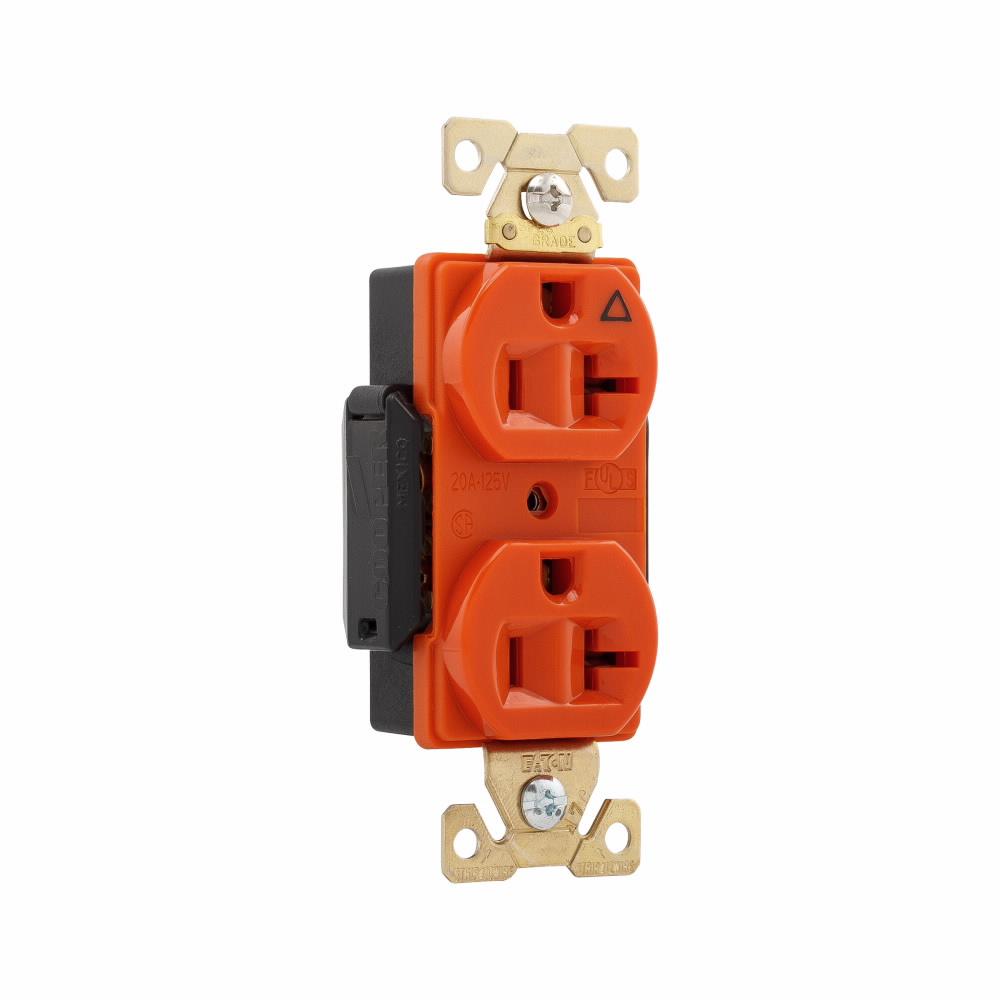

EATON Arrow Hart™ Eaton Wiring Devices AHIG5362RN AHIG5362 Isolated Ground Premium Single Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Orange

  • Manufacturers: Eaton
  • Brand Name: EATON
  • MPN: AHIG5362RN
  • UPC:032664350207
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Industrial specification grade straight blade receptacles - isolated ground premium 20 A, 125 VAC, NEMA 5-20R. designed from the inside out, these receptacles meet and exceed the UL 498 and Federal Specification W-C-596 standards to withstand the most abusive environments and excel in applications that demand the highest levels of performance.

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Isolated Ground Premium Single, Series: AHIG5362, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial/Specification Grade, -4 to 158 deg F, Screw Terminal, Glass Filled Nylon, Orange, 4.19 in H x 1.3 in W x 0.82 in D Dimensions

Amperage Rating      :      20 A
Color      :      Orange
Dimensions      :      4.19 in H x 1.3 in W x 0.82 in D
Grade      :      Industrial/Specification
Material      :      Glass Filled Nylon
NEMA Rating      :      NEMA 5-15R
Number of Poles      :      2
Number of Wires      :      3
Series      :      AHIG5362
Temperature Rating      :      -4 to 158 deg F
Terminal Type      :      Screw
Type      :      Isolated Ground Premium Single
Voltage Rating      :      125 VAC
  • Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
  • All terminal and mounting screws Triple-combination (slot/Phillips®/Robertson) head for maximum installer flexibility
  • Long, broad mounting strap helps reach large panel cut-outs for code compliance
  • Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
  • Exclusive 5-leaf solid brass line contacts provides consistent performance and superior plug retention
  • Rigid, glass reinforced nylon base lends ultimate strength and superior high heat resistance in contact carrier
  • 0.05 in (1.27 mm) solid brass plated steel mounting strap with non-riveted, integral 1-piece grounding system for highest durability assures superior ground integrity under heaviest use
  • Nylon face, glass filled nylon base
  • Flush mounting
  • 14 to 10 AWG wire terminal
