CSB115GY EATON
EATON CSB115GY CWDCSB115GY
Send Print
  1. pin-int

CWDCSB115GY

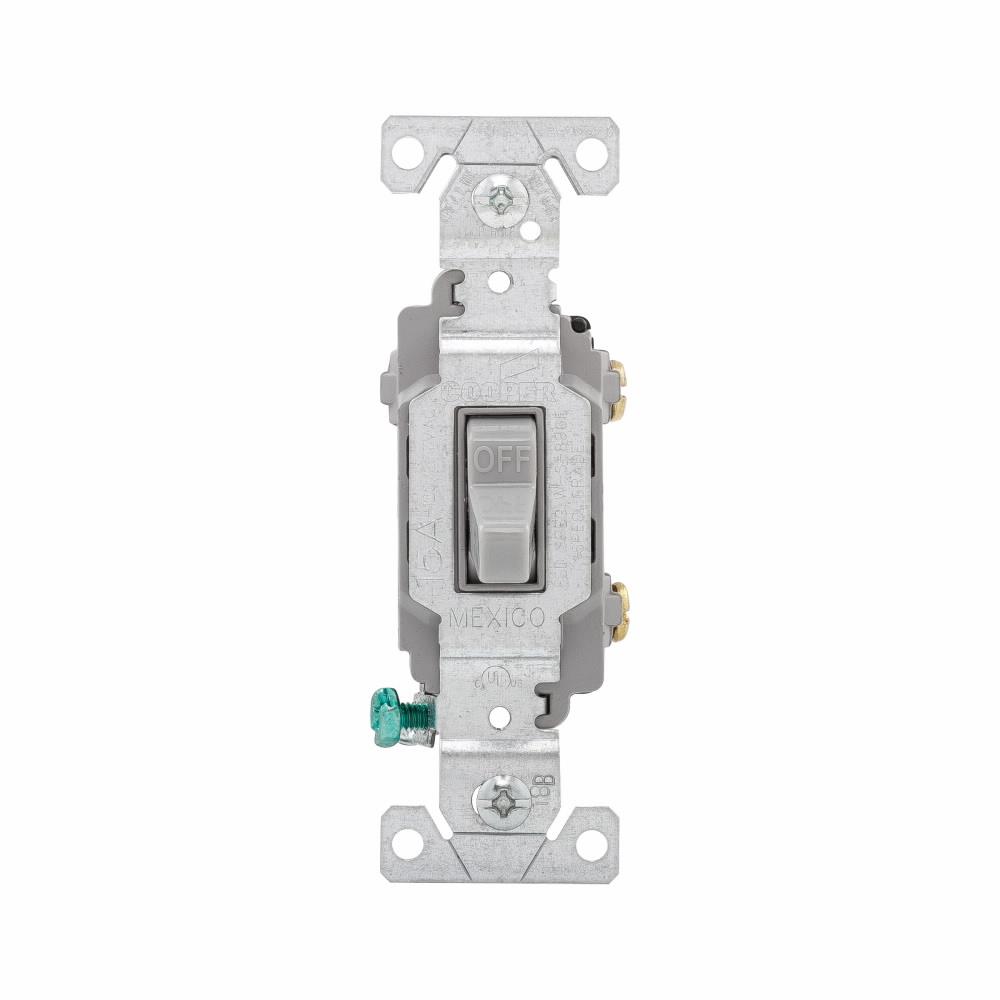

EATON Arrow Hart CSB115GY Specification Grade Toggle Switch, 120/277 V, 15 A, 1/2 hp, 2 hp Power Rating

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDCSB115GY
  • MPN: CSB115GY
  • UPC:032664558917
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Commercial grade - AC quiet switches - side wire. Heavy duty cam action mechanism insures quiet switch action. Side wire terminals accept up to 10 AWG solid or stranded wire. Ground screw terminal standard. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications.

EATON Arrow Hart Toggle Switch, Specification Grade, Series: CS Series, 120/277 V, 15 A, 1/2 hp, 2 hp Power, 15 A at 120/277 VAC Contact, 1 Pole, Toggle Actuator, Wall Mounting, Screw Terminal, 50000 Cycles Operating Cycles, PVC, Gray, Environmental Conditions: -4 to 140 deg F Operating Temperature, 1.31 in W x 1.05 in D Dimensions

Actuator      :      Toggle
Amperage Rating      :      15 A
Color      :      Gray
Contact Rating      :      15 A at 120/277 VAC
Dimensions      :      1.31 in W x 1.05 in D
Environmental Conditions      :      -4 to 140 deg F Operating Temperature
Material      :      PVC
Mounting      :      Wall
Number of Poles      :      1
Operating Cycles      :      50000 Cycles
Power Rating      :      1/2 hp, 2 hp
Series      :      CS Series
Terminal Type      :      Screw
Type      :      Specification Grade
Voltage Rating      :      120/277 V
  • Patent pending spring cup toggle design for robust actuation
  • Terminals accept up to 10 AWG solid or stranded wire
  • 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
  • Terminal screws are backed out and ready to wire
  • Tri-combo head mounting and terminal screws ease installation
  • 14 to 10 AWG terminal accommodation
  • Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
  • 2.38 in L screw to screw
  • Nylon toggle
