MP10036 EATON
EATON MP10036 CWDMP10036
Send Print
  1. pin-int

CWDMP10036

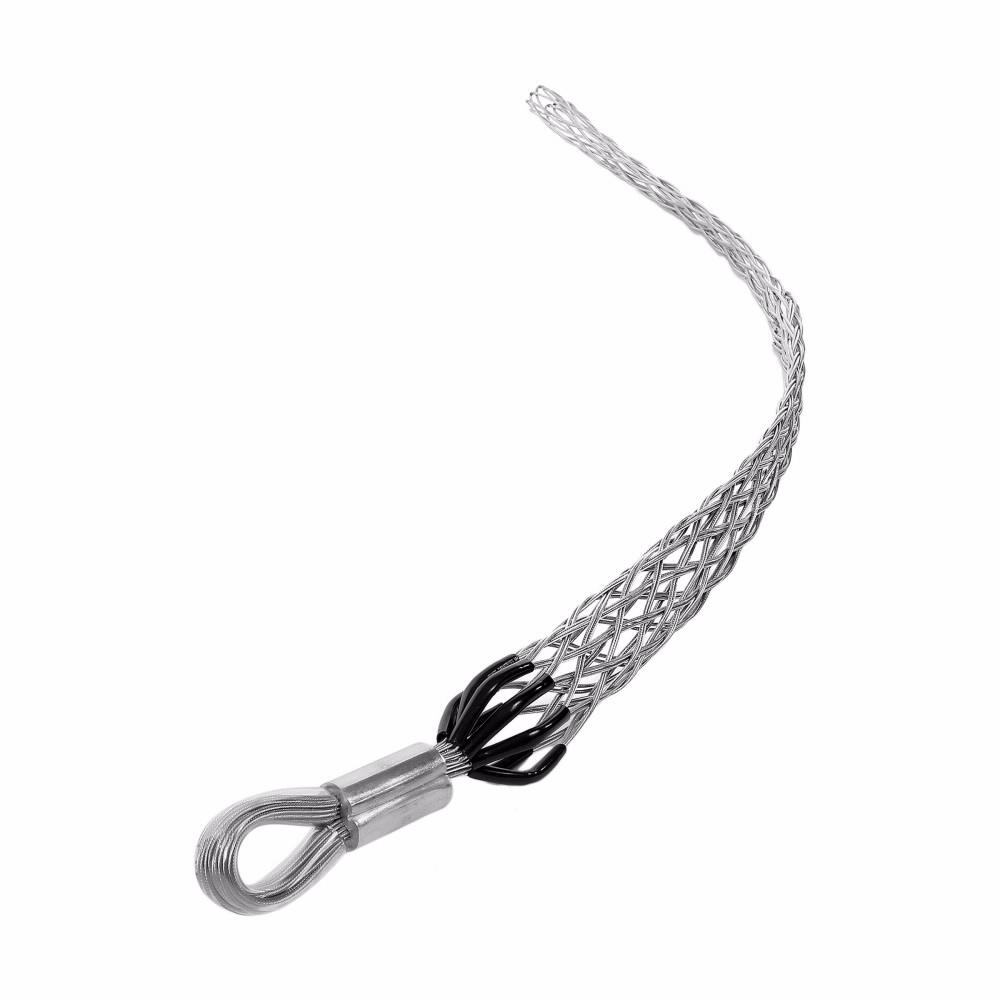

Eaton Wiring Devices MP10036 Medium Duty Pulling Grip, 1 to 1.49 in Cable, 36 in L Mesh, 5/16 in Dia Eye, 9600 lb Load, Galvanized Steel

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDMP10036
  • MPN: MP10036
  • UPC:032664724770
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's complete offering of Arrow Hart wire mesh grips is built tough for industrial applications. The broad selection of strain relief, pulling, and support grips are available in a wide range of styles and sizes to serve all of your cable protection needs.

Eaton Wiring Devices Pulling Grip, Medium Duty, Series: MP Series, 1 to 1.49 in Cable, Type T Cable, 36 in Mesh Length, Flexible Eye, 5/16 in Eye Dia, 9600 lb, Galvanized Steel

Cable Size      :      1 to 1.49 in
Cable Type      :      Type T
Eye Diameter      :      5/16 in
Eye Type      :      Flexible
Load Capacity      :      9600 lb
Material      :      Galvanized Steel
Mesh Length      :      36 in
Series      :      MP Series
Type      :      Medium Duty
  • Medium duty pulling grips are hand crafted with single weave strands that graduate to a double weave design for added strength and durability
  • Variable mesh automatically adjusts its grip to the load providing non-slip pulling and protects cable insulation from damage
  • These grips are woven in galvanized steel
  • Recommended for heavy or rugged applications and are ideally suited for overhead and underground pulling installations at an economical price
  • Standard length
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EatonWiringDevices_MP10024_Catalog.pdf
