Longer, wider strap on Toggle Switches provides 40% more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Patented built-in wire stripper for 14 and 12 AWG wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to job site breakage. Patented built-in wire looper for pre-looping. 3-way switches feature additional push-in common termination for feed through tapping. Push-in terminals accept 14 AWG solid wire only. Side wire terminals accept up to 10 AWG solid or stranded wire. Tri-combo screws accept slotted, Phillips® and Robertson head tools for installations in both the US and Canada.

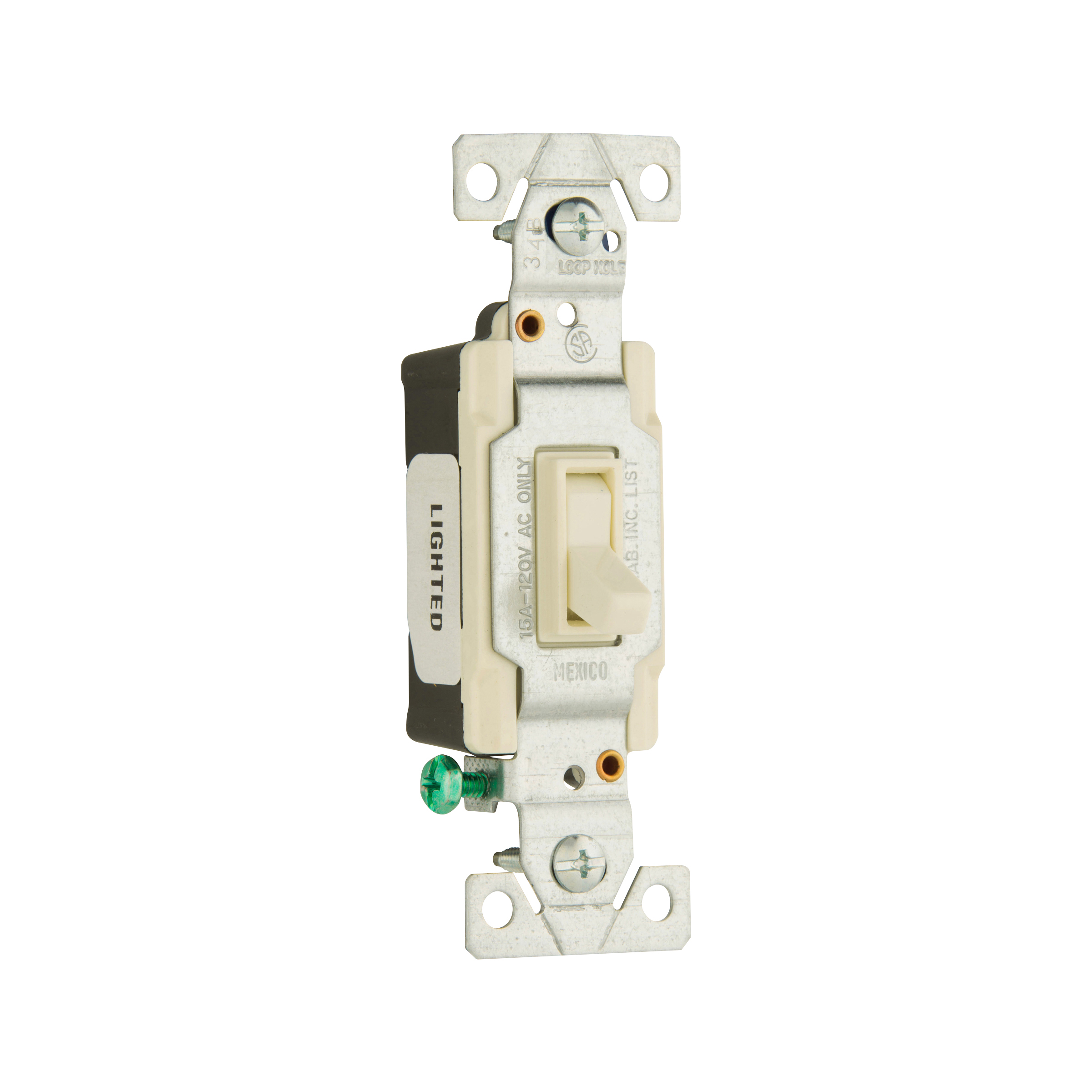

EATON Arrow Hart® Toggle Switch, Grounding Lighted Standard/Specification Grade, Series: 1300, 120 VAC, 15 A, 1/2 hp Power, 1 Pole, Framed Toggle Actuator, Flush Mounting, Side Wire/Push-In/Screw Terminal, Polycarbonate, Light Almond, Environmental Conditions: -4 to 140 deg F Operating Temperature

• 3-way switches feature additional push-in common termination for feed through tapping
• Push-in terminals accept 14 AWG solid wire only
• Side wire terminals accept up to 10 AWG solid wire
• Long, broad mounting strap virtually eliminates floating installations
• Patented built-in wire stripper for 14 and 12 AWG wire to speed installation
• Patented built-in wire looper for pre-looping
• Tri-combo screws accept slotted, Phillips® and Robertson head tools for installation flexibility
• Lighted toggle glows in OFF position

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6f2c7b5e3406c0f92947e75c3418ceda6c323131100ee469cc3750a3eef1183e.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f543f62eff1cd1ecfb5a8caaa2bbc742abbc6798ad3fa98284969e4f75ee68af.pdf
