WRBR20B EATON
EATON WRBR20B CWDWRBR20B
Send Print
  1. pin-int

CWDWRBR20B

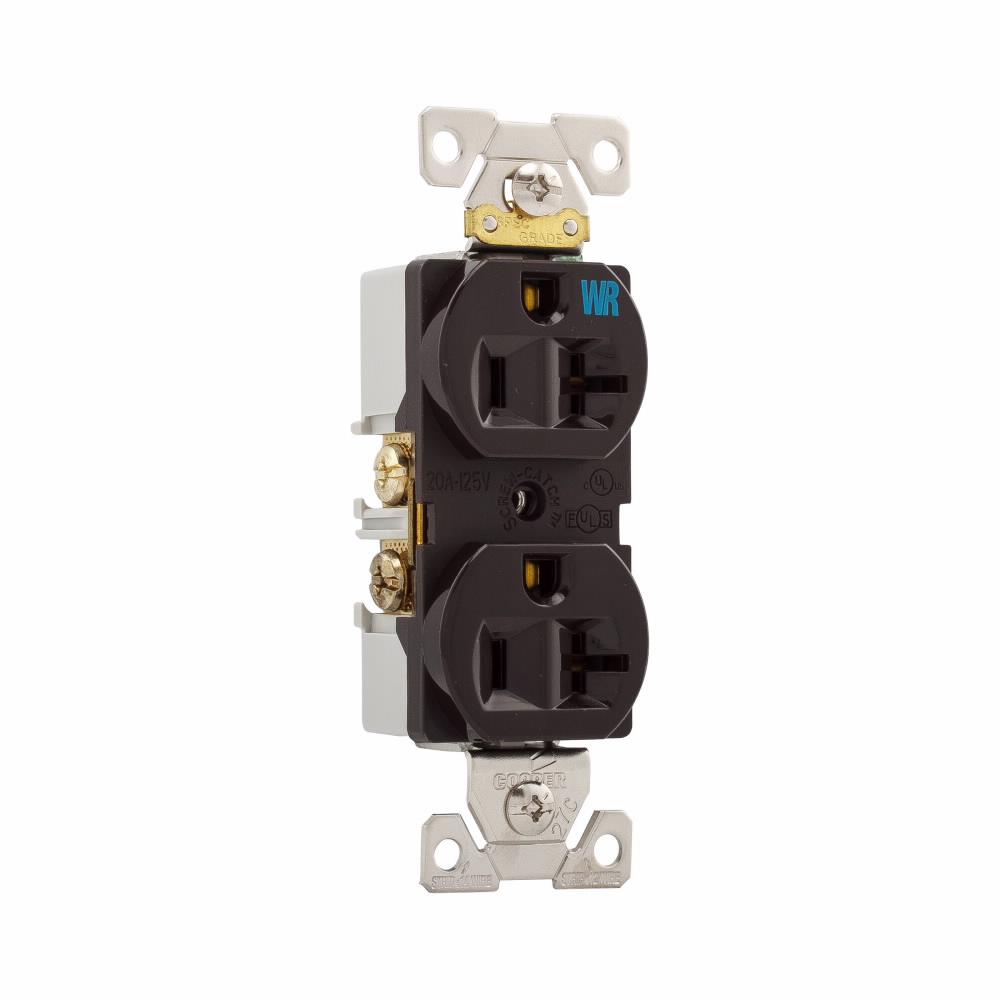

EATON Arrow Hart™ Eaton Wiring Devices WRBR20B WRBR Duplex Weather-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDWRBR20B
  • MPN: WRBR20B
  • UPC:032664673535
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Commercial specification grade straight blade receptacles - weather-resistant 20 A, 125 VAC, NEMA 5-20R. provides compliance with 2011 NEC® Article 406.9 that states that all receptacles installed in wet and damp locations must be weather-resistant. WR designation provides visual identification.

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Duplex Weather-Resistant, Series: WRBR, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Specification Grade, -4 to 158 deg F, Screw Terminal, Nylon/PVC, Brown, 4.19 in H x 1.09 in D Dimensions

Amperage Rating      :      20 A
Color      :      Brown
Dimensions      :      4.19 in H x 1.09 in D
Grade      :      Commercial/Specification
Material      :      Nylon/PVC
NEMA Rating      :      NEMA 5-20R
Number of Poles      :      2
Number of Wires      :      3
Series      :      WRBR
Temperature Rating      :      -4 to 158 deg F
Terminal Type      :      Screw
Type      :      Duplex Weather-Resistant
Voltage Rating      :      125 VAC
  • Provide compliance with 2014 NEC® Article 406.9 which states that all 15 A and 20 A, 125/250 VAC receptacles installed in wet or damp locations be weather-resistant
  • High impact-resistant thermoplastic face and back body eliminates breakage
  • Patented built-in wire stripper for 12 and 14 AWG wire to speed installation
  • Push-in terminals accept 14 AWG solid wire for quick installation
  • Patented built-in wire looper for pre-looping
  • Double wipe ground contacts ensure long term ground retention
  • Side wire terminals accept up to 10 AWG solid wire
  • Nylon top housing, PVC bottom housing
  • Nylon insulation
  • Flush mounting
  • 14 to 10 AWG wire
