1209BL EATON
EATON 1209BL CWD1209BL
Send Print
  1. pin-int

CWD1209BL

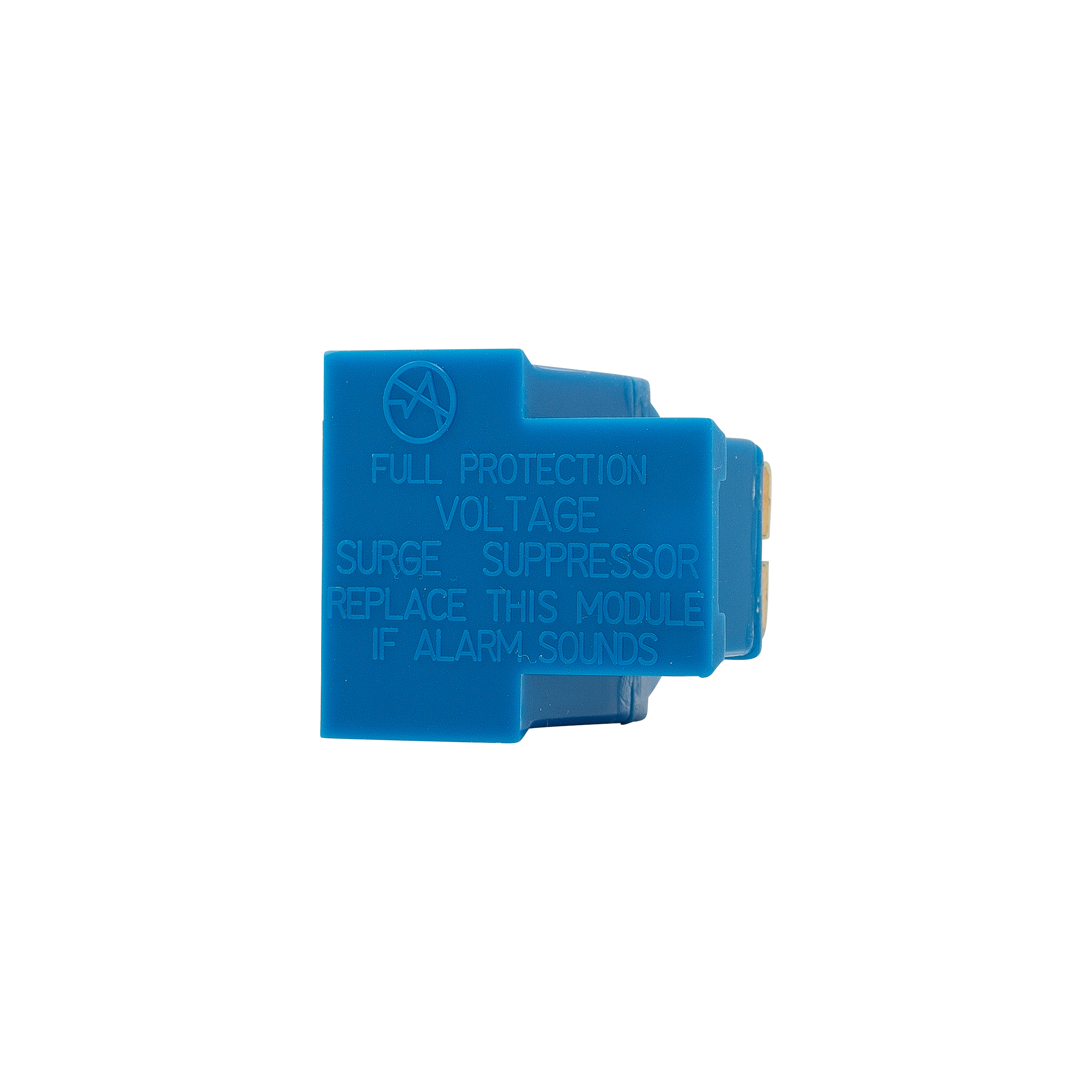

EATON Eaton Wiring Devices 1209BL Commercial SurgeBloc Module, 125 VAC, 15 A

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD1209BL
  • MPN: 1209BL
  • UPC:032664547362
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Ideal for protecting sensitive electronic equipment, Eaton Arrow Hart point-of-use receptacles provide branch circuit surge protection that panel-mounted devices alone cannot. Advanced diagnostic features include LED indicators to verify surge protection and ground wiring. Certain models are available with audible alarm signaling when surge protection has expired. These receptacles are also available in hospital and commercial grades with isolated ground versions.

EATON Wiring Devices SurgeBloc module, Commercial, 125 VAC, 15 A, Threaded Mounting, 3.12 in W x 4.87 in H Size, 0 to 40 deg C Operating, Thermoplastic, Blue

Amperage Rating      :      15 A
Color      :      Blue
Material      :      Thermoplastic
Mounting      :      Threaded
Operating Temperature      :      0 to 40 deg C
Size      :      3.12 in W x 4.87 in H
Type      :      Commercial
Voltage Rating      :      125 VAC
  • Warp-resistant
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_316e9724c474ee50e5f84c5bd30a617cd8d1e5c0b078556ac3225b16b8347c2e.pdf
