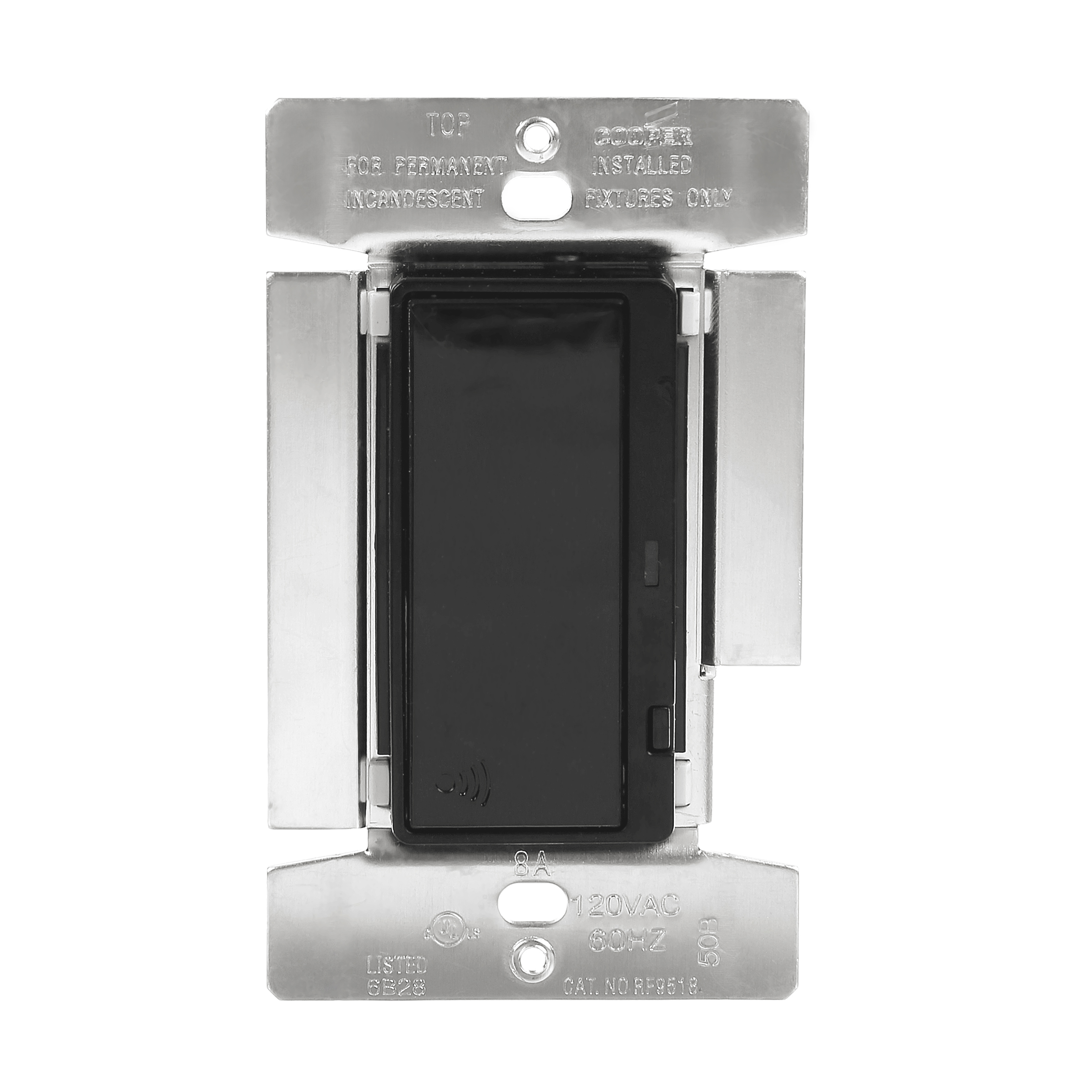

EATON ASPIRE RF™ RF9518DBK Decorator Lighting Control Switch, 120 V, 8 A, 1 Poles, On/Off Operation, Black

  • Manufacturers: Eaton
  • Brand Name: EATON
  • MPN: RF9518DBK
  • UPC:032664738845
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Add wireless control to your lighting with Eaton's Z-Wave wireless collection to make your home connected and smart. This complete offering of lighting controls is easy to install, requires no special wiring and is perfect for both existing homes and new construction. With Z-Wave based technology you can create your own wireless home network to enhance security, control appliances, set the right mood and save energy. Select from a range of styles and colors to match your home's decor.

EATON ASPIRE RF™ Lighting Control Switch, Series: Decorator, 120 V, 8 A, 60 Hz Frequency, 1 Pole, Incandescent Lamp, Rapid Start, Operation Mode: On/Off, 3-Way Control, 32 to 104 deg F, Black, 4.2 in H x 1.8 in W x 1.36 in D Dimensions

Amperage Rating      :      8 A
Color      :      Black
Control      :      3-Way
Dimensions      :      4.2 in H x 1.8 in W x 1.36 in D
Frequency Rating      :      60 Hz
Lamp Type      :      Incandescent
Number of Poles      :      1
Operation Mode      :      On/Off
Series      :      Decorator
Start Type      :      Rapid
Temperature Rating      :      32 to 104 deg F
Voltage Rating      :      120 V
  • Power failure memory
  • Compatible with Aspire RF® accessory switch (RF9520) using traditional 3-way wiring (up to 3 locations) or RF9517 using association function
  • Electro-mechanical pushbutton for ON/OFF operation
  • Blue LED at center right of paddle illuminates to indicate ON/OFF status
  • Can be associated with up to 5 other devices
  • Patented indicator system alerts if switch is not set up in the network
  • Decorator and designer series products offer the same functionality with two distinct styles
  • Neutral wire is not required for installation of device
  • All ON/OFF inclusion
  • Child lockout feature
  • Programmable delayed OFF mode (up to 4 min), default is 10 s
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9166ab44fa78de2d9c9f178dd12da4dfd6ce249596f8f2ddef31a707d7418cbe.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_eaca9c097ec3036ff676815af5a707d1894b72db03acfe2518f08f896140769b.pdf
