7731V-BOX
EATON
https://www.billows.com/3409655/product/CWD7731VBOX
https://www.billows.com/3409655/product/CWD7731VBOX
CWD7731VBOX

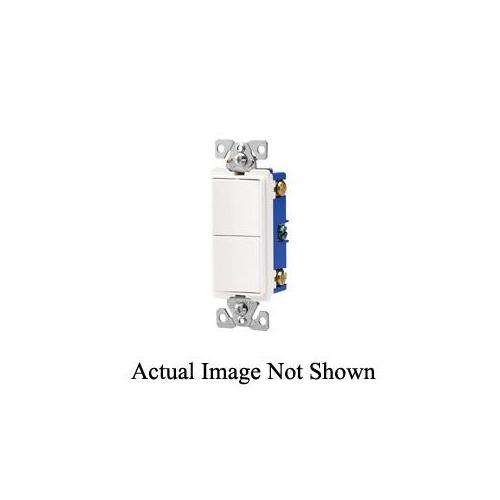

EATON Arrow Hart™ 7731V-BOX 7700 3-Way Decorator Switch/Switch Combination Switch, 120/277 VAC, 15 A, 1 Poles
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWD7731VBOX
- MPN: 7731V-BOX
- UPC:032664664892
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
EATON Arrow Hart™ Combination Switch, 3-Way Decorator Switch/Switch, Series: 7700, 120/277 VAC, 15 A Electrical Rating, 1 Pole, Paddle Actuator, Surface Mounting, 30000 Cycles Operating Cycles, Environmental Conditions: -20 to 60 deg C Operating Temperature, PVC, Ivory
| Actuator | : | Paddle |
| Color | : | Ivory |
| Electrical Ratings | : | 120/277 VAC, 15 A |
| Environmental Conditions | : | -20 to 60 deg C Operating Temperature |
| Material | : | PVC |
| Mounting | : | Surface |
| Number of Poles | : | 1 |
| Operating Cycles | : | 30000 Cycles |
| Series | : | 7700 |
| Type | : | 3-Way Decorator Switch/Switch |
- 120/277 VAC rating ideal for incandescent or fluorescent lighting fixtures
- Thermoplastic rocker, top and back body are virtually unbreakable, promising years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide superior ground integrity even under heavy use
- Durable, injection molded housings and PVC resin comply with UL94 V-0 flammability ratings
- Steel mounting strap is zinc plated for added corrosion resistance
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Break off provision on switches for wiring both devices on the same circuit or on separate circuits
- Triple wipe blade contacts and double wipe ground contacts to insure long term plug retention
- 1/2 hp at 120 VAC, 2 hp at 240 VAC
- Polycarbonate, PVC, steel thick brass plated silver alloy enclosure
