TR8262VS EATON
EATON TR8262VS CWDTR8262VS
Send Print
  1. pin-int

CWDTR8262VS

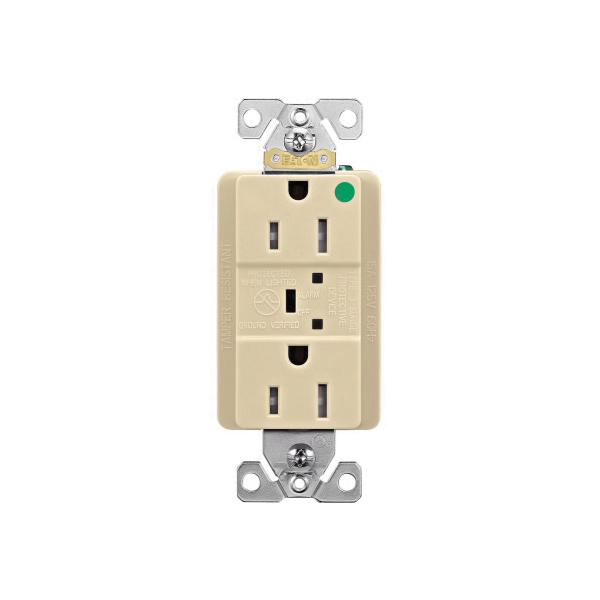

EATON TR8262VS Wallbox Surge Receptacle, 125 V, 15 A

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDTR8262VS
  • MPN: TR8262VS
  • UPC:032664756474
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Ideal for protecting sensitive electronic equipment, Eaton's Arrow Hart point-of-use receptacles provide branch circuit surge protection that panel-mounted devices alone cannot. Advanced diagnostic features include LED indicators to verify surge protection and ground wiring. Certain models are available with audible alarm signaling when surge protection has expired. These receptacles are also available in hospital and commercial grades with isolated ground versions.

EATON Surge Receptacle, Wallbox, 125 V, 15 A, NEMA 5-15R Outlet, Indicators: LED/Alarm, Back and Side Wired, Wall/Flush, 1.62 in L x 1.7 in W x 4.2 in H, -40 to 60 deg C Operating, Thermoplastic, Ivory

Amperage Rating      :      15 A
Color      :      Ivory
Connection      :      Back and Side Wired
Material      :      Thermoplastic
Mounting      :      Wall/Flush
Operating Temperature      :      -40 to 60 deg C
Outlet      :      NEMA 5-15R
Size      :      1.62 in L x 1.7 in W x 4.2 in H
Type of Indicators      :      LED/Alarm
Type      :      Wallbox
Voltage Rating      :      125 V
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c2f6b969b0bc5bb2681eb2bcb35e5bba42a5d2d98f6e08df5b3309ae012a1013.pdf
