AH5464BK EATON
EATON AH5464BK CWDAH5464BK
Send Print
  1. pin-int

CWDAH5464BK

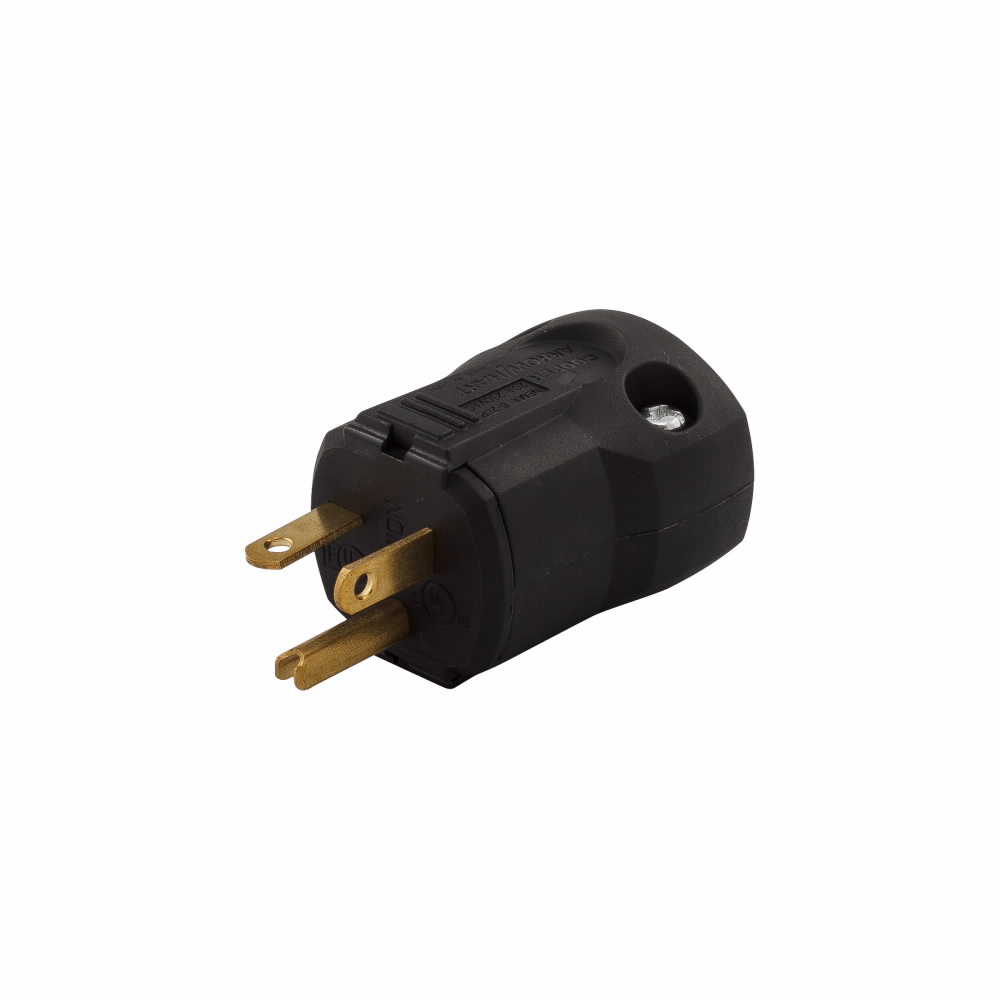

EATON QuickGrip AH5464BK Straight Blade Plug, 250 V, 20 A, 2 Poles, 3 Wires, Black

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDAH5464BK
  • MPN: AH5464BK
  • UPC:032664734243
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Quick grip plugs and connectors are designed for quick, secure installation and easy, long-lasting use. They feature rugged nylon construction and a roomy wiring chamber for fast and easy installation. Our scalloped ergonomic design provides a comfortable grip during installation and operation.

EATON QuickGrip Straight Blade Plug, 250 V, 20 A, 2 Pole, 3 Wires, NEMA 5-20P NEMA Rating, Industrial Grade, 0.33 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 1.37 in W Tip 2 Tip x 1.5 Base x 20.6 in L Dimensions

Amperage Rating      :      20 A
Color      :      Black
Cord Diameter      :      0.33 to 0.66 in
Dimensions      :      1.37 in W Tip 2 Tip x 1.5 Base x 20.6 in L
Grade      :      Industrial
Material      :      Nylon
NEMA Rating      :      NEMA 5-20P
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -40 to 75 deg C
Terminal Type      :      Screw
Type      :      Plug
Voltage Rating      :      250 V
  • Polycarbonate terminal retainer
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c000da21d74812a91d6f7ded180d100bf87d24625a3f2c368da147db3efb894c.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1aa4c7a98d7179374ff351c0cc4dddf60cbcd73223556ba169dfdc2a54d753ef.pdf
