5717AN
EATON
https://www.billows.com/3409684/product/CWD5717AN
https://www.billows.com/3409684/product/CWD5717AN
CWD5717AN

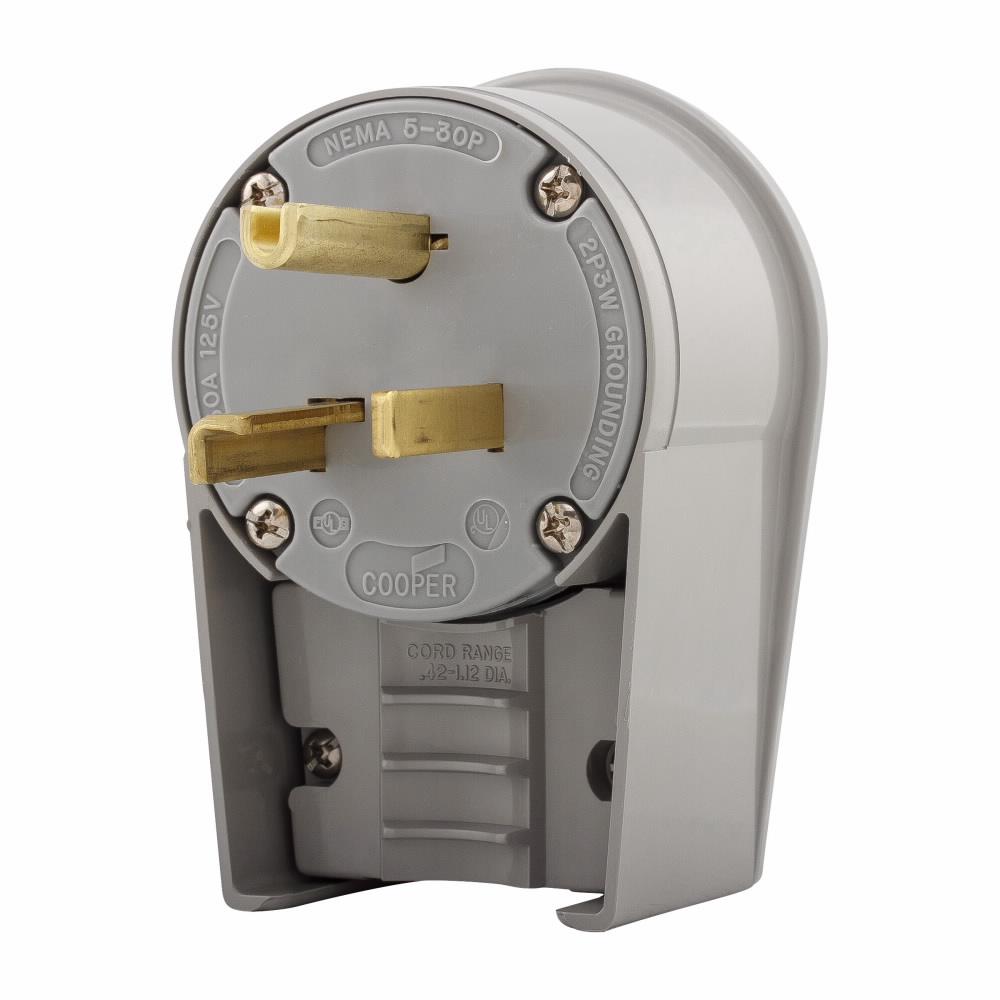

EATON Arrow Hart™ Eaton Wiring Devices 5717AN Angled Straight Blade Plug, 125 VAC, 30 A, 2 Poles, 3 Wires, Gray
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWD5717AN
- MPN: 5717AN
- UPC:040893020372
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Industrial specification grade straight blade plugs and connectors - ultra Grip™ and safety Grip™ NEMA 5-15, 2-pole 3-wire. ultra Grip™ and safety Grip™ devices are designed to install quickly and easily and provide reliable performance in tough industrial environments.
EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Plug, Angled, 125 VAC, 30 A, 2 Pole, 3 Wires, NEMA 5-30P NEMA Rating, Commercial/Industrial Grade, 0.56 to 1.31 in Diameter Cord, 40 to 75 deg C, Back Wire/Threaded Terminal, Nylon, Gray, 3.12 in Dia x 3.81 in L Dimensions
| Amperage Rating | : | 30 A |
| Color | : | Gray |
| Cord Diameter | : | 0.56 to 1.31 in |
| Dimensions | : | 3.12 in Dia x 3.81 in L |
| Grade | : | Commercial/Industrial |
| Material | : | Nylon |
| NEMA Rating | : | NEMA 5-30P |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Temperature Rating | : | 40 to 75 deg C |
| Terminal Type | : | Back Wire/Threaded |
| Type | : | Angled |
| Voltage Rating | : | 125 VAC |
- Quick-drive stainless steel assembly screws provide corrosion-resistance and speed installation time
- Broad selection of flanged inlets accept 12 to 4 AWG conductors
- Angled plug versions have 4 possible positions for maximum convenience
- Rugged high-strength construction
- Neoprene gasket seals around cord for added terminal protection from external elements
- Unique internal clamp design secures cord during assembly, reducing installation time
- 12 to 4 AWG wire
Specification Sheet
