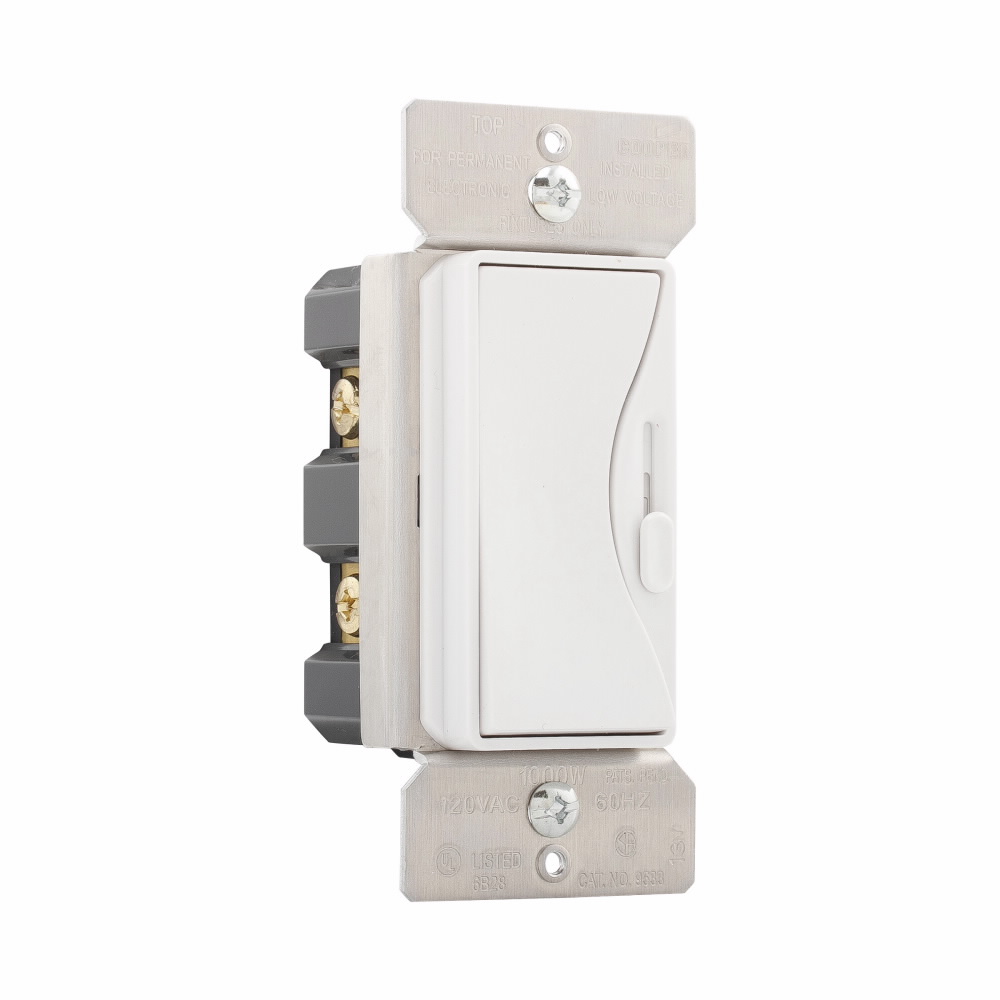

EATON Aspire® 9533AW Slide Dimmer Switch, 120 V, 1 Poles, 3-Way/Maintained Operation, Alpine White

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD9533AW
  • MPN: 9533AW
  • UPC:032664715181
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Using the latest in dimming technology, Eaton's dimmers let you adjust the level of your lighting at the light switch, so you can bring the right look to the room and save money at the same time. That s because lighting controls reduce the amount of electricity used by your lights, which saves electricity, reduces utility bills and extends the life of the bulb. Eaton's lighting controls are compatible with most common lighting loads, including LED, CFL, MLV, ELV and Fluorescent; and they come in multiple styles and colors, you can select the perfect dimmer for every room in your home or commercial building.

EATON Aspire® Slide Dimmer Switch, 120 V, 1000 W Power, 60 Hz Frequency, 1 Pole, Electronic Low Voltage Lamp, Operation Mode: 3-Way/Maintained, Flush Mounting, Back/Side Wire/Wire Lead Terminal, 0 to 40 deg C, Polycarbonate, Alpine White, 3 in L x 2.13 in W x 4.5 in H Dimensions

Color      :      Alpine White
Dimensions      :      3 in L x 2.13 in W x 4.5 in H
Frequency Rating      :      60 Hz
Lamp Type      :      Electronic Low Voltage
Material      :      Polycarbonate
Mounting Type      :      Flush
Number of Poles      :      1
Operation Mode      :      3-Way/Maintained
Power Rating      :      1000 W
Temperature Rating      :      0 to 40 deg C
Terminal Type      :      Back/Side Wire/Wire Lead
Voltage Rating      :      120 V
  • Push pad actuator
  • 14 to 12 AWG wire
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0a500c066ebacf2bd890d8ff80955188a7160ecbd7d4cd695dfd1606e59fcf31.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d7e52da3d3630102c132e29c0a0a9ac3633a8c7ab5ba8c3f55e7278fb7ea6218.pdf
