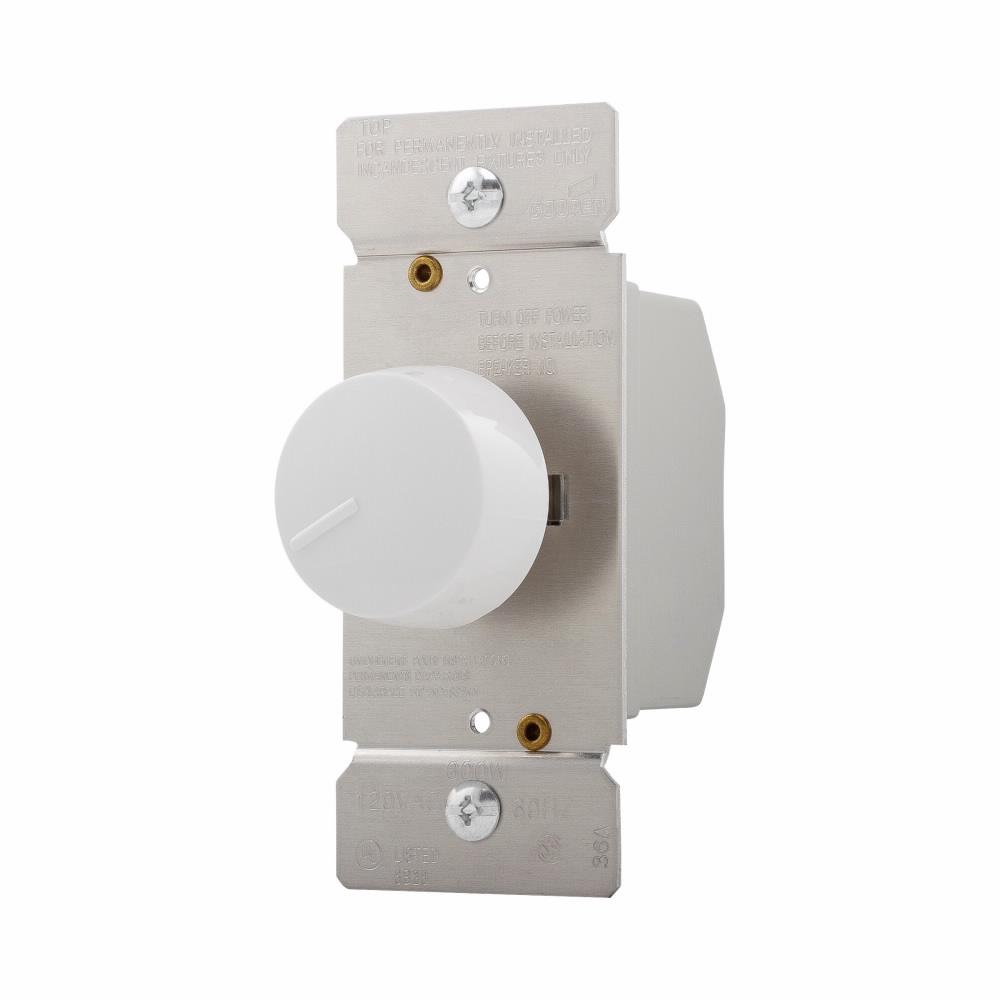

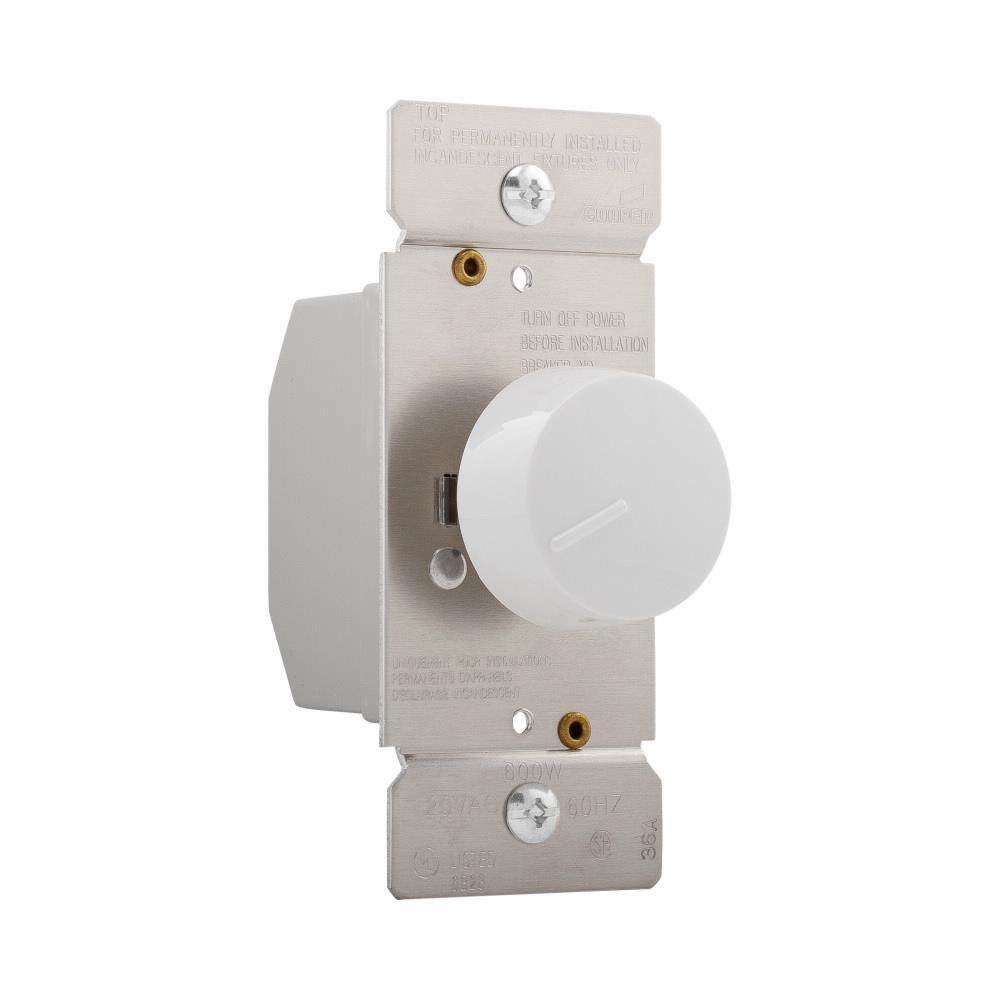

EATON Eaton Wiring Devices RI06P-W 3-Way Rotary Dimmer With Preset, 120 VAC, 5 A, 1 Pole, White

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDRI06PW
  • MPN: RI06P-W
  • UPC:032664699023
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Using the latest in dimming technology, Eaton dimmers let you adjust the level of your lighting at the light switch, so you can bring the right look to the room and save money at the same time. That's because lighting controls reduce the amount of electricity used by your lights, which saves electricity, reduces utility bills and extends the life of the bulb. Eaton lighting controls are compatible with most common lighting loads, including LED, CFL, MLV, ELV and Fluorescent, and they come in multiple styles and colors, you can select the perfect dimmer for every room in your home or commercial building.

EATON Wiring Devices Rotary Dimmer, 3-Way, 120 VAC, 5 A, 600 W Power, 60 Hz Frequency, 1 Pole, Incandescent/Halogen Lamp, Preset Start, Flush/Wall Mounting, Lead Wire Terminal, 0 to 40 deg C, Polycarbonate, White, 3.28 in L x 1.7 in W x 1.3 in D Dimensions

Amperage Rating      :      5 A
Color      :      White
Dimensions      :      3.28 in L x 1.7 in W x 1.3 in D
Frequency Rating      :      60 Hz
Lamp Type      :      Incandescent/Halogen
Material      :      Polycarbonate
Mounting Type      :      Flush/Wall
Number of Poles      :      1
Power Rating      :      600 W
Start Type      :      Preset
Temperature Rating      :      0 to 40 deg C
Terminal Type      :      Lead Wire
Type      :      3-Way
Voltage Rating      :      120 VAC
  • Preset versions offer one-pole and three-way wiring in a single unit
  • Integrated full slide control for easy, precise operation
  • Neutral is not required for installation of device
  • Radio frequency interference (RFI) filtering for radio, audio and video equipment
  • Power failure memory
  • Electrostatic discharge protection
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_db066aecc51927ff070f3697d9ddd5650a36d790106f1ea68fd2ee1be2545472.pdf
