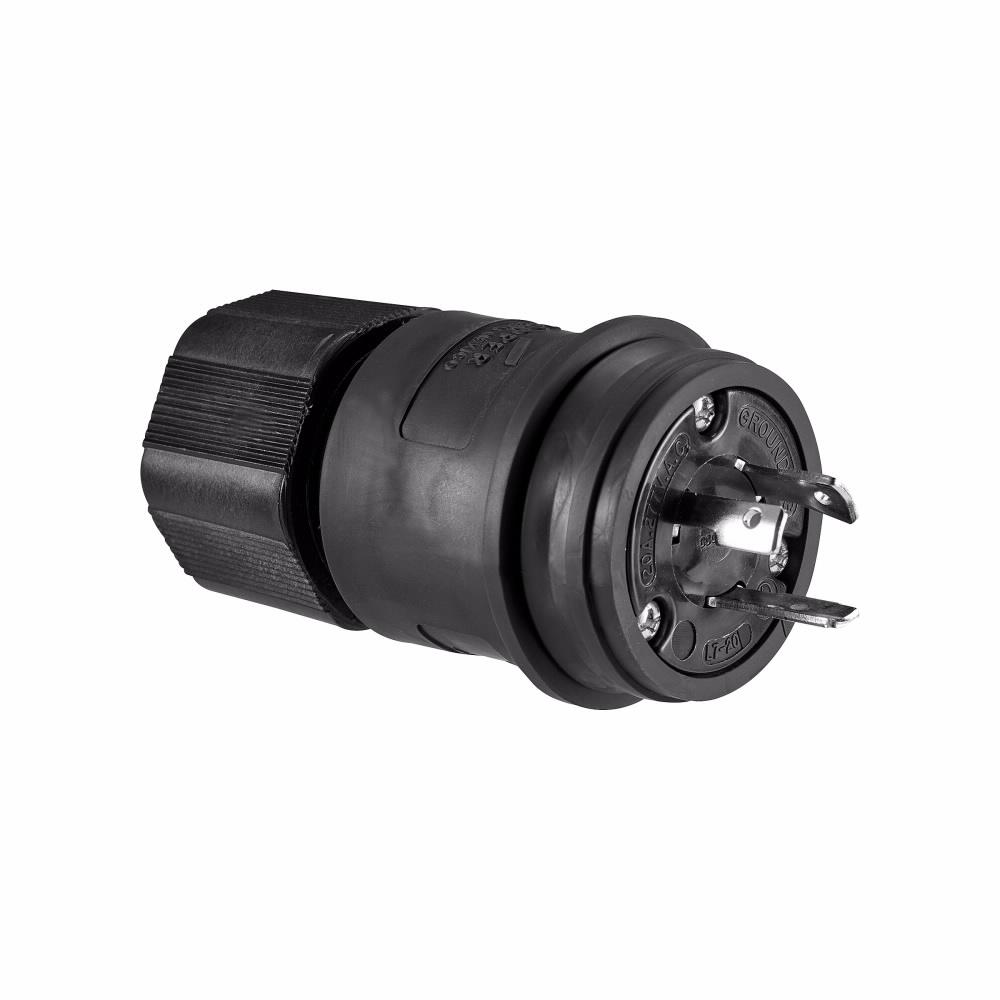

EATON Arrow Hart® L730PWBK Complex Environment Grounding Watertight Locking Plug, 277 VAC, 30 A, 2 Poles, 3 Wires, Black

  • Manufacturers: Eaton
  • Brand Name: EATON
  • MPN: L730PWBK
  • UPC:032664709647
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Arrow Hart® Locking Plug, Complex Environment Grounding Watertight, 277 VAC, 30 A, 2 Pole, 3 Wires, NEMA L7-30 NEMA Rating, Industrial/Specification Grade, IP67/NEMA 4/4X/6/6P Enclosure, 0.43 to 1.15 in Diameter Cord, -40 to 167 deg F, Screw Terminal, Nylon/Santoprene Thermoplastic Elastomeric, Black, 6-3/4 in L x 4-1/4 in W x 3-3/4 in H

Amperage Rating      :      30 A
Color      :      Black
Cord Diameter      :      0.43 to 1.15 in
Dimensions      :      6-3/4 in L x 4-1/4 in W x 3-3/4 in H
Enclosure      :      IP67/NEMA 4/4X/6/6P
Grade      :      Industrial/Specification
Material      :      Nylon/Santoprene Thermoplastic Elastomeric
NEMA Rating      :      NEMA L7-30
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -40 to 167 deg F
Terminal Type      :      Screw
Type      :      Complex Environment Grounding Watertight
Voltage Rating      :      277 VAC
  • Nickel plated blades, contacts and terminal screws provide corrosion resistance
  • Tri-combo stainless steel assembly screws provide corrosion resistance
  • Tapered individual wire pockets guide stranded wire into contact area for ease of installation
  • Innovative sealing system provides multipoint watertight seal
  • Glass reinforced polypropylene interior and Santoprene™ elastomeric exterior molded together for watertight seal and rugged support
  • Santoprene™ grommet ensures a watertight seal
  • Utilize a unique, robust design and superior materials to provide watertight security in harsh environments
  • Thermoplastic elastomeric exterior out performs rubber when exposed to moisture, chemicals, oils and the effects of UV exposure and ozone attack
  • Meets NEMA and IEC IP ratings and withstands water spray test at 1000 psi
  • High visibility safety yellow for identification
  • Power contacts, blades and terminal screws nickel plated for corrosion resistance
  • Quick drive stainless steel assembly screws for corrosion resistance and fast installation
  • Color coded neoprene grommets for a watertight seal on a wide range of cord sizes
