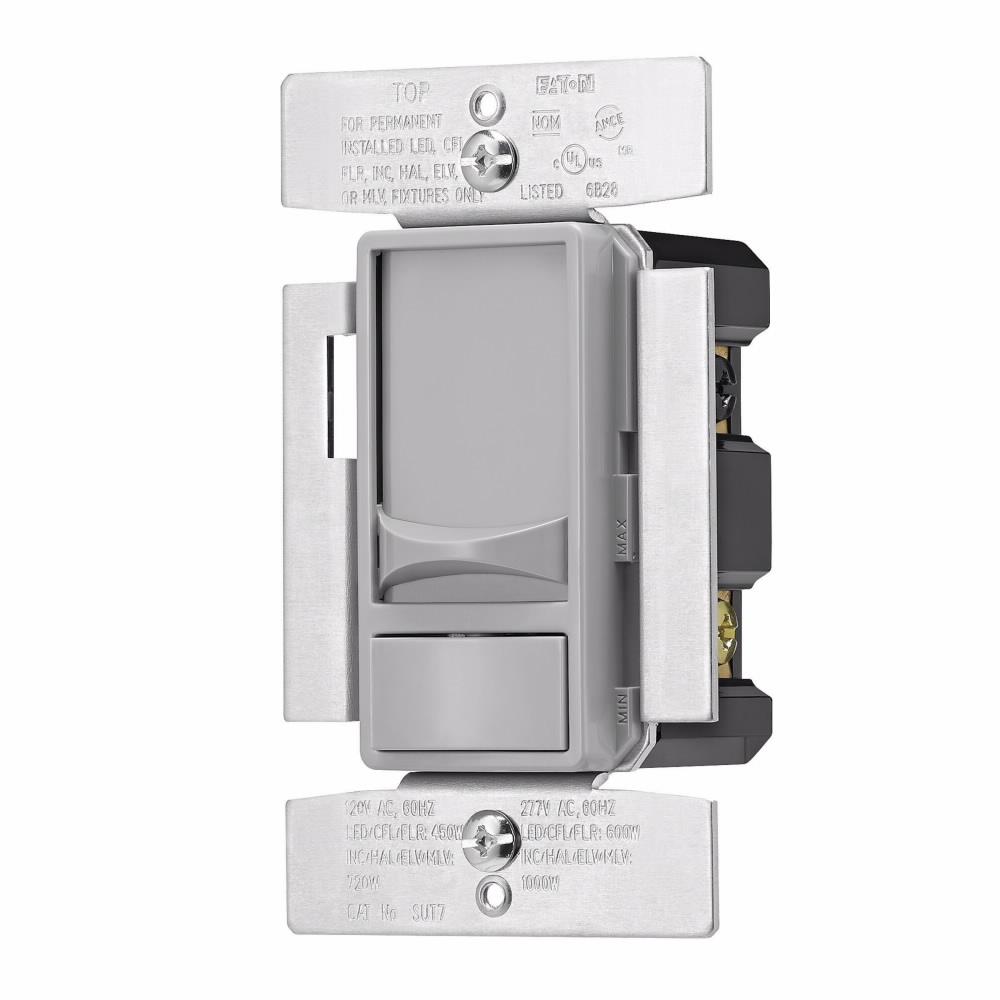

EATON SUT7-GY SUT7 Universal Slide Dimmer, 120/277 VAC, 1 Poles, 3-Way Operation, Gray

  • Manufacturers: Eaton
  • Brand Name: EATON
  • MPN: SUT7-GY
  • UPC:032664748592
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Using the latest in dimming technology, Eaton's dimmers let you adjust the level of your lighting at the light switch, so you can bring the right look to the room and save money at the same time. That s because lighting controls reduce the amount of electricity used by your lights, which saves electricity, reduces utility bills and extends the life of the bulb. Eaton's lighting controls are compatible with most common lighting loads, including LED, CFL, MLV, ELV and Fluorescent; and they come in multiple styles and colors, you can select the perfect dimmer for every room in your home or commercial building.

EATON Universal Slide Dimmer, Series: SUT7, 120/277 VAC, 1000 W Power, 60 Hz Frequency, 1 Pole, Incandescent/Halogen/MLV/ELV Lamp, Operation Mode: 3-Way, Flush Mounting, Back/Side Wire Terminal, 20 to 70 deg C, Polycarbonate, Gray, 4.2 in H Dimensions

Color      :      Gray
Dimensions      :      4.2 in H
Frequency Rating      :      60 Hz
Lamp Type      :      Incandescent/Halogen/MLV/ELV
Material      :      Polycarbonate
Mounting Type      :      Flush
Number of Poles      :      1
Operation Mode      :      3-Way
Power Rating      :      1000 W
Series      :      SUT7
Temperature Rating      :      20 to 70 deg C
Terminal Type      :      Back/Side Wire
Voltage Rating      :      120/277 VAC
  • Dual rated for 120V/AC and 277 VAC
  • Preset feature allows user to return to previous light level when turning lights ON
  • Universal dimming of most common phase-cut dimmable lighting loads (No MLV)
  • Integrated full-slide control for easy, precise operation
  • Device can be wired into either three-way location (load side or line side)
  • Adjustable low-level trim setting for optimal lamp compatibility
  • Radio frequency interference filtering is standard on all models
  • Neutral is not required for installation of device
  • Electrostatic discharge protection
  • Precise color matching
  • Compatible with any decorator wallplate or screwless decorator wallplate
