93896-BOX
EATON
https://www.billows.com/3409769/product/CWD93896BOX
https://www.billows.com/3409769/product/CWD93896BOX
CWD93896BOX

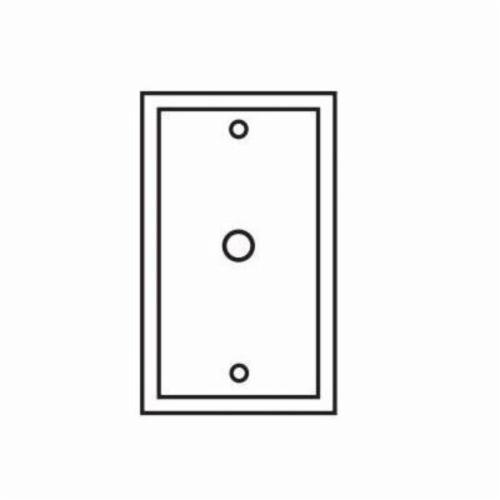

EATON Arrow Hart™ Eaton Wiring Devices 93896-BOX Oversized Standard Grade Combination Decorator Wallplate With 3/8 in Hole, 1 Gangs, 7.17 in W, 302/304 Stainless Steel, Surface Mount
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWD93896BOX
- MPN: 93896-BOX
- UPC:032664538506
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Our extensive line of wallplates is designed and manufactured to perform in a wide range of applications, no matter what you need, you'll find the desired material, configuration, size and color. Their heavy duty construction provides outstanding performance throughout a home. Available in 1 through 6-gang configurations.
EATON Arrow Hart™ Eaton Wiring Devices Combination Decorator Wallplate, Oversized Standard Grade, 1 Gangs, 7.17 in Width, 0.032 in Thickness, Coaxial/Telephone Connector, 1 Ports, Surface Mounting, 302/304 Stainless Steel, Satin Brushed
| Connector Type | : | Coaxial/Telephone |
| Finish | : | Satin Brushed |
| Material | : | 302/304 Stainless Steel |
| Mounting Type | : | Surface |
| Number of Gangs | : | 1 |
| Number of Ports | : | 1 |
| Thickness | : | 0.032 in |
| Type | : | Oversized Standard Grade |
| Width | : | 7.17 in |
- Superior non-corrosive and non-magnetic properties for applications needing protection from those elements
- Stainless steel alloy contains 18% chromium and 8% nickel for corrosion-resistance
- Stamped from 0.032 in THK material
- Horizontally satin brushed surface finish resists finger prints
- All plates are coated with clear, removable PVC to safeguard the surface during handling and installation
- Matching stainless steel mounting screws provided
- -40 to 90 deg C temperature rating
- Stamped construction
Specification Sheet
