7409N EATON
EATON 7409N CWD7409N
Send Print
  1. pin-int

CWD7409N

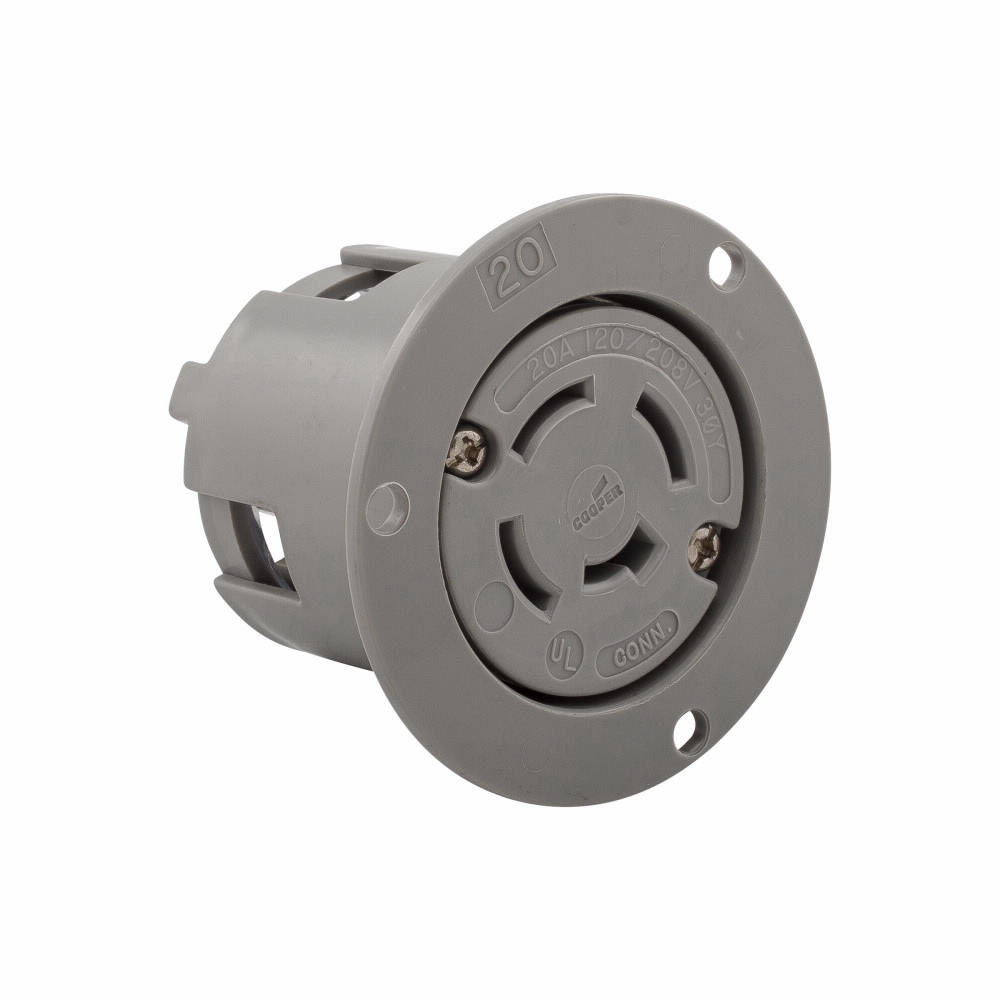

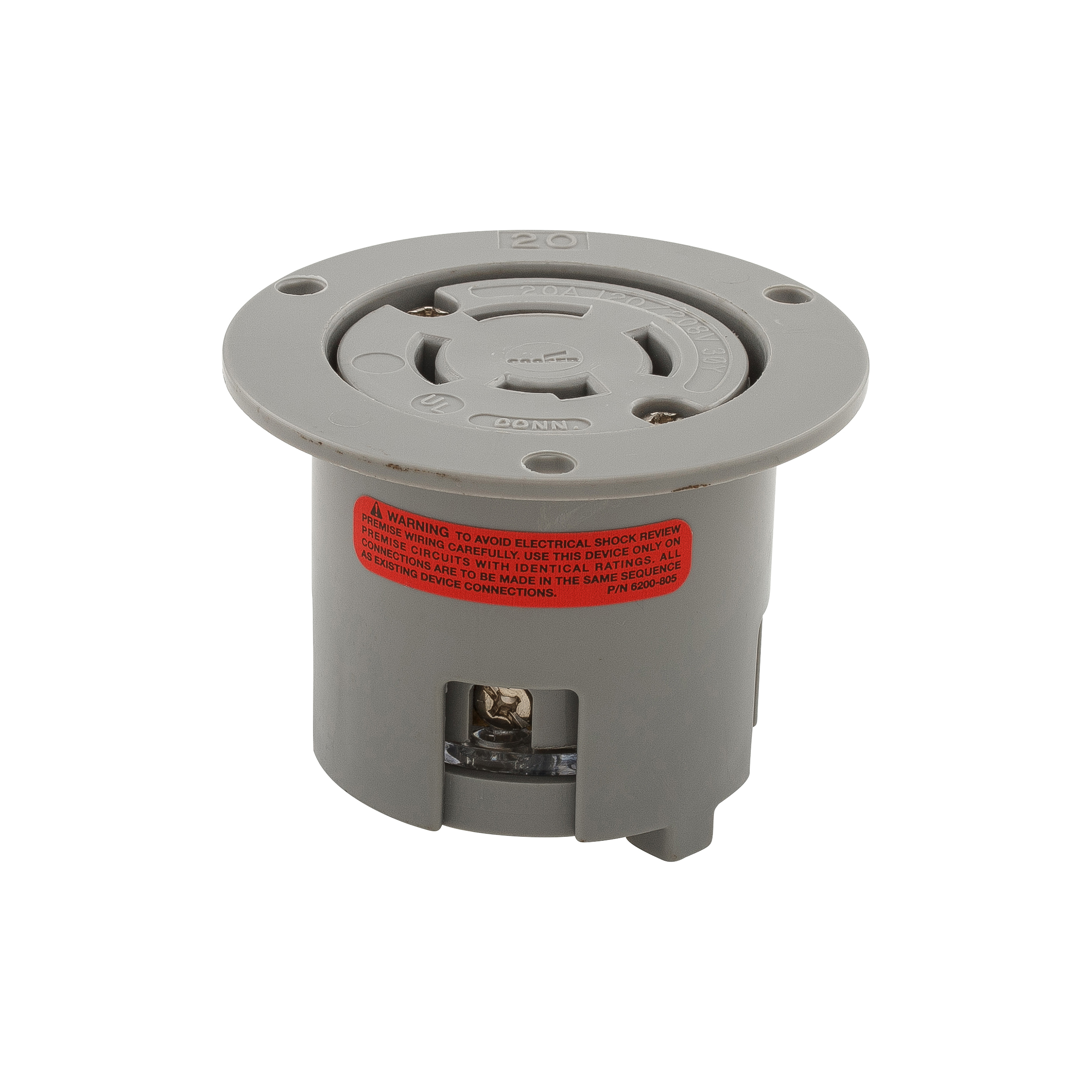

EATON Arrow Hart® Hart-Lock® 7409N Flanged Outlet Locking Flanged Outlet, 120/208 V, 20 A, 4 Poles, 4 Wires, Gray

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD7409N
  • MPN: 7409N
  • UPC:040893681115
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Arrow Hart® Hart-Lock® Locking Flanged Outlet, Flanged Outlet, 120/208 V, 20 A, 4 Pole, 4 Wires, Industrial Grade, Back Wire Terminal, Nylon, Gray

Amperage Rating      :      20 A
Color      :      Gray
Grade      :      Industrial
Material      :      Nylon
Number of Poles      :      4
Number of Wires      :      4
Terminal Type      :      Back Wire
Type      :      Flanged Outlet
Voltage Rating      :      120/208 V
  • 14 to 8 AWG wire
  • Nylon housing
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c000da21d74812a91d6f7ded180d100bf87d24625a3f2c368da147db3efb894c.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_72ccd681c600b06694d9b9f19175b0422dee6a043b8b7ca992ca309c2f04f586.pdf
