TR7756LA-BOX EATON
EATON TR7756LA-BOX CWDTR7756LABOX
Send Print
  1. pin-int

CWDTR7756LABOX

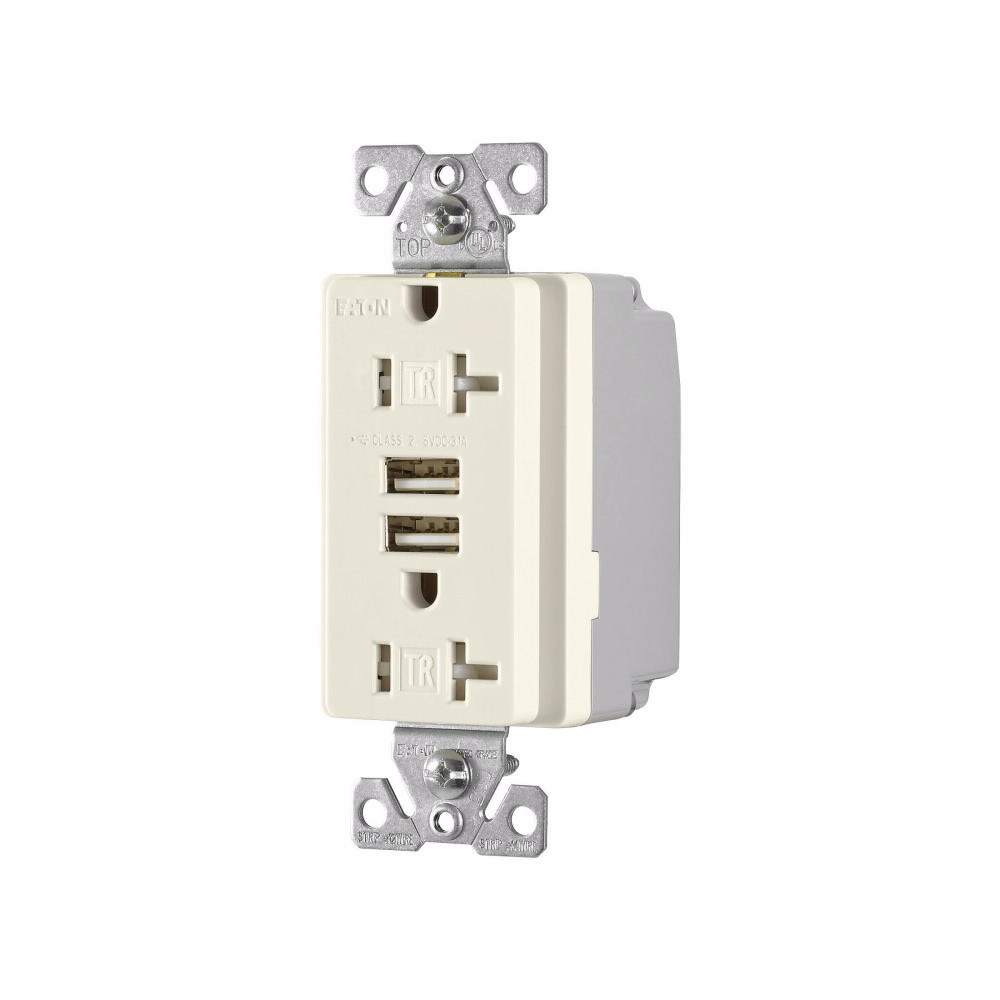

EATON TR7756LA-BOX Combination Grounding USB Charger With Tamper-Resistant Duplex Decorator Receptacle, 15 A at 125 VAC, 2 Poles, 3 Wires, Light Almond

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDTR7756LABOX
  • MPN: TR7756LA-BOX
  • UPC:032664741586
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON USB Charger, Combination Grounding, 15 A at 125 VAC Electrical Rating, 2 Pole, 3 Wires, 3.1 A at 5 VDC USB, 2.75 in L x 2 in W x 4.36 in H Size, Flush Mounting, Commercial Grade, Wiring Method: Lead Wire, Thermoplastic, Light Almond

Color      :      Light Almond
Electrical Ratings      :      15 A at 125 VAC
Grade      :      Commercial
Material      :      Thermoplastic
Mounting      :      Flush
Number of Poles      :      2
Number of Wires      :      3
Size      :      2.75 in L x 2 in W x 4.36 in H
Type      :      Combination Grounding
USB Rating      :      3.1 A at 5 VDC
Wiring Method      :      Lead Wire
  • Brass contact
  • NEMA 5-20R rated
