CWD1234BOX

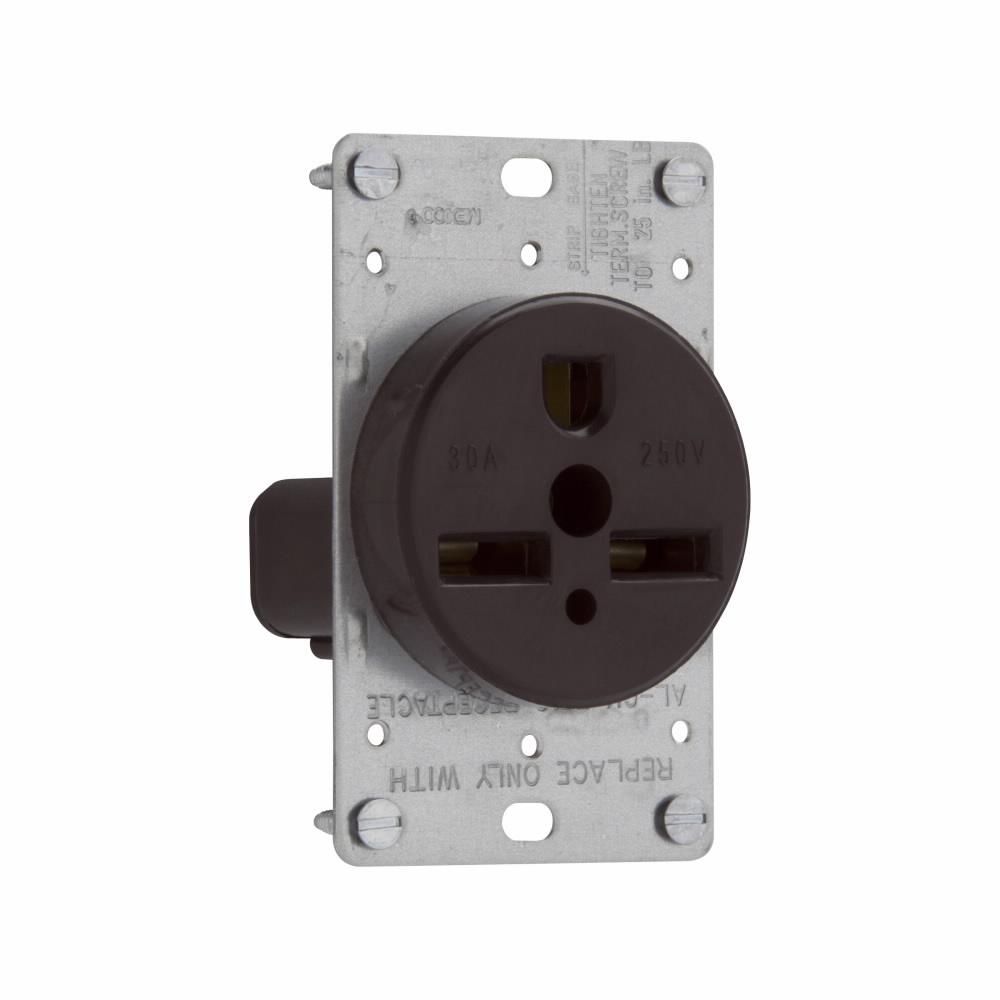

EATON Arrow Hartâ„¢ Eaton Wiring Devices 1234-BOX Single Straight Blade Receptacle, 250 VAC, 30 A, 2 Poles, 3 Wires, Black
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWD1234BOX
- MPN: 1234-BOX
- UPC:32664306303
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Commercial and industrial power receptacles 30 A, 250 VAC NEMA 6-30 2-pole 3-wire. Heavy duty design and construction make Arrow Hart™ power devices ideal for any high amperage industrial or commercial power connectivity application.
EATON Arrow Hartâ„¢ Eaton Wiring Devices Straight Blade Receptacle, Single, 250 VAC, 30 A, 2 Pole, 3 Wires, NEMA 6-30R NEMA Rating, Commercial Grade, Screw Terminal, Glass Reinforced Nylon, Black, 3.28 in H x 2.5 in W x 1.81 in D Dimensions
| Amperage Rating | : | 30 A |
| Color | : | Black |
| Dimensions | : | 3.28 in H x 2.5 in W x 1.81 in D |
| Grade | : | Commercial |
| Material | : | Glass Reinforced Nylon |
| NEMA Rating | : | NEMA 6-30R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Terminal Type | : | Screw |
| Type | : | Single |
| Voltage Rating | : | 250 VAC |
- Flush receptacles feature heavy gauge galvanized steel mounting strap and glass reinforced nylon body
- Patented lay-in terminals accept up to 4 AWG wire
- Back features concentric knockouts and an adjustable cord clamp to allow wiring from back or bottom
- High-strength glass reinforced nylon
- Flush mounting
- 4 AWG wire
