CWDTR2709W

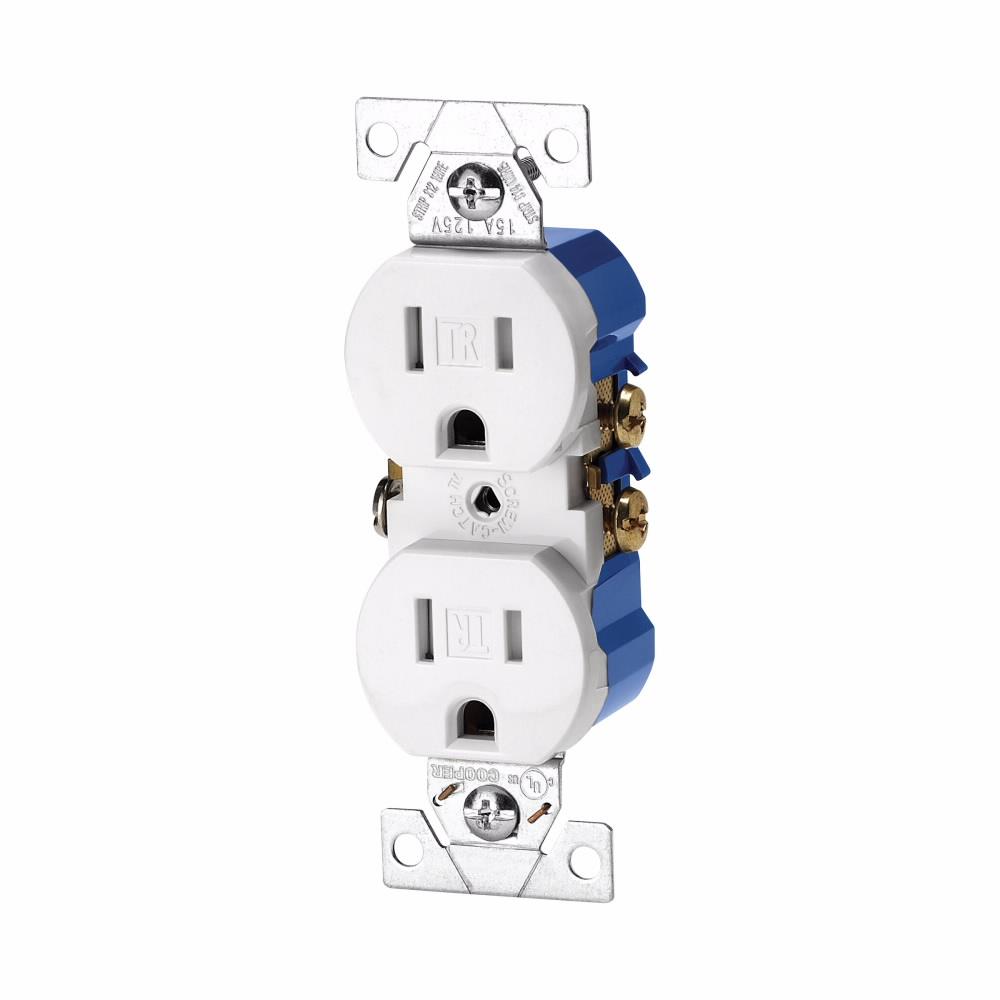

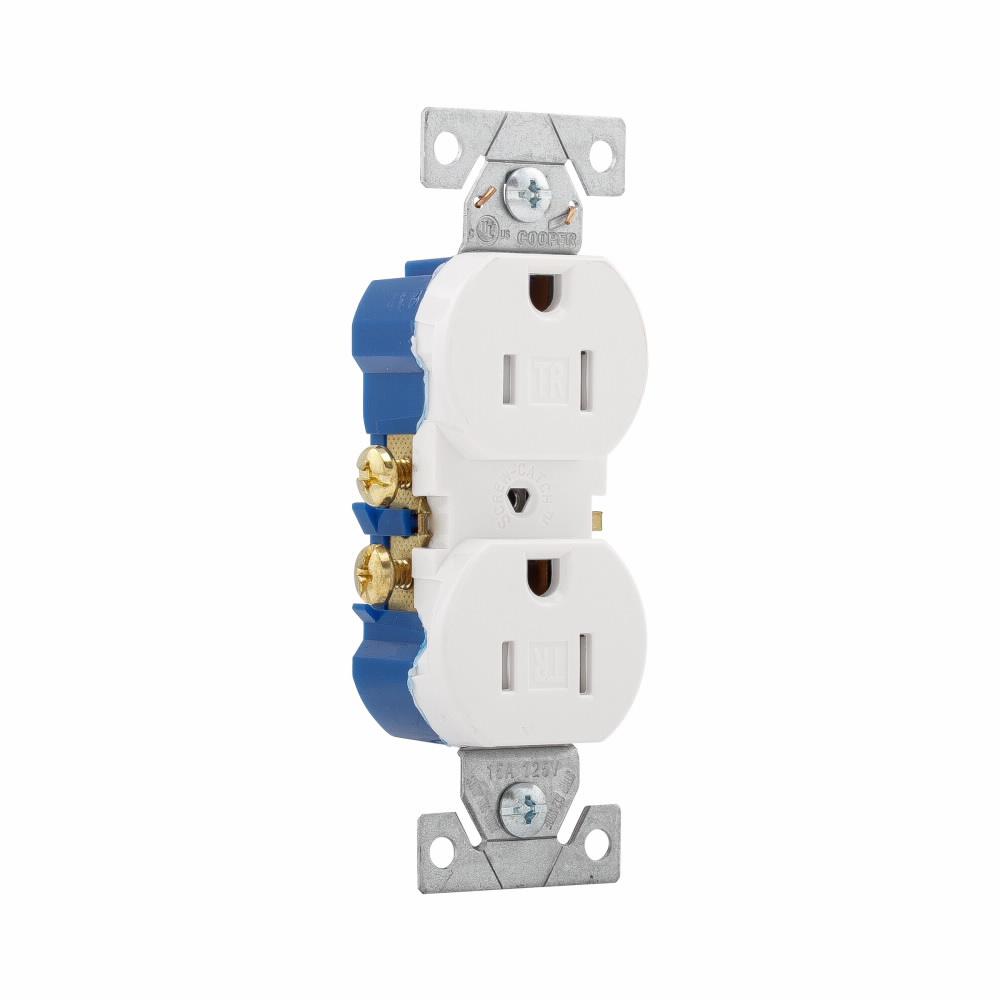

EATON Arrow Hart® TR270-9W TR270 Auto Grounding Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWDTR2709W
- MPN: TR270-9W
- UPC:032664666483
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Tamper resistant duplex receptacles with auto-ground provide compliance with 2011 NEC Article 406.12 that states that all receptacles installed in dwelling units must be tamper resistant. Durable impact resistant thermoplastic face and back body is virtually unbreakable. "TR" designation provides visual identification. Terminal screws are backed out and ready to wire. Extra long and extra wide mounting straps with patented built-in wire stripper for 14 and 12 AWG wire to speed installation. Side wire terminals accept up to 10 AWG solid or stranded wire and push-in terminals accept 14 AWG solid wire.
EATON Arrow Hart® Straight Blade Receptacle, Auto Grounding Duplex Tamper-Resistant, Series: TR270, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential/Standard Grade, -4 to 158 deg F, Screw Terminal, Thermoplastic, White, 4.193 in H x 1.3 in W x 1.015 in D Dimensions
| Amperage Rating | : | 15 A |
| Color | : | White |
| Dimensions | : | 4.193 in H x 1.3 in W x 1.015 in D |
| Grade | : | Residential/Standard |
| Material | : | Thermoplastic |
| NEMA Rating | : | NEMA 5-15R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Series | : | TR270 |
| Temperature Rating | : | -4 to 158 deg F |
| Terminal Type | : | Screw |
| Type | : | Auto Grounding Duplex Tamper-Resistant |
| Voltage Rating | : | 125 VAC |
- Tamper resistant versions provide compliance with 2011 NEC article 406.12 that states that all receptacles installed in dwelling units must be tamper resistant
- Longer, wider strap provides 40% more contact area to wall board, virtually eliminating floating installations
- Patented built-in wire stripper for 12 and 14 AWG wire to speed installation
- Patented built-in wire looper for pre-looping
- High impact resistant thermoplastic face and back body eliminates breakage
- Double wipe ground contacts ensure long-term ground retention
- Easy access split circuit break off tab
- Tri-combo screws accept slotted, Phillips and Robertson head tools for installation flexibility
- Terminal screws are backed out and ready to wiring
- Side wire terminals accept up to 10 AWG solid wire
- Push-in terminals accept 14 AWG solid wire
