BR20RD EATON
EATON BR20RD CWDBR20RD
Send Print
  1. pin-int

CWDBR20RD

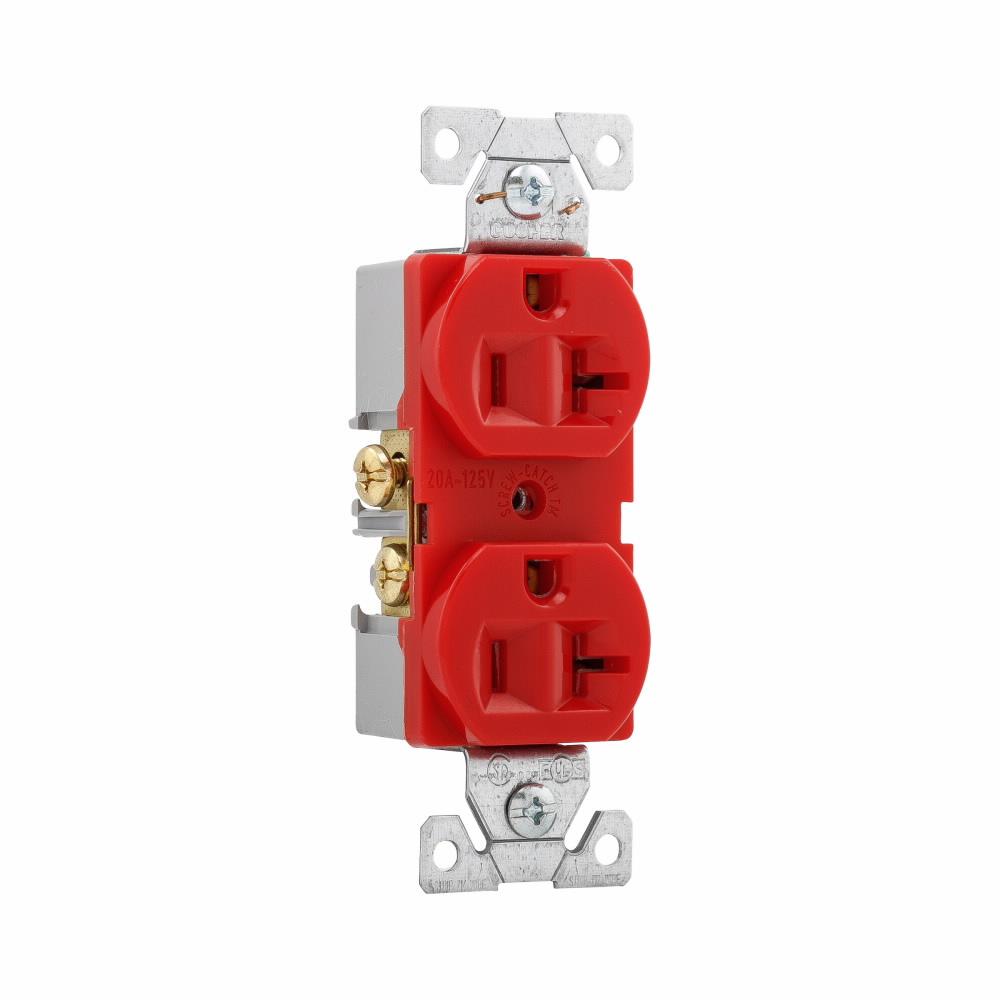

EATON Arrow Hart™ Eaton Wiring Devices BR20RD BR20 Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDBR20RD
  • MPN: BR20RD
  • UPC:032664654312
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Commercial specification grade straight blade receptacles - 20 A, 125 VAC, NEMA 5-20R. engineered for safe, reliable performance, these UL 498 and Federal Specification W-C-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Duplex Tamper-Resistant, Series: BR20, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -4 to 158 deg F, Screw Terminal, Nylon/PVC, Red, 4.19 in H x 1.3 in W x 0.82 in D Dimensions

Amperage Rating      :      20 A
Color      :      Red
Dimensions      :      4.19 in H x 1.3 in W x 0.82 in D
Grade      :      Commercial
Material      :      Nylon/PVC
NEMA Rating      :      NEMA 5-20R
Number of Poles      :      2
Number of Wires      :      3
Series      :      BR20
Temperature Rating      :      -4 to 158 deg F
Terminal Type      :      Screw
Type      :      Duplex Tamper-Resistant
Voltage Rating      :      125 VAC
  • Galvanized steel, wraparound yoke mounting strap for superior assembly security, extra length/width helps reach large panel cut-outs for code compliance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Screw catch feature on duplex devices speeds mounting of wallplates
  • Tamper-resistant receptacles provide compliance with 2014 NEC Article 406.12 that states that all 15 A and 20 A, 125 VAC receptacles installed in dwelling units must be tamper-resistant
  • 2000 VAC dielectric strength
  • Nylon face, PVC base
  • Flush mounting
  • 14 to 10 AWG wire terminal
