SDU100 EATON
EATON SDU100 CWDSDU100
Send Print
  1. pin-int

CWDSDU100

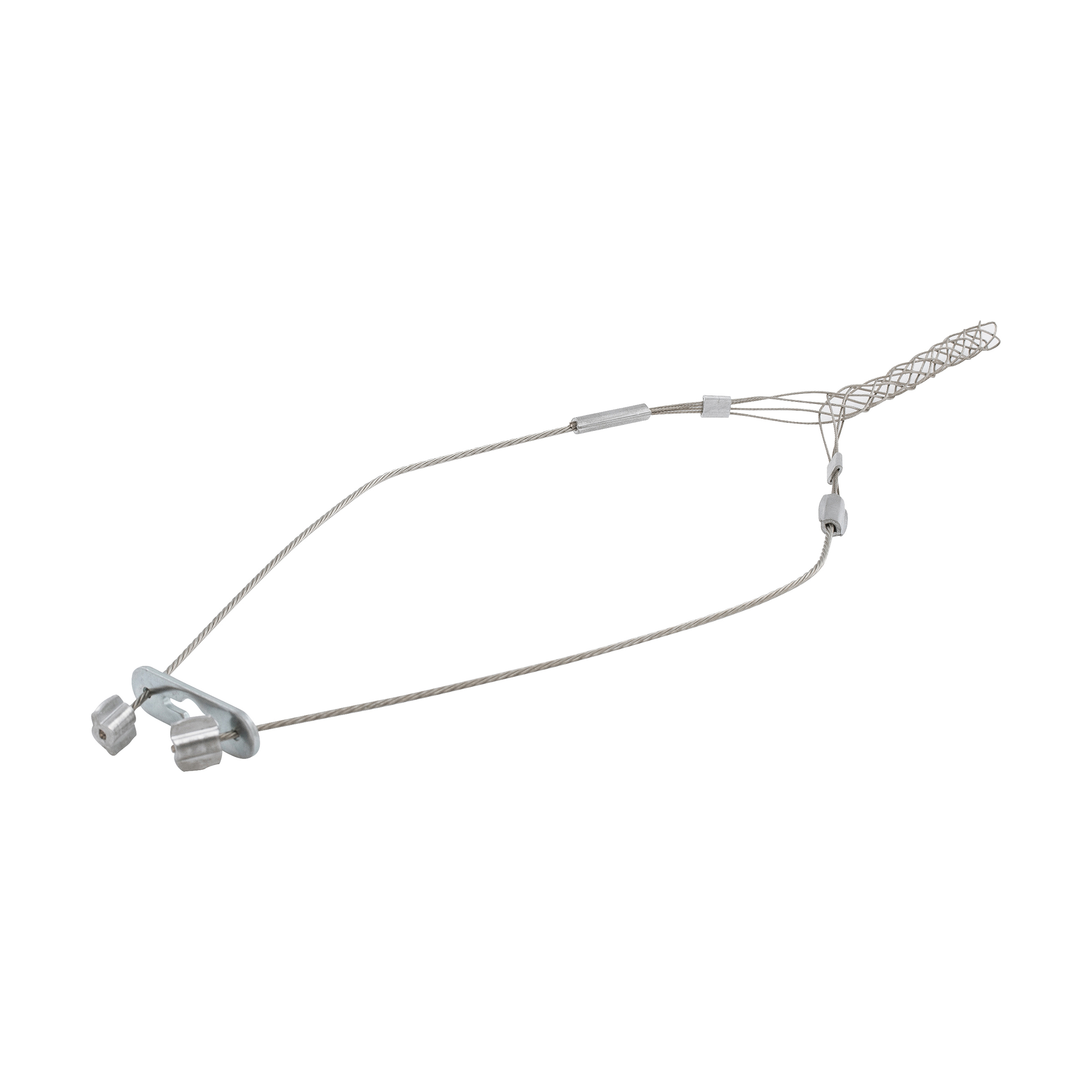

EATON Arrow Hart® SDU100 Locking Bale Eye Service Drop Closed Mesh Support Grip, 1020 lb Breaking Strength, 1 to 1-1/4 in Cable, Bronze, Tin Coated

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDSDU100
  • MPN: SDU100
  • UPC:040893652436
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's complete offering of Arrow Hart wire mesh grips is built tough for industrial applications. The broad selection of strain relief, pulling, and support grips are available in a wide range of styles and sizes to serve all of your cable protection needs.

EATON Arrow Hart® Closed Mesh Support Grip, Locking Bale Eye Service Drop, 1020 lb Breaking, 1 to 1-1/4 in Cable, 11 in Mesh Length, Bronze, Tin Coated

Breaking Strength      :      1020 lb
Cable Size      :      1 to 1-1/4 in
Finish      :      Tin Coated
Material      :      Tinned-Bronze
Mesh Length      :      11 in
Type      :      Locking Bale Eye Service Drop
  • Service drop grips provide support for utility distribution lines from service pole to building or from pole to pole
  • They are woven from tinned bronze wire to provide superior corrosion resistance and are available in single eye and locking bale configurations
  • They can also be used for cable TV and fiber optic cable support
  • Locking bale attachment fits around beam or pipe and can be locked in place
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ef6082624956178580bb03db1a9186c08e344a1c41b09573e97265c9d3202dcc.pdf
