SGO50 EATON
EATON SGO50 CWDSGO50
Send Print
  1. pin-int

CWDSGO50

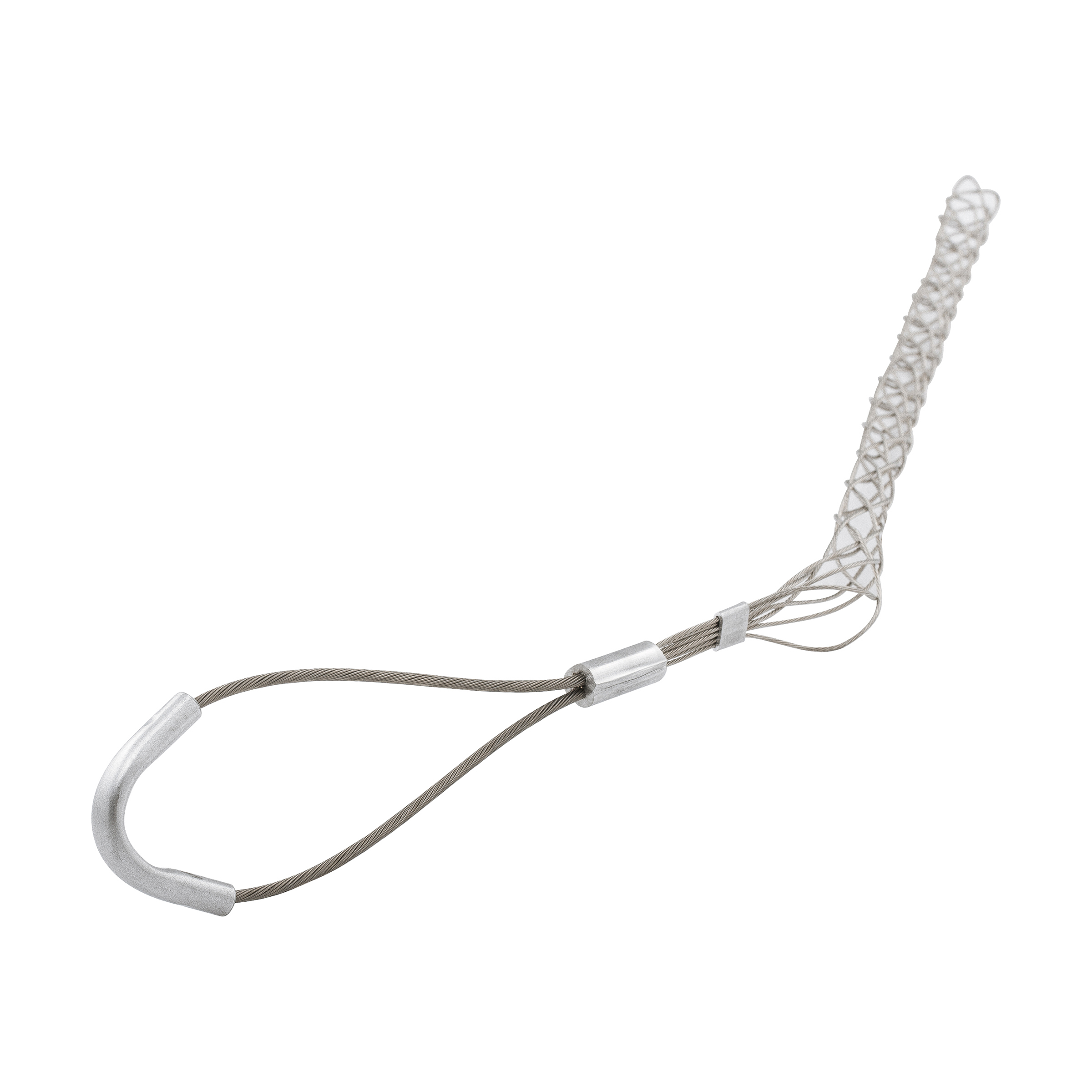

EATON Arrow Hart® SGO50 Standard Duty Offset Eye Closed Mesh Support Grip, 770 lb Breaking Strength, 0.5 to 0.61 in Cable, Bronze, Tin Coated

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDSGO50
  • MPN: SGO50
  • UPC:040893647418
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's complete offering of Arrow Hart wire mesh grips is built tough for industrial applications. The broad selection of strain relief, pulling, and support grips are available in a wide range of styles and sizes to serve all of your cable protection needs.

EATON Arrow Hart® Closed Mesh Support Grip, Standard Duty Offset Eye, 770 lb Breaking, 0.5 to 0.61 in Cable, 11 in Mesh Length, Bronze, Tin Coated

Breaking Strength      :      770 lb
Cable Size      :      0.5 to 0.61 in
Finish      :      Tin Coated
Material      :      Tin-Coated
Mesh Length      :      11 in
Type      :      Standard Duty Offset Eye
  • Support grip will hold more than one cable
  • Wire mesh is produced from high quality, non-magnetic, tin coated bronze which provides superior corrosion resistance
  • Absorbs additional strain from vibration, expansion, contraction and flexing
  • Offset eye for use when offset positioning is required
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a7d7c266e954c8e8c7e50f41e663aa624e80e94d0e35aaf217423553a46b9dc3.pdf
