CWDBR15V

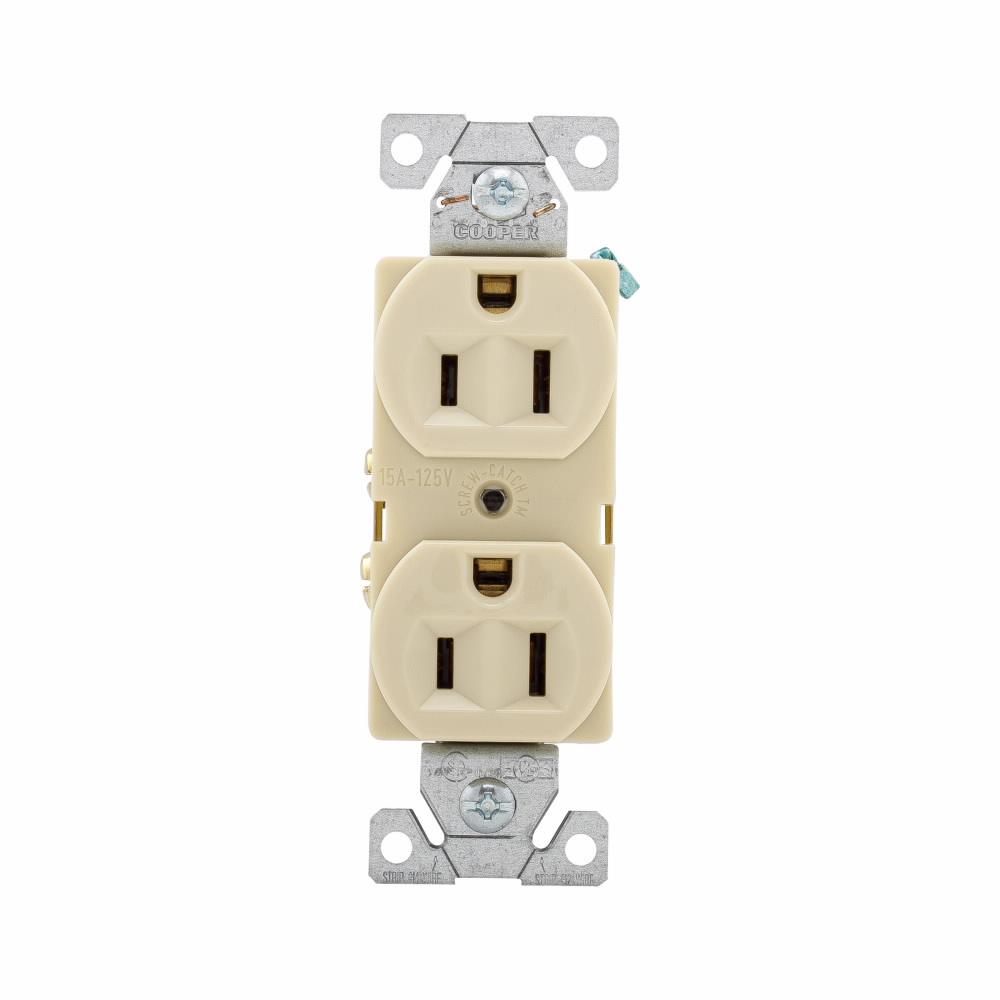

EATON Arrow Hart® BR15V Auto Grounding Duplex Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWDBR15V
- MPN: BR15V
- UPC:032664750694
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Commercial specification grade straight blade receptacles 15 A, 125 VAC, NEMA 5-15R. Engineered for safe, reliable performance, these UL 498 and federal specification WC-596 Listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
EATON Arrow Hart® Straight Blade Receptacle, Auto Grounding Duplex, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -20 to 70 deg C, Back/Side Wire Terminal, Nylon/PVC, Ivory, 4.19 in H x 0.82 in D Dimensions
| Amperage Rating | : | 15 A |
| Color | : | Ivory |
| Dimensions | : | 4.19 in H x 0.82 in D |
| Grade | : | Commercial |
| Material | : | Nylon/PVC |
| NEMA Rating | : | NEMA 5-15R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Temperature Rating | : | -20 to 70 deg C |
| Terminal Type | : | Back/Side Wire |
| Type | : | Auto Grounding Duplex |
| Voltage Rating | : | 125 VAC |
- Galvanized steel wrap around yoke mounting strap for superior assembly security, extra length/width helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
- Screw catch feature on device speeds mounting of wallplates
- Tamper resistant receptacles provide compliance with 2014 NEC Article 406.12 that states that all 15 and 20 A, 125 VAC receptacles installed in dwelling units must be tamper resistant
- Flush mounting
- Indoor environmental conditions
- Nylon face, PVC base
