Hospital specification grade straight blade receptacles - premium back wire and side wire. Arrow Hart™ feature rich line of hospital grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification W-C-596 to provide a consistent means of connectivity where downtime can be critical.

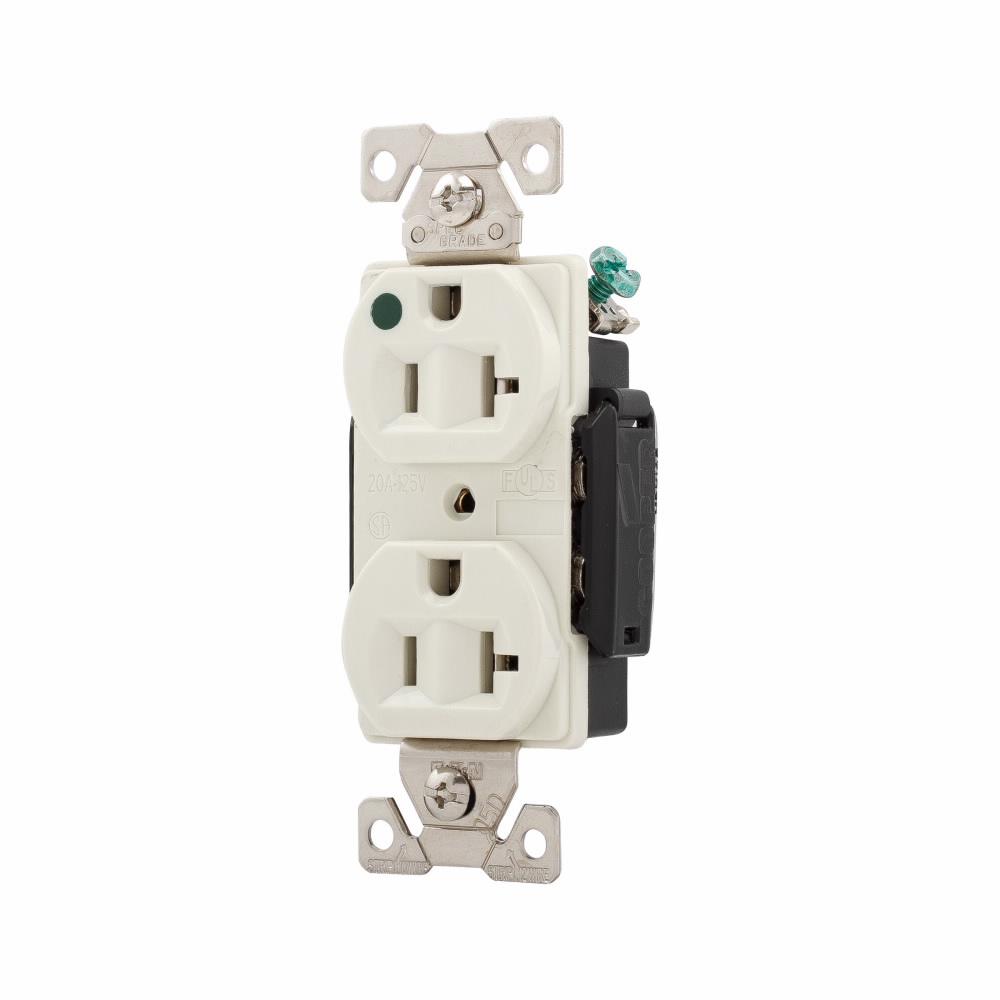

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Duplex Premium, Series: AH8300, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial/Hospital Grade, -4 to 158 deg F, Screw Terminal, Glass Filled Nylon, Light Almond, 4.19 in H x 1.3 in W x 0.88 in D Dimensions

• Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
• Exclusive 5-leaf solid brass line contacts provides consistent performance and superior plug retention
• 0.05 in (1.27 mm) solid brass mounting strap with non-riveted, integral 1-piece grounding system for highest durability assures superior ground integrity under heaviest use
• Rigid, glass reinforced nylon base lends ultimate strength and superior high heat resistance in contact carrier
• Tapered back wiring lead-in slots assist in gathering stranded wires for faster, more secure connections
• All terminal and mounting screws Triple-combination (slot/Phillips®/Robertson) head for maximum installer flexibility
• Long, broad mounting strap helps reach large panel cut-outs for code compliance
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
• Nylon face, glass filled nylon base
• 14 to 10 AWG wire terminal

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6ba91e7f876129ec92e4a9845198ba9b93e8691876a1f844ad08042b2c752ecf.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3b099f9709856b2307fe0d0c26aca5a6456e3bec19625da9d534814364331e1d.pdf
