SA540GD EATON
EATON SA540GD CWDSA540GD
Send Print
  1. pin-int

CWDSA540GD

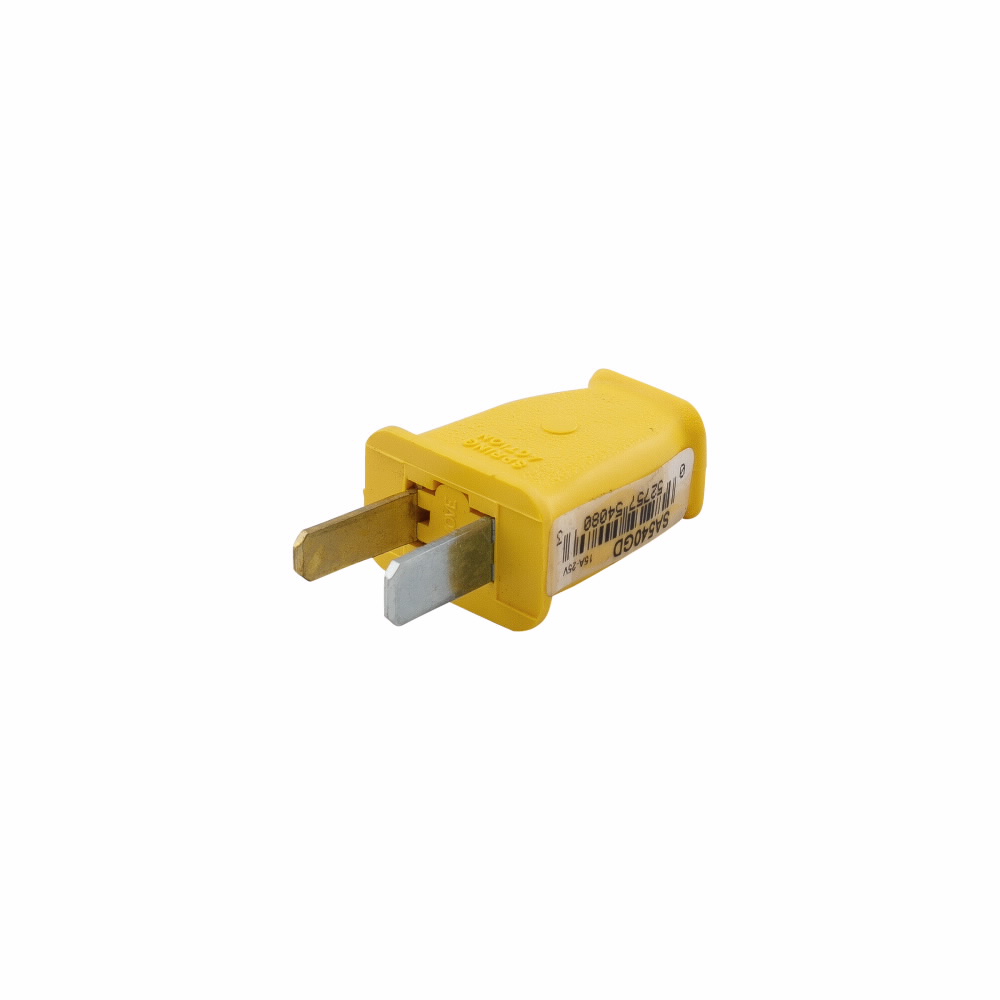

EATON SA540GD Straight Blade Plug With Spring Action, 125 V, 15 A, 2 Poles, 2 Wires, Translucent Gold

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDSA540GD
  • MPN: SA540GD
  • UPC:052757540803
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Straight Blade Plug, 125 V, 15 A, 2 Pole, 2 Wires, NEMA 1-15P NEMA Rating, Standard Grade, 0.33 in Diameter Cord, -20 to 60 deg C, Plug Terminal, Thermoplastic, Translucent Gold, 1.37 in L x 1.16 W x 0.75 in H Dimensions

Amperage Rating      :      15 A
Color      :      Translucent Gold
Cord Diameter      :      0.33 in
Dimensions      :      1.37 in L x 1.16 W x 0.75 in H
Grade      :      Standard
Material      :      Thermoplastic
NEMA Rating      :      NEMA 1-15P
Number of Poles      :      2
Number of Wires      :      2
Temperature Rating      :      -20 to 60 deg C
Terminal Type      :      Plug
Type      :      Plug
Voltage Rating      :      125 V
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9ea33465acf76c341b4089dfd3bb572ca355c5a16b8619cf0496be0865d57c94.pdf
