CWDAH1224GY

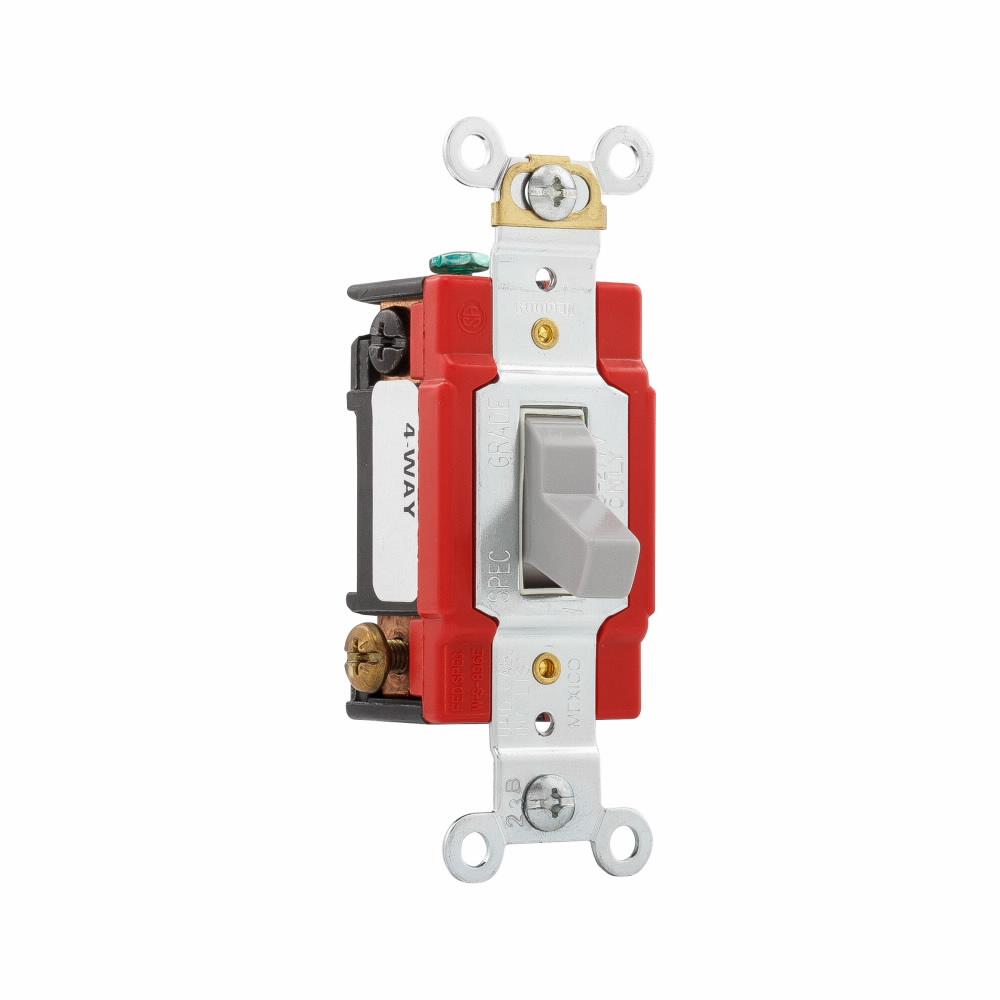

EATON Arrow Hart AH1224GY 4-Way Premium Automatic Grounding Toggle Switch, 120/277 V, 20 A, 1 hp Power Rating
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWDAH1224GY
- MPN: AH1224GY
- UPC:032664734892
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Industrial grade toggle switches incorporate the most durable design elements in the industry and are horsepower rated to handle motor loads. Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections. Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure. Ground screw terminal standard. 0.05 in THK steel mounting strap zinc plated for corrosion resistance. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications. Combination slot/Phillips® head mounting and terminal screws ease installation with power screwdrivers (slot/robertson screws in Canada where available). Tri-combo screws.
EATON Arrow Hart Toggle Switch, 4-Way Premium Automatic Grounding, 120/277 V, 20 A, 1 hp Power, 1 Pole, Toggle Actuator, Wall Mounting, Screw Terminal, 30000 Cycles Operating Cycles, Polycarbonate, Gray, Environmental Conditions: -4 to 140 deg F Operating Temperature, 1.31 in W x 1.05 in D x 3.28 in H Dimensions
| Actuator | : | Toggle |
| Amperage Rating | : | 20 A |
| Color | : | Gray |
| Dimensions | : | 1.31 in W x 1.05 in D x 3.28 in H |
| Environmental Conditions | : | -4 to 140 deg F Operating Temperature |
| Material | : | Polycarbonate |
| Mounting | : | Wall |
| Number of Poles | : | 1 |
| Operating Cycles | : | 30000 Cycles |
| Power Rating | : | 1 hp |
| Terminal Type | : | Screw |
| Type | : | 4-Way Premium Automatic Grounding |
| Voltage Rating | : | 120/277 V |
- Color-coded faces identify amperage
- 14 to 10 AWG terminal accommodation
- 1 hp at 120 VAC, 2 hp at 240 VAC
- 2.4 in L screw to screw
- Nylon toggle
