Copper/aluminum toggle switches for direct connection to aluminum or copper wire. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Side wire terminals accept up to #10 solid or stranded copper wire and up to 10 AWG solid aluminum wire. Terminal screws backed out - ready for wiring. Combination slot/Phillips® head mounting and terminal screws ease installation (slot/Robertson screws in Canada where available).

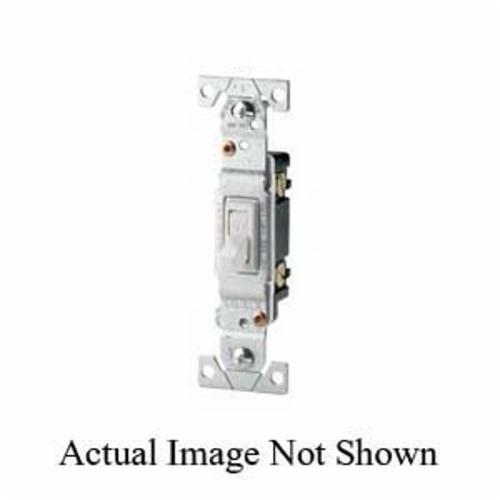

EATON Arrow Hart Toggle Switch, 3-Way Grounding Standard Grade, 120 V, 15 A, 1/2 hp Power, 1 Pole, Framed Toggle Actuator, Wall Mounting, Side Wire/Screw Terminal, Polycarbonate, White, Environmental Conditions: -40 to 65 deg C Operating Temperature, 0.75 in W x 0.88 in D Dimensions

• Long, broad mounting strap virtually eliminates floating installations
• Industrial design cam action mechanism ensures quiet switch action
• Side wire terminals accept up to 10 AWG solid copper wire and up to 10 AWG solid aluminum wire
• Terminal screws are backed out and ready to wire
• Patented built-in wire stripper for 14 and 12 AWG wire to speed installation
• Combination slot/Phillips® head mounting and terminal screws ease installation (slot/Robertson screws in Canada where available)
• For direct connection to aluminum or copper wire
• 3.28 in L screw to screw
• 2.13 in L back
