L720CW EATON
EATON L720CW CWDL720CW
Send Print
  1. pin-int

CWDL720CW

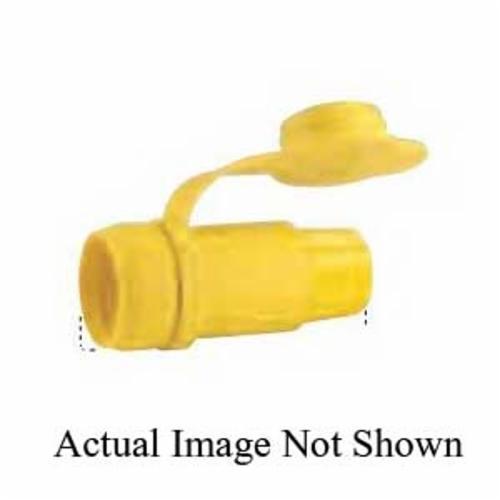

EATON Arrow Hart™ Hart-Lock® L720CW Grounding Watertight Locking Connector, 277 VAC, 20 A, 2 Poles, 3 Wires, Yellow

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDL720CW
  • MPN: L720CW
  • UPC:040893641843
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Hart-Lock® industrial specification grade locking devices watertight plug and connector 20 A, 277 VAC/AC NEMA L7-20 2-pole 3-wire. Superior design and performance make arrow Hart™ Hart-Lock® devices the ideal choice for industrial applications. Available in a wide range of NEMA and Non-NEMA configurations.

EATON Arrow Hart™ Hart-Lock® Locking Connector, Grounding Watertight, 277 VAC, 20 A, 2 Pole, 3 Wires, NEMA L7-20 NEMA Rating, Industrial Grade, IP67 Enclosure, 0.36 to 0.84 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Santoprene™ TPE, Yellow, 2.49 in Dia x 5.42 in H Dimensions

Amperage Rating      :      20 A
Color      :      Yellow
Cord Diameter      :      0.36 to 0.84 in
Dimensions      :      2.49 in Dia x 5.42 in H
Enclosure      :      IP67
Grade      :      Industrial
Material      :      Santoprene™ TPE
NEMA Rating      :      NEMA L7-20
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -40 to 75 deg C
Terminal Type      :      Screw
Type      :      Grounding Watertight
Voltage Rating      :      277 VAC
  • Nickel plated contacts, blades and terminal screws provide corrosion-resistance
  • Quick-drive Tri-combo stainless steel assembly screws provide corrosion-resistance and fast assembly
  • Tapered individual wire pockets guide wire into contact area for ease of installation
  • Innovative sealing system provides multipoint watertight seal
  • 18 to 10 AWG wire
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_951a93b570d1aa96734b066a1891b095a5a189709f70bba22bd9abf5614f0712.pdf
