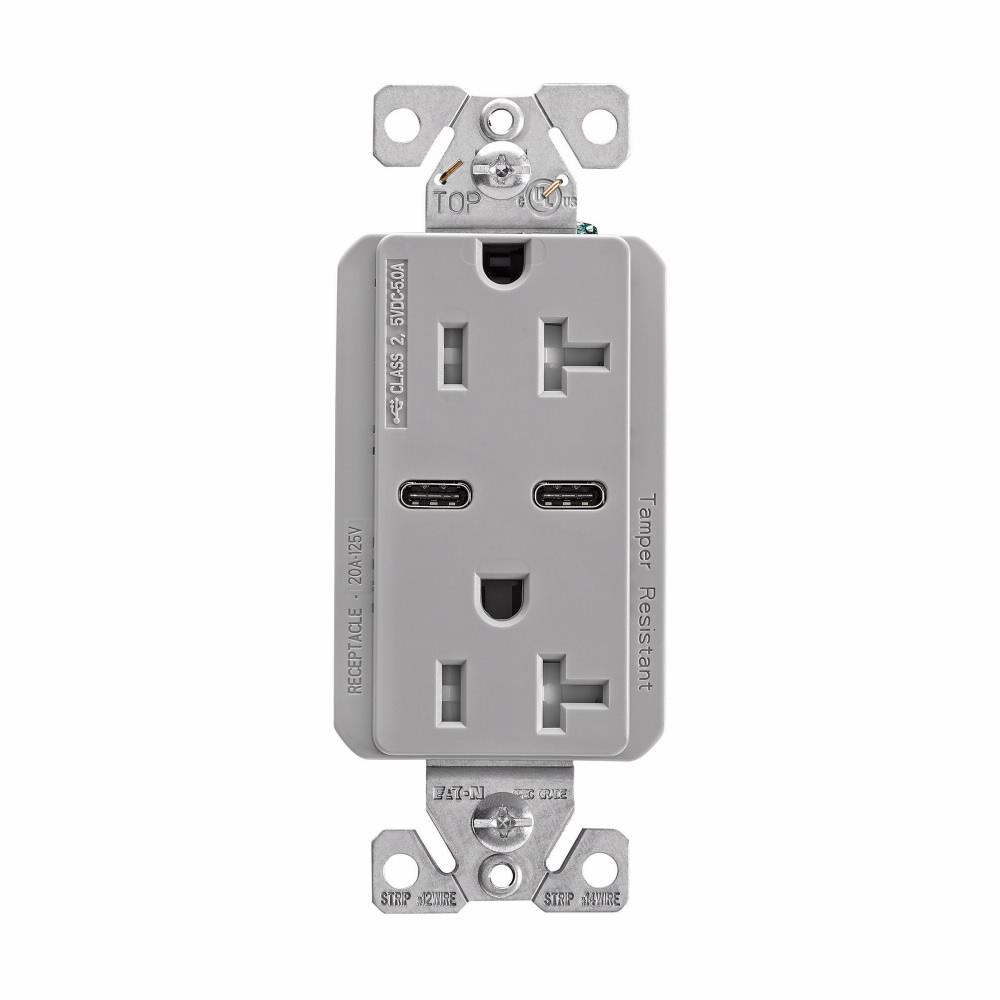

EATON TRUSBC20GY-BOX Decorator High Power Combination USB Charging Device With Duplex Tamper-Resistant Receptacle, 20 A at 125 VAC, 2 Poles, 3 Wires, Gray

  • Manufacturers: Eaton
  • Brand Name: EATON
  • UPC:032664753398
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's USB chargers offer fast, convenient and efficient charging of portable electronic devices directly from a standard outlet without bulky adapters or powered computers. This innovative line eliminates clutter in residential and commercial environments while enabling compatibility with USB Type A and C electronics, including smart phones, tablets, e-readers, cameras, MP3 players and more.

EATON Combination USB Charging Device, Decorator High Power, 20 A at 125 VAC Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, Type-C USB, 2 USB Quantity, 5 A at 5 VDC USB, NEMA 5-15R/5-20R Insulation, 1.67 in L x 1.3 in W x 4.19 in H Size, Flush Mounting, Commercial/Healthcare/Standard Grade, Wiring Method: Back/Side Wired, Thermoplastic, Gray, Environmental Conditions: 4 to 140 deg F

Color      :      Gray
Electrical Ratings      :      20 A at 125 VAC
Environmental Conditions      :      4 to 140 deg F
Grade      :      Commercial/Healthcare/Standard
Insulation      :      NEMA 5-15R/5-20R
Material      :      Thermoplastic
Mounting      :      Flush
Number of Poles      :      2
Number of Wires      :      3
Size      :      1.67 in L x 1.3 in W x 4.19 in H
Type      :      Decorator High Power
USB Quantity      :      2
USB Rating      :      5 A at 5 VDC
USB Type      :      Type-C
Wire Size      :      14 to 10 AWG
Wiring Method      :      Back/Side Wired
  • Standard AC receptacle with (2) USB-C ports rated at a combined 5 A
  • Dual USB-C charging ports charge most electronic devices that comply with the USB-C standard
  • Replaces a standard duplex receptacle
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Thermoplastic top and back-body are virtually unbreakable to deliver years of durable performance
  • Steel mounting strap is zinc plated for added corrosion resistance
  • Convenient patented built-in wire strippers speed installation
  • Triple wipe blade contacts and double wipe ground contacts to insure long-term blade retention
