Tamper resistant decorator receptacles. Provides compliance with 2011 NEC article 406.12 that states that all receptacles installed in dwelling units must be tamper resistant. Durable impact resistant thermoplastic face and back body is virtually unbreakable. TR designation provides visual identification. Terminal screws are backed out and ready to wire. Extra long and extra wide mounting straps with patented built-in wire stripper for 14 and 12 AWG wire to speed installation. Side wire terminals accept up to 10 AWG solid or stranded wire and push-in terminals accept 14 AWG solid wire.

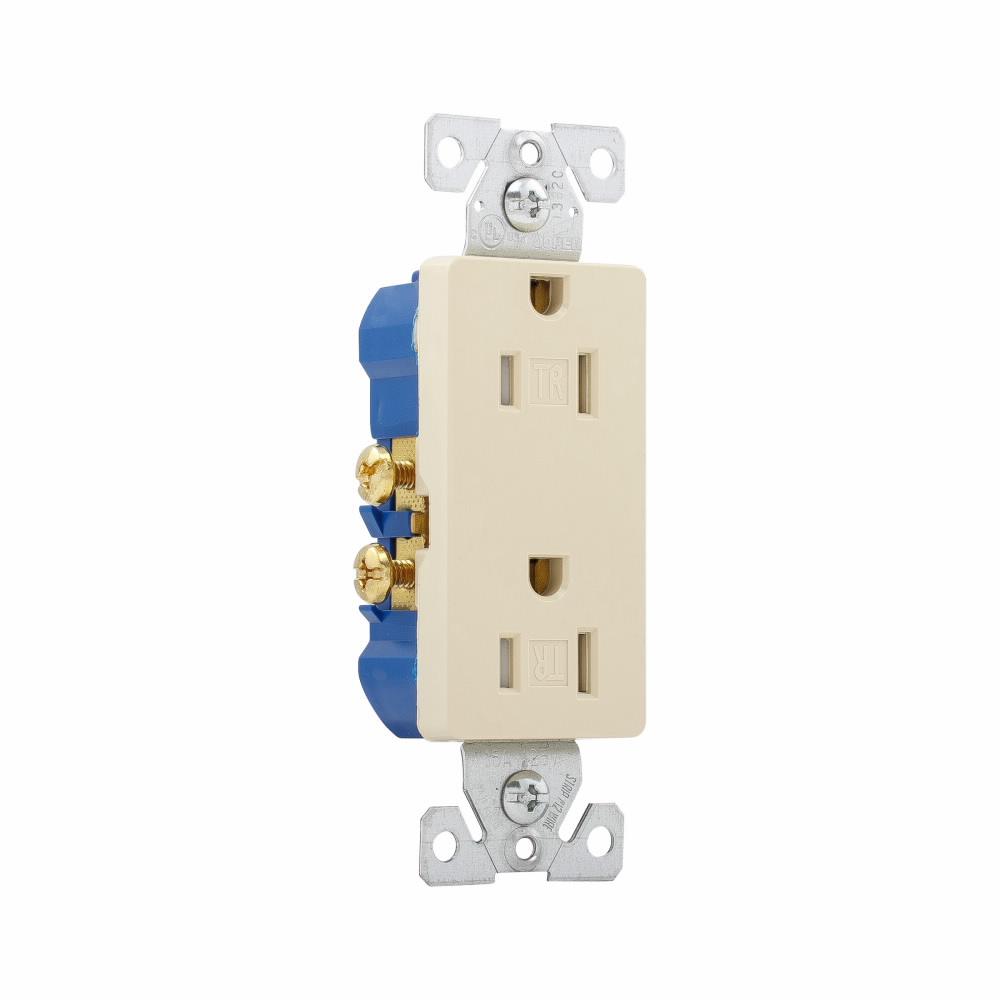

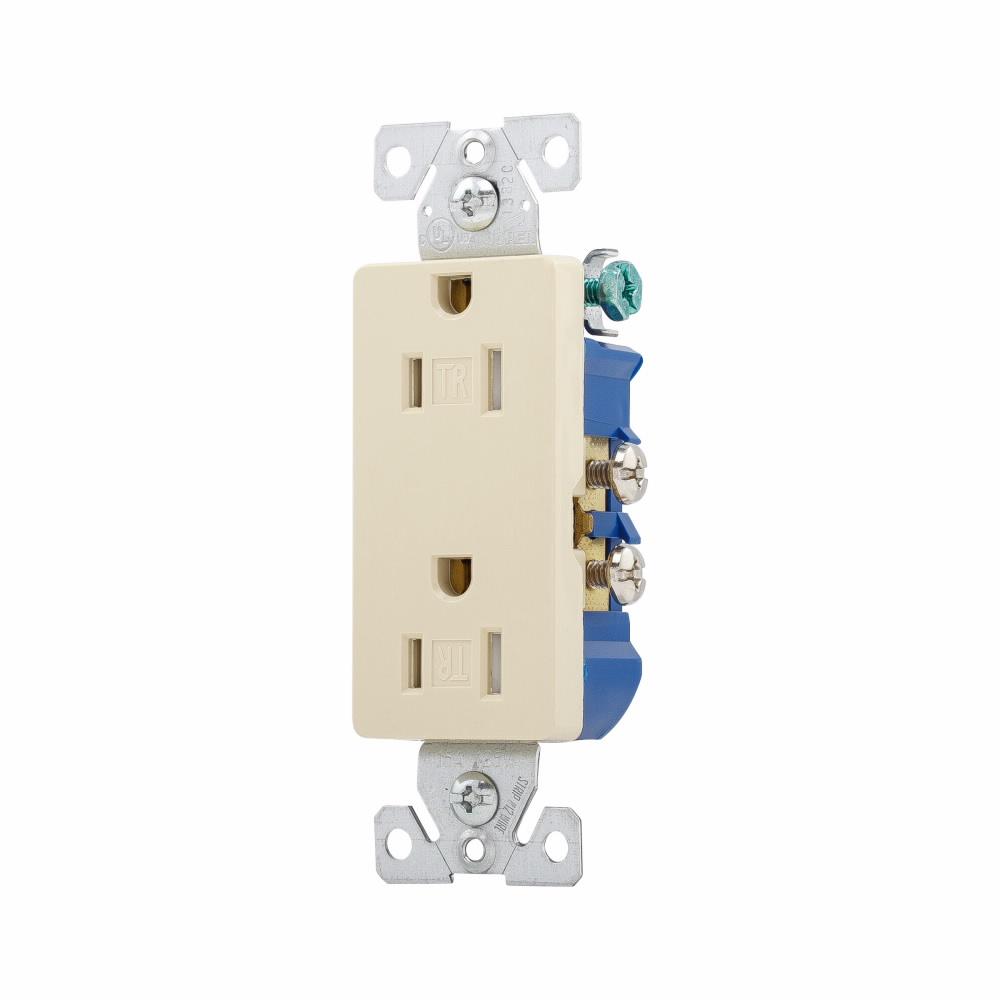

EATON Straight Blade Receptacle, Decorator Duplex Grounding Tamper-Resistant, Series: TR1107, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Standard Grade, -20 to 70 deg C, Back/Side Wire Terminal, Thermoplastic, Ivory, 4.193 in H x 1.3 in W x 1.015 in D Dimensions

• Provides compliance with 2014 NEC Article 406.12
• Durable impact resistant thermoplastic face and back body is virtually unbreakable
• TR designation provides visual identification that device has tamper resistant shutters preventing the insertion of foreign objects
• Terminal screws are backed out and ready for wiring to enhance ease of installation
• Extra long/wide mounting straps
• Side wire terminals accept up to 10 AWG solid or stranded wire
• Flush mounting
