AH3521BK EATON
EATON AH3521BK CWDAH3521BK
Send Print
  1. pin-int

CWDAH3521BK

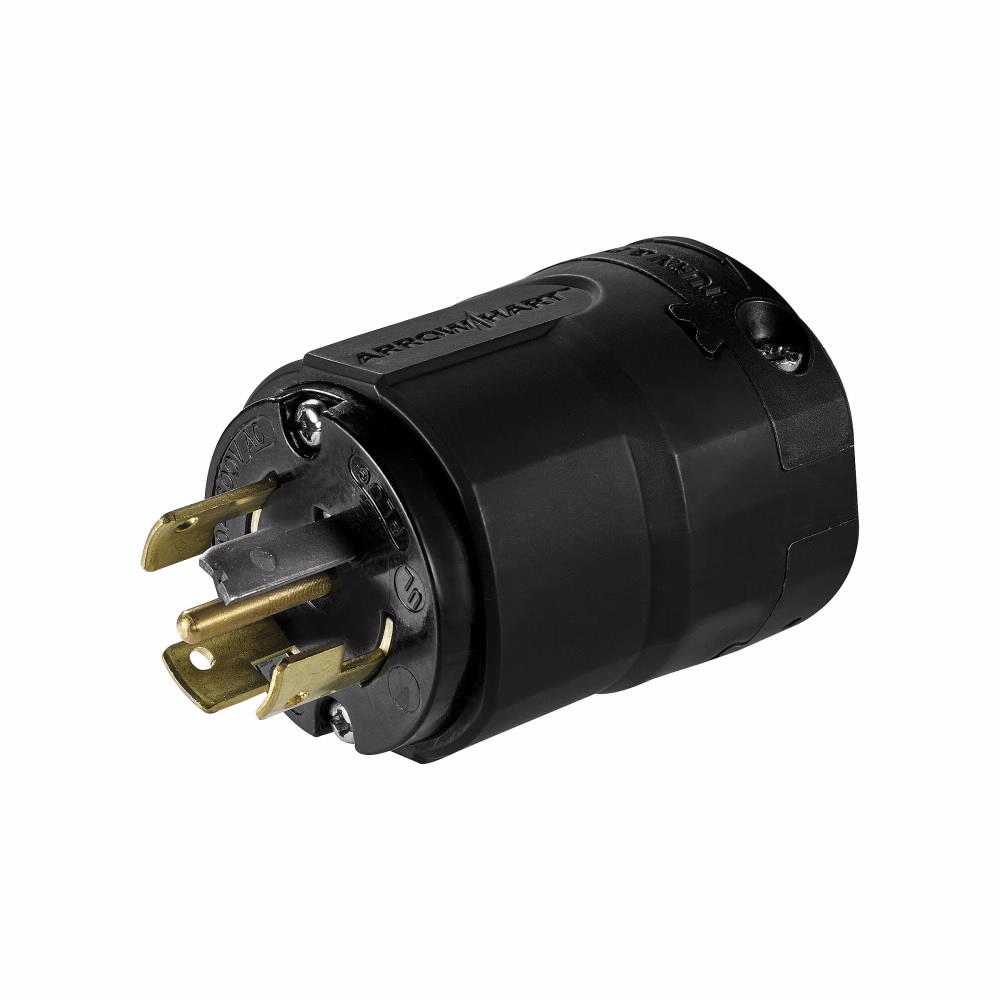

EATON Hart-Lock® Safety Grip™ AH3521BK Locking Plug, 250/600 V, 10 A, 4 Poles, 5 Wires, Black

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDAH3521BK
  • MPN: AH3521BK
  • UPC:032664737794
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Hart-Lock® Safety Grip™ Locking Plug, 250/600 V, 10 A, 4 Pole, 5 Wires, Industrial Grade, 0.63 to 1.16 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black, 4.19 in L x 2.28 in W x 2.31 in H Dimensions

Amperage Rating      :      10 A
Color      :      Black
Cord Diameter      :      0.63 to 1.16 in
Dimensions      :      4.19 in L x 2.28 in W x 2.31 in H
Grade      :      Industrial
Material      :      Nylon
Number of Poles      :      4
Number of Wires      :      5
Temperature Rating      :      -40 to 60 deg C
Terminal Type      :      Screw
Voltage Rating      :      250/600 V
  • 16 to 12 AWG wire
  • Safety Grip™ straight body
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1cfa9196f7f26cc617daa6591ac7ddb59d7150c594c636381b7f40c3a82cb845.pdf
