Hospital specification grade straight blade receptacles - premium back wire and side wire. Arrow Hart™ feature rich line of hospital grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification W-C-596 to provide a consistent means of connectivity where downtime can be critical.

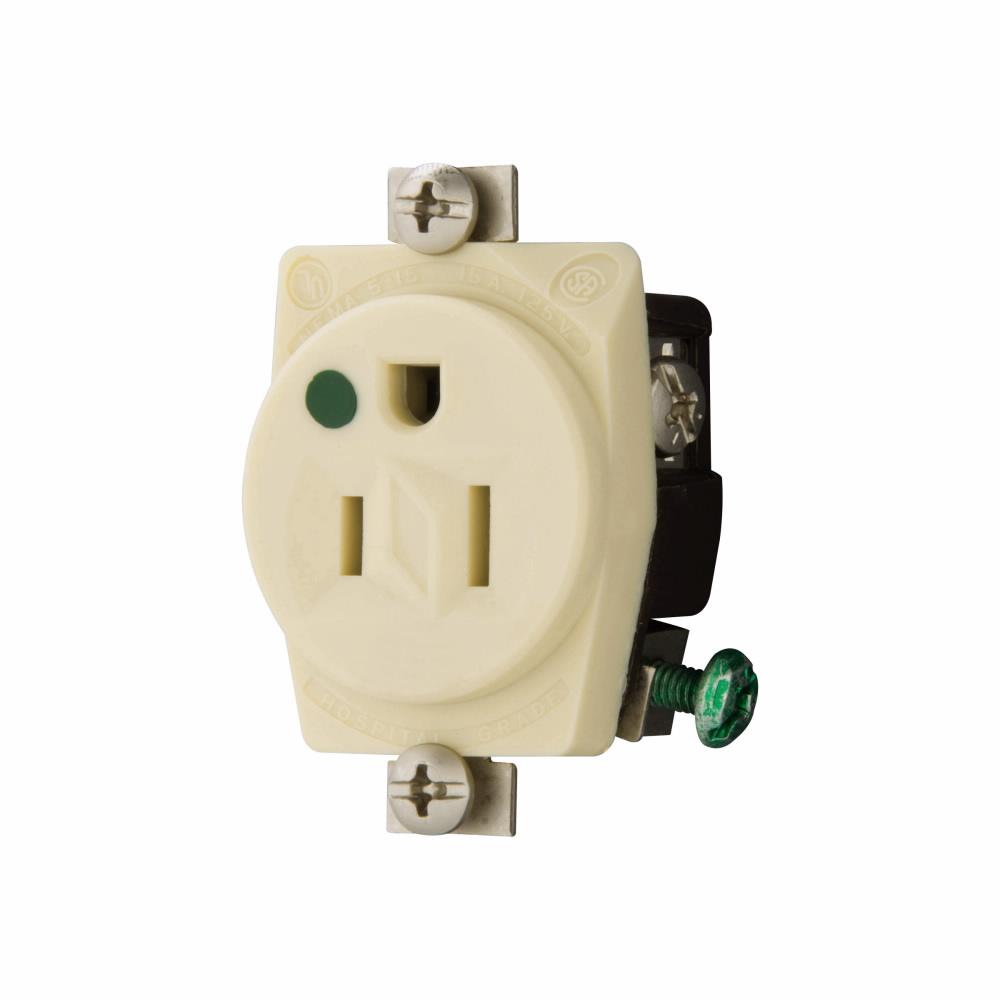

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Premium Single, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial/Hospital Grade, -4 to 194 deg F, Screw Terminal, Nylon, Ivory, 4.19 in H x 1.3 in W x 0.87 in D Dimensions

• High impact and chemical-resistant nylon face
• Tapered back wiring lead-in slots assist in gathering stranded wires for faster, more secure connections
• All terminal and mounting screws are plated, Triple-combination (slot/Phillips®/Robertson) head for superior corrosion-resistance and maximum flexibility
• Long, broad mounting strap helps reach large panel cut-outs for code compliance
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
• Zinc plated steel strap
• 14 to 10 AWG wire terminal

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6ba91e7f876129ec92e4a9845198ba9b93e8691876a1f844ad08042b2c752ecf.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_85176871d0e6ab79860e37f39108071a4cfe05c8491bfc382f93522c8fcd97a8.pdf
