7511V-BOX
EATON
https://www.billows.com/3409979/product/CWD7511VBOX
https://www.billows.com/3409979/product/CWD7511VBOX
CWD7511VBOX

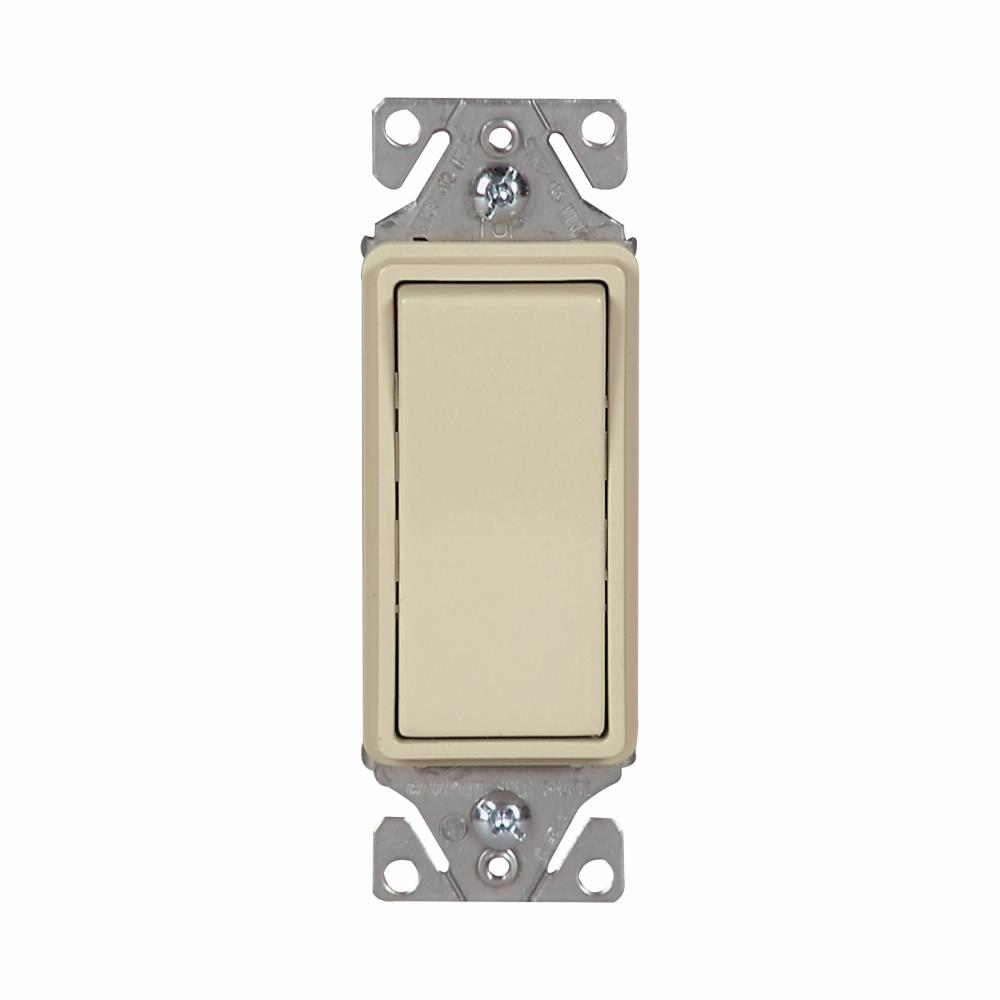

EATON 7511V-BOX 1-Phase Decorator Switch, 120/277 VAC, 15 A
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWD7511VBOX
- MPN: 7511V-BOX
- UPC:032664627996
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
EATON Decorator Switch, 1-Phase, 120/277 VAC, 15 A, 1 Pole, Decorator Actuator, Flush Mounting, Back/Side Wire/Push-In/Screw Terminal, Thermoplastic, Ivory, 1.44 in L x 0.97 in W x 4.19 in H Dimensions
| Actuator | : | Decorator |
| Amperage Rating | : | 15 A |
| Color | : | Ivory |
| Dimensions | : | 1.44 in L x 0.97 in W x 4.19 in H |
| Material | : | Thermoplastic |
| Mounting | : | Flush |
| Number of Poles | : | 1 |
| Terminal Type | : | Back/Side Wire/Push-In/Screw |
| Type | : | 1-Phase |
| Voltage Rating | : | 120/277 VAC |
- Lighted in OFF position
- Maintained closure
- Standard grade
- Motor control load
- Redesigned paddle for easier actuation and quiet operation
- Thermoplastic rocker, top and back body are virtually unbreakable, promising years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide superior integrity
- Backwire clamps on the side terminals provide for easy installation of 12 AWG and 14 AWG wire
- Push in terminals accept 14 AWG solid wire
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for 14 and 12 AWG wire to speed installation
- Tri combo screws accept slotted, Phillips® and Robertson head tools for installation flexibility
