AH5252RD EATON
EATON AH5252RD CWDAH5252RD
Send Print
  1. pin-int

CWDAH5252RD

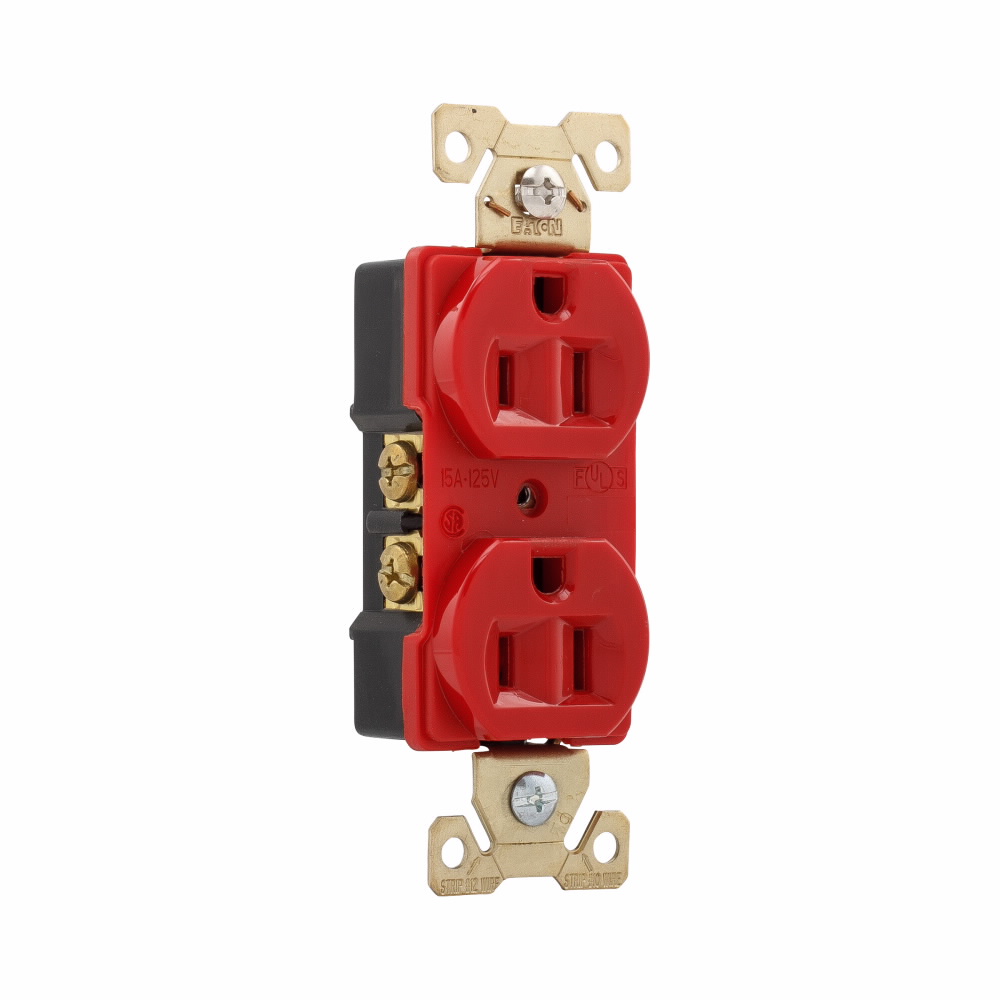

EATON Arrow Hart® AH5252RD Auto Grounding Duplex/Single Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 2 Wires, Red

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDAH5252RD
  • MPN: AH5252RD
  • UPC:032664735240
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's straight blade receptacles cover the full range of residential, hospital, industrial, construction, and commercial grades to meet any application. Choose from decorator or traditional styles, multiple colors, tamper resistant solutions and weather resistant products for exterior installations. Eaton also offers special solutions for complex environments including corrosion-resistant, severe-duty insulated and watertight products.

EATON Arrow Hart® Straight Blade Receptacle, Auto Grounding Duplex/Single Standard, Series: AH5252, 125 VAC, 15 A, 2 Poles, 2 Wires, NEMA 6-15R, Industrial/Specification Grade, -20 to 70 deg C, Back and Side Wired/Screw Terminal, Glass Filled Nylon, Red, 4.19 in H x 0.82 in D

Amperage Rating      :      15 A
Color      :      Red
Dimensions      :      4.19 in H x 0.82 in D
Grade      :      Industrial/Specification
Material      :      Nylon
NEMA Rating      :      NEMA 5-15R
Number of Poles      :      2
Number of Wires      :      3
Series      :      AH5252
Temperature Rating      :      -20 to 70 deg C
Terminal Type      :      Screw
Type      :      Duplex
Voltage Rating      :      125 VAC
  • Brass contacts
  • Flush mounting
  • Nylon face, glass filled nylon base
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_22d73c70d58abc3e0f0e5469077111073876970929161506600a6fb1a1922caf.pdf
