AH5469 EATON
EATON AH5469 CWDAH5469
Send Print
  1. pin-int

CWDAH5469

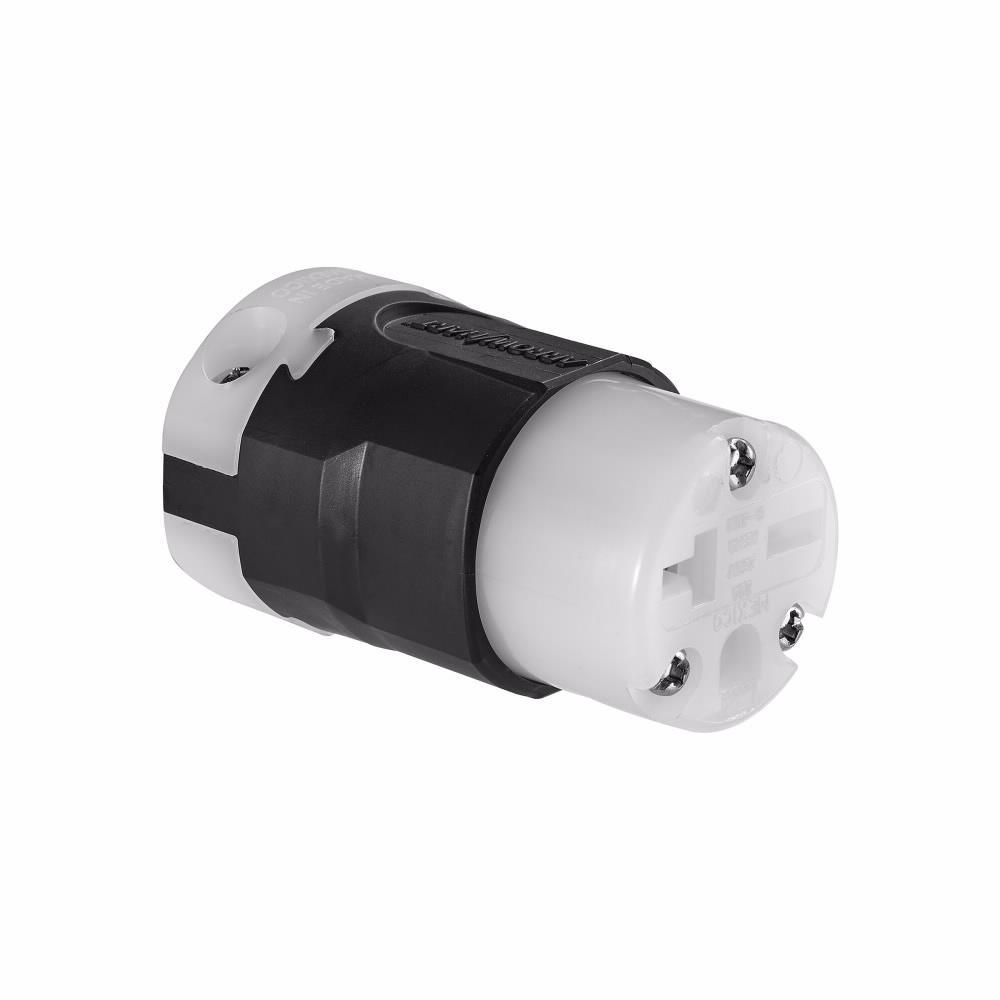

EATON AutoGrip™ Ultra Grip™ AH5469 Straight Blade Connector, 250 V, 20 A, 2 Poles, 3 Wires, Black

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDAH5469
  • MPN: AH5469
  • UPC:032664737589
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Built with a contemporary flare and oval ergonomic design for a comfortable yet secure feel, ultra grip plugs and connectors offer excellent reliability and durability. A dual dovetail design provides superior cord grip retention, and the grommet allows usage across a wide range of cord diameters. Additionally, reversible inserts in the cord grip allow for exceptional clamp force on large diameter cords.

EATON AutoGrip™ Ultra Grip™ Straight Blade Connector, 250 V, 20 A, 2 Pole, 3 Wires, NEMA 6-20P NEMA Rating, Industrial Grade, 0.33 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 1.37 in W Tip 2 Tip x 1.51 Base x 1.83 in L Dimensions

Amperage Rating      :      20 A
Color      :      Black
Cord Diameter      :      0.33 to 0.66 in
Dimensions      :      1.37 in W Tip 2 Tip x 1.51 Base x 1.83 in L
Grade      :      Industrial
Material      :      Nylon
NEMA Rating      :      NEMA 6-20P
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -40 to 75 deg C
Terminal Type      :      Screw
Type      :      Connector
Voltage Rating      :      250 V
  • Polycarbonate terminal retainer
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_eac58fc2042ea982b753a0abb8b1d6145b68c62e97258d70b771f6848c6ee775.pdf
