6265HGC EATON
EATON 6265HGC CWD6265HGC
Send Print
  1. pin-int

CWD6265HGC

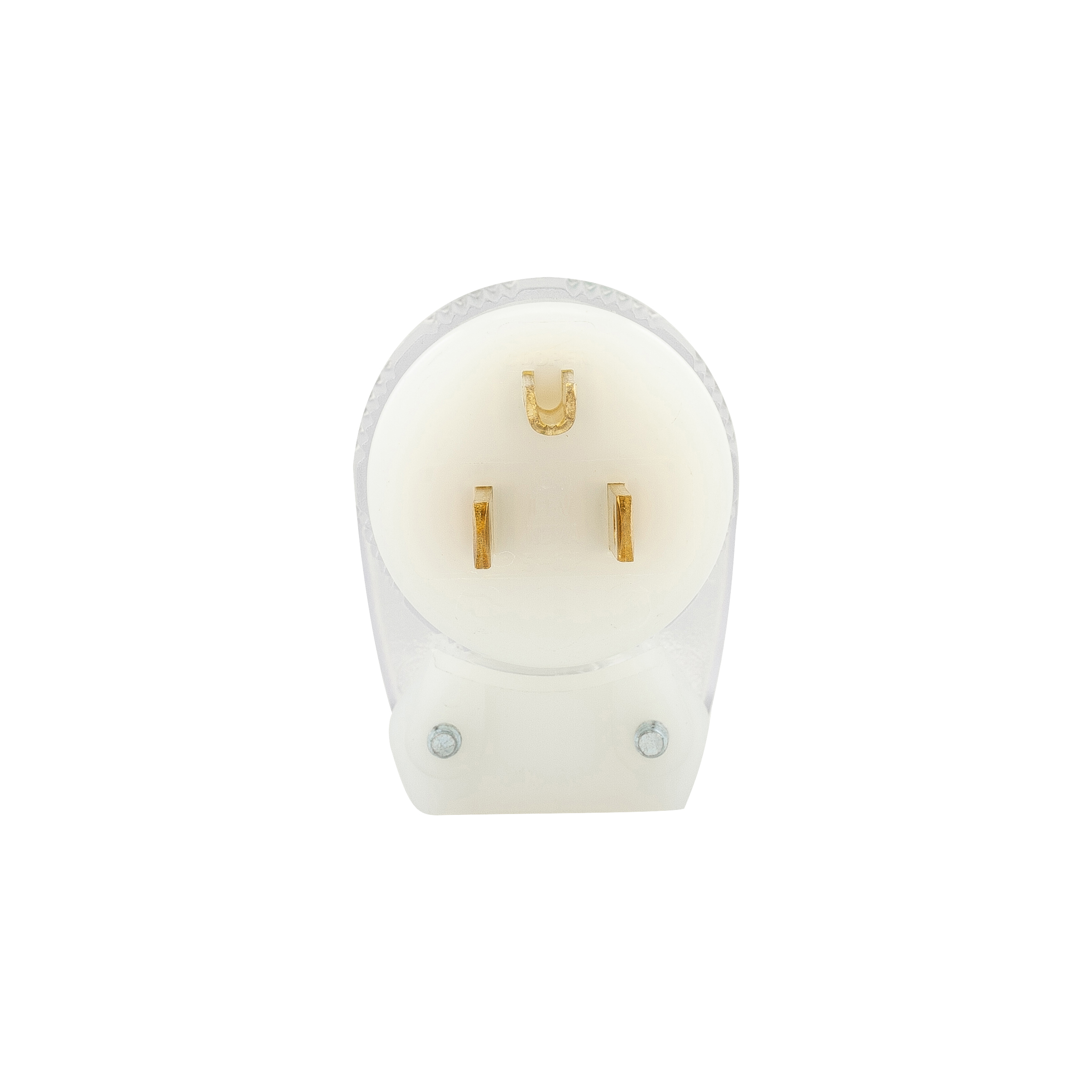

EATON 6265HGC Angled Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Clear

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD6265HGC
  • MPN: 6265HGC
  • UPC:040893048529
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

With a variety of styles including safety grip and auto grip, these devices are designed to install quickly and easily and provide reliable performance in tough industrial environments. Arrow Hart s hospital and specification grade plug and connectors are built to meet and exceed UL federal specification and hospital grade testing. (B-2)

EATON Straight Blade Plug, Angled Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Industrial/Hospital Grade, 0.33 to 0.66 in Diameter Cord, -40 to 75 deg C, Back Wire/Threaded Terminal, Polycarbonate, Clear, 1.5 in L x 1.46 in W x 2.06 in H Dimensions

Amperage Rating      :      15 A
Color      :      Clear
Cord Diameter      :      0.33 to 0.66 in
Dimensions      :      1.5 in L x 1.46 in W x 2.06 in H
Grade      :      Industrial/Hospital
Material      :      Polycarbonate
NEMA Rating      :      NEMA 5-15P
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -40 to 75 deg C
Terminal Type      :      Back Wire/Threaded
Type      :      Angled Grounding
Voltage Rating      :      125 VAC
  • 18 to 12 AWG wire
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_18f15cd3dc77eae3a99b5ff662813008a8ce44ca778132bca7d5240ce45e9c99.pdf
