294B-BOX EATON
EATON 294B-BOX CWD294BBOX
Send Print
  1. pin-int

CWD294BBOX

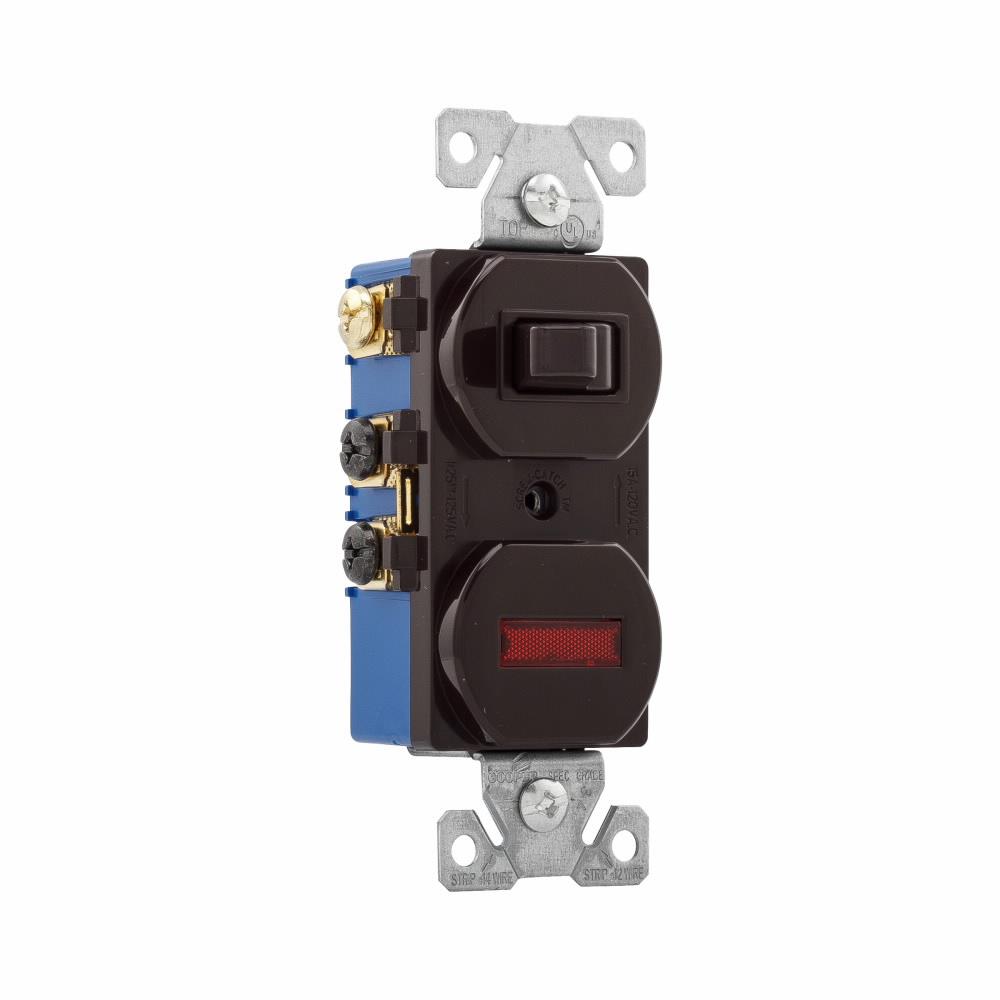

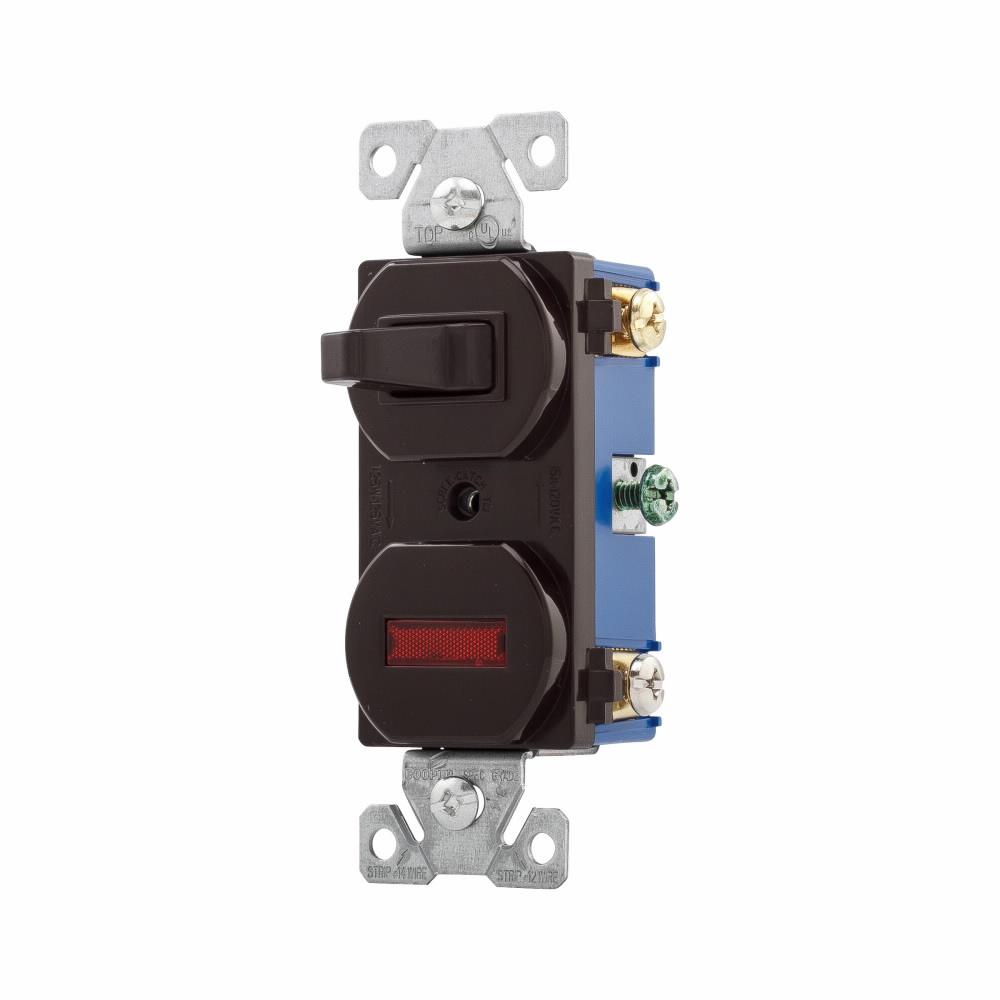

EATON Arrow Hart™ Eaton Wiring Devices 294B-BOX 3-Way Duplex Combination Toggle Switch With 125 VAC Pilot Light, 120/125 VAC, 15 A

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD294BBOX
  • MPN: 294B-BOX
  • UPC:032664162602
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Arrow Hart™ Eaton Wiring Devices Combination Toggle Switch, 3-Way Duplex, 120/125 VAC, 15 A, 1 Pole, Surface Mounting, Screw Terminal, -20 to 60 deg C, Thermoplastic, Brown, 4.19 in H x 1.3 in W x 1.08 in D Dimensions

Amperage Rating      :      15 A
Color      :      Brown
Dimensions      :      4.19 in H x 1.3 in W x 1.08 in D
Material      :      Thermoplastic
Mounting      :      Surface
Number of Poles      :      1
Temperature Rating      :      -20 to 60 deg C
Terminal Type      :      Screw
Type      :      3-Way Duplex
Voltage Rating      :      120/125 VAC
  • Back and Side wire connection
  • Mounting straps are zinc plated to for added corrosion-resistance
  • Heavy duty brass contact
  • Thermoplastic top and back body are virtually unbreakable
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_aca267b5b5d7d1c77ffb5cdacba7510a952b49fa3cf482f542f2bdb53b50b887.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_81f649e4fa28991178ade1c611026c331fcbe52003548490ec983b4537ec6b5a.pdf
