SGUL75 EATON
EATON SGUL75 CWDSGUL75
Send Print
  1. pin-int

CWDSGUL75

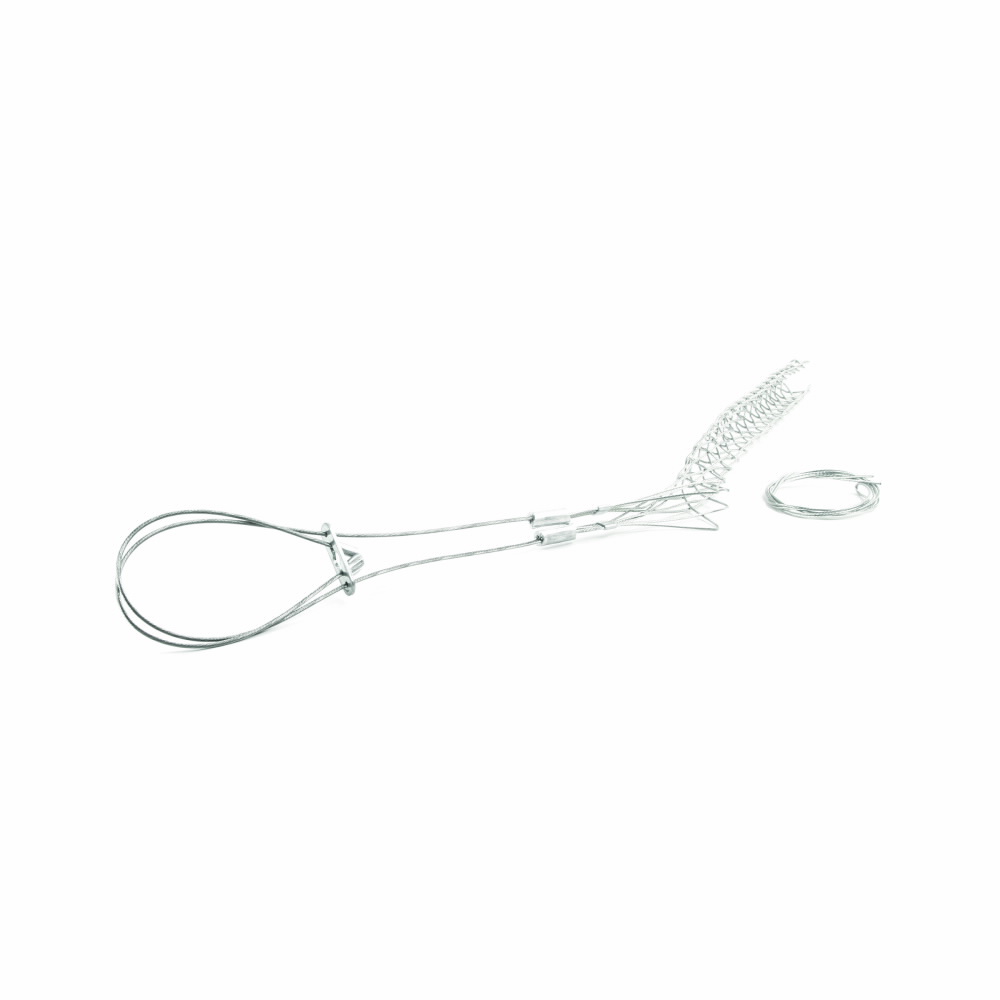

EATON Arrow Hart® SGUL75 Locking Bale Eye Standard Duty Split Lace Support Grip, 1320 lb Breaking Strength, 0.75 to 0.99 in Cable, Bronze, Tin Coated

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDSGUL75
  • MPN: SGUL75
  • UPC:040893647876
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's complete offering of Arrow Hart wire mesh grips is built tough for industrial applications. The broad selection of strain relief, pulling, and support grips are available in a wide range of styles and sizes to serve all of your cable protection needs.

EATON Arrow Hart® Support Grip, Locking Bale Eye Standard Duty Split Lace, 1320 lb Breaking, 0.75 to 0.99 in Cable, 14 in Mesh Length, Bronze, Tin Coated

Breaking Strength      :      1320 lb
Cable Size      :      0.75 to 0.99 in
Finish      :      Tin Coated
Material      :      Tin-Coated
Mesh Length      :      14 in
Type      :      Locking Bale Eye Standard Duty Split Lace
  • Split lace support grips are used when the end of the cable cannot easily be accessed and the support grip is intended for permanent installation
  • Wire mesh is produced from high quality, non-magnetic, tin coated bronze which provides superior corrosion resistance
  • Support grip will hold more than one cable
  • Absorbs additional strain from vibration, expansion, contraction and flexing
  • Locking bale attachment fits around beam or pipe and can be locked in place
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c022aceb2e22672b330bde8939c07dc4da2936a9218b890b5f45c89e64fabef4.pdf
