CWDCSB220LA

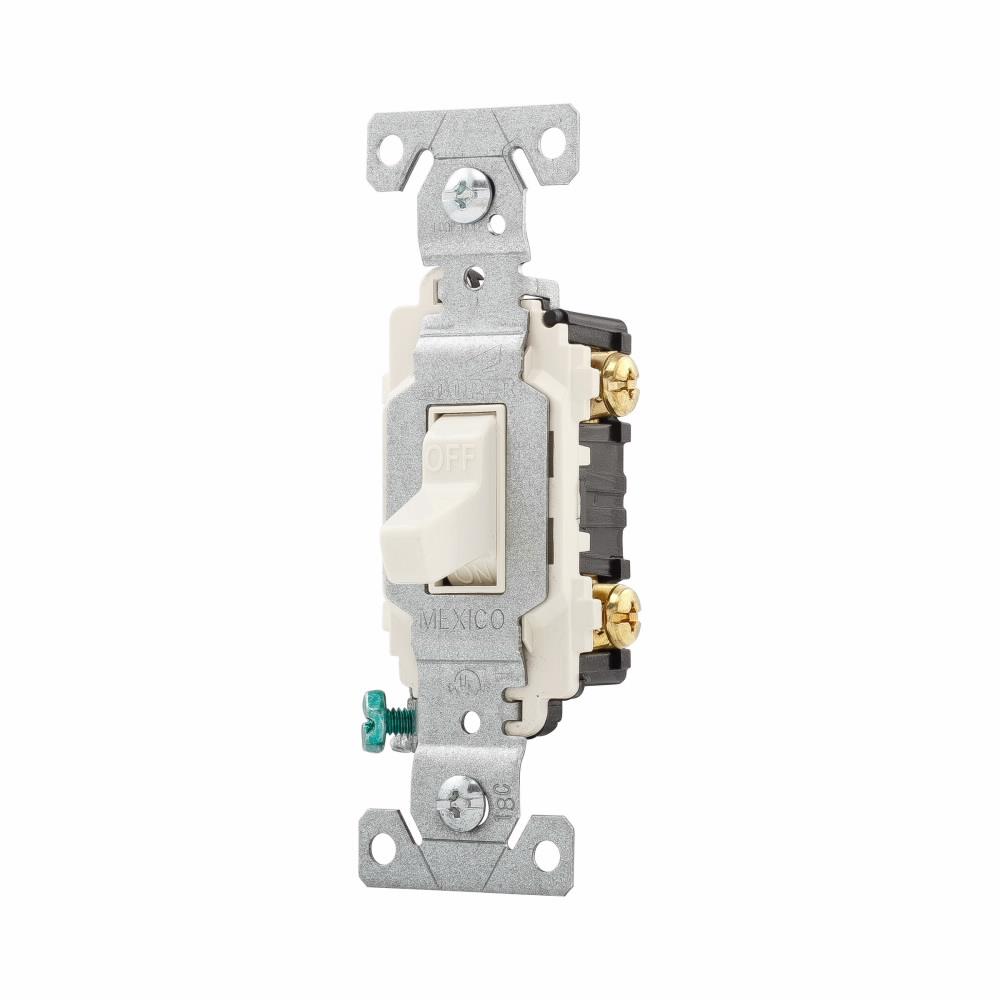

EATON Arrow Hart® CSB220LA Toggle Switch, 120/277 VAC, 20 A, 1/2 hp Power Rating
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWDCSB220LA
- MPN: CSB220LA
- UPC:032664719080
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term

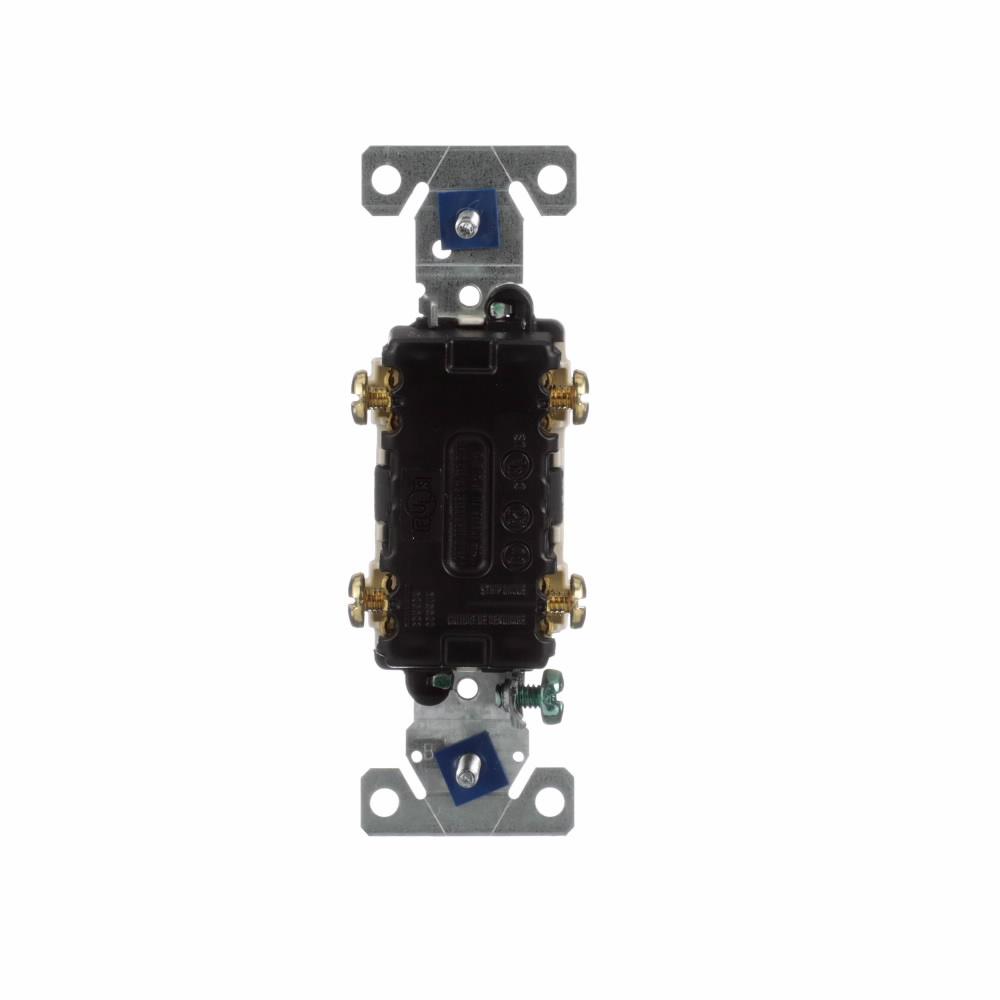

Commercial grade AC quiet switches back and side wire. Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections. Side wire and back wire terminals accept up to #10 solid or stranded wire. Ground screw terminal standard. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications. Tri-combination slot/Phillips Robertson head mounting and terminal screws ease installation with power screwdrivers.
EATON Arrow Hart® Toggle Switch, 120/277 VAC, 20 A, 1/2 hp Power, 2 Pole, Toggle Actuator, Wall Mounting, Screw Terminal, 50000 Cycles Operating Cycles, PVC, Light Almond, Environmental Conditions: -20 to 60 deg C Temperature, 3.28 in L x 1.31 in W x 1.05 in H Dimensions
| Actuator | : | Toggle |
| Amperage Rating | : | 20 A |
| Color | : | Light Almond |
| Dimensions | : | 3.28 in L x 1.31 in W x 1.05 in H |
| Environmental Conditions | : | -20 to 60 deg C Temperature |
| Material | : | PVC |
| Mounting | : | Wall |
| Number of Poles | : | 2 |
| Operating Cycles | : | 50000 Cycles |
| Power Rating | : | 1/2 hp |
| Terminal Type | : | Screw |
| Voltage Rating | : | 120/277 VAC |
- Patent pending spring cup toggle design for robust actuation
- Terminals accept up to 10 AWG solid or stranded wire
- 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
- Terminal screws are backed out and ready to wire
- Tri combo head mounting and terminal screws ease installation
- Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
- Specification grade
- 14 to 10 AWG wire
- Nylon toggle
