AH8115W EATON
EATON AH8115W CWDAH8115W
Send Print
  1. pin-int

CWDAH8115W

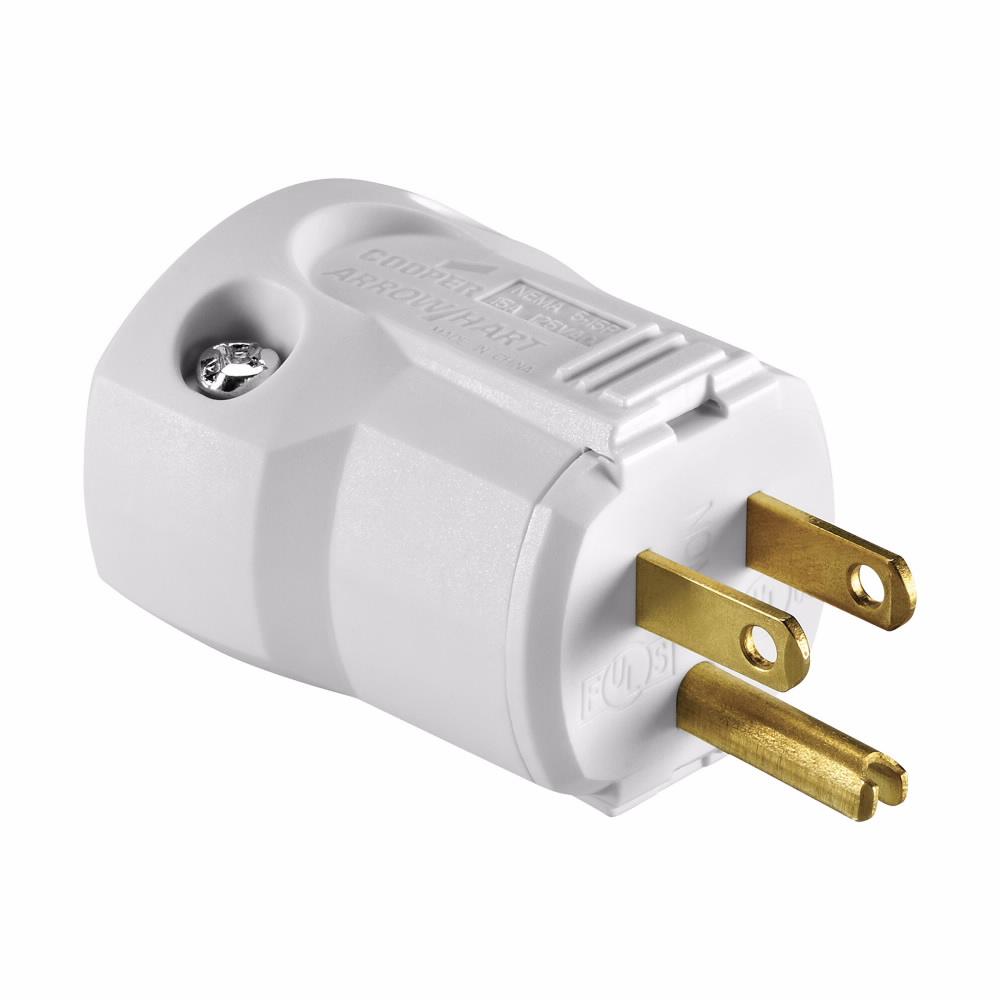

EATON QuickGrip AH8115W Straight Blade Plug, 125 V, 15 A, 2 Poles, 3 Wires, White

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDAH8115W
  • MPN: AH8115W
  • UPC:032664722967
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Quick grip plugs and connectors are designed for quick, secure installation and easy, long-lasting use. They feature rugged nylon construction and a roomy wiring chamber for fast and easy installation. Our scalloped ergonomic design provides a comfortable grip during installation and operation.

EATON QuickGrip Straight Blade Plug, 125 V, 15 A, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Hospital Grade, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, White, 1.46 in W Top x 1.67 in W Base x 2.59 in L Dimensions

Amperage Rating      :      15 A
Color      :      White
Cord Diameter      :      0.22 to 0.66 in
Dimensions      :      1.46 in W Top x 1.67 in W Base x 2.59 in L
Grade      :      Hospital
Material      :      Nylon
NEMA Rating      :      NEMA 5-15P
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -40 to 75 deg C
Terminal Type      :      Screw
Voltage Rating      :      125 V
  • Polycarbonate terminal retainer
