SA540B EATON
EATON SA540B CWDSA540B
Send Print
  1. pin-int

CWDSA540B

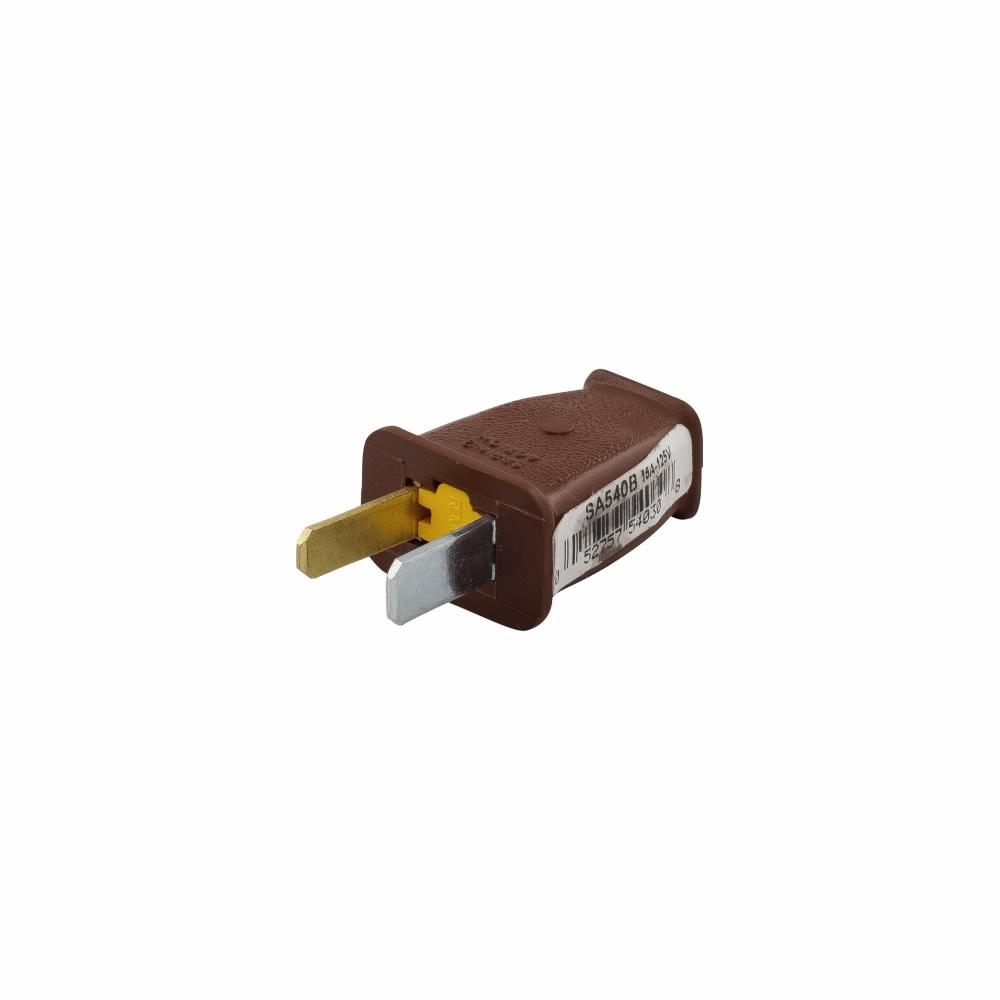

EATON Wiring Devices SA540B Polarized Spring Action Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 2 Wires, Brown

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDSA540B
  • MPN: SA540B
  • UPC:052757540308
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Standard grade thermoplastic spring action non-grounding plugs provides cord grip for easy storage on appliances such as vacuum cleaners, fans, etc. Made of high impact-resistant thermoplastic for long term durability.

EATON Wiring Devices Straight Blade Plug, Polarized Spring Action, 125 VAC, 15 A, 2 Pole, 2 Wires, NEMA 1-15P NEMA Rating, Residential/Standard Grade, 0.33 in Diameter Cord, -20 to 60 deg C, Thermoplastic, Brown, 1.37 in L x 1.16 in W x 0.75 in D Dimensions

Amperage Rating      :      15 A
Color      :      Brown
Cord Diameter      :      0.33 in
Dimensions      :      1.37 in L x 1.16 in W x 0.75 in D
Grade      :      Residential/Standard
Material      :      Thermoplastic
NEMA Rating      :      NEMA 1-15P
Number of Poles      :      2
Number of Wires      :      2
Temperature Rating      :      -20 to 60 deg C
Type      :      Polarized Spring Action
Voltage Rating      :      125 VAC
  • Made of high impact-resistant thermoplastic for long term durability
  • Plug blades firmly embedded in body
  • Cord clips ON equipped plugs provide easy storage on appliances such as vacuum cleaners and fans
  • 3/4 in base
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9ea33465acf76c341b4089dfd3bb572ca355c5a16b8619cf0496be0865d57c94.pdf
