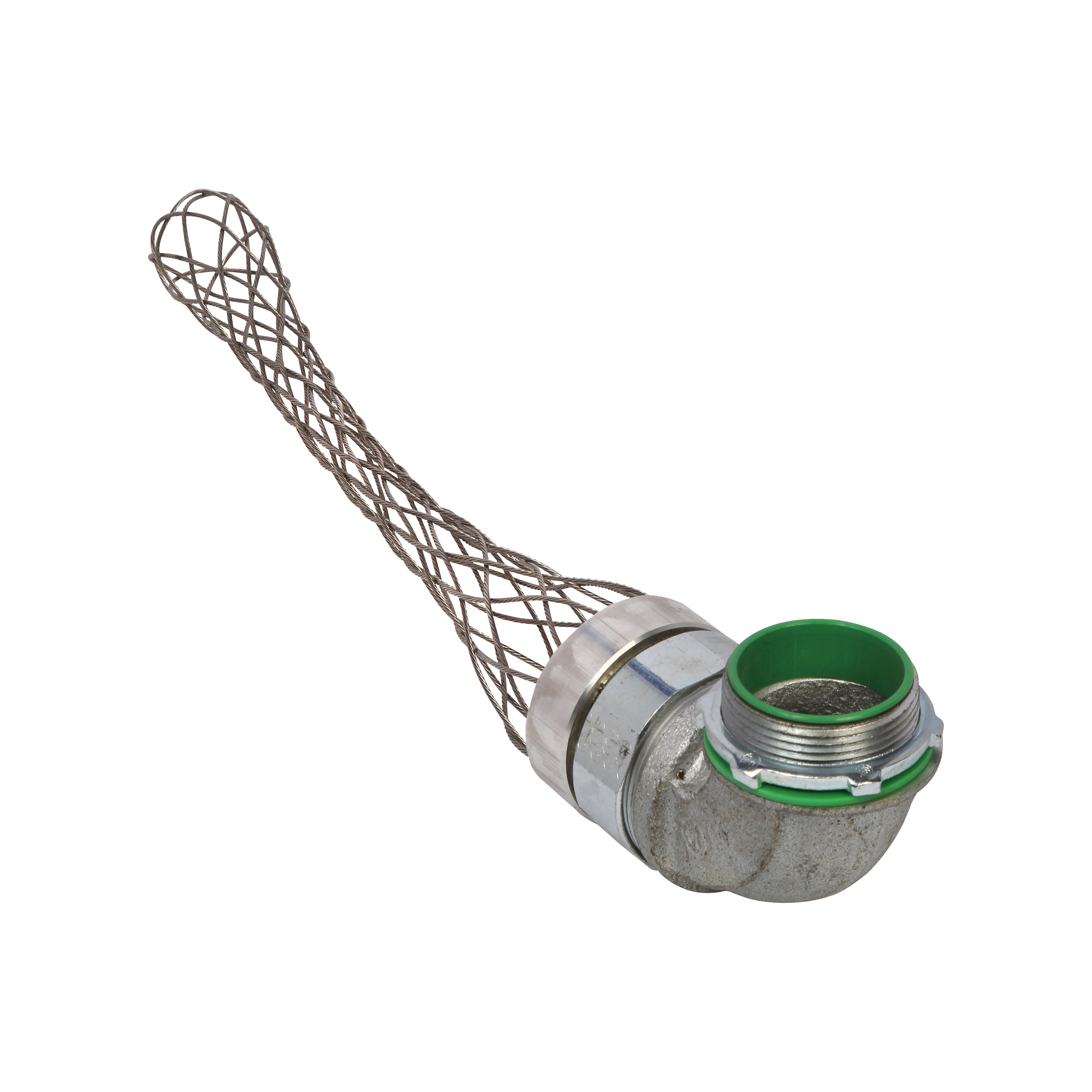

EATON Arrow Hart® LTB690 Industrial Liquidtight Grip, 2 in Trade, Stainless Steel

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDLTB690
  • MPN: LTB690
  • UPC:040893653679
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton's complete offering of Arrow Hart wire mesh grips is built tough for industrial applications. The broad selection of strain relief, pulling, and support grips are available in a wide range of styles and sizes to serve all of your cable protection needs.

EATON Arrow Hart® Liquidtight Grip, Industrial, 2 in, MNPT, 90 deg, 7-1/2 in Mesh Length, Stainless Steel

Angle      :      90 deg
Connection Type      :      MNPT
Material      :      Stainless Steel Mesh
Mesh Length      :      7.5 in
Trade Size      :      2 in
Type      :      Industrial
  • Liquidtight grips are woven of stainless steel mesh with zinc plated steel or malleable iron bodies and nuts for corrosion resistance
  • Each fitting is supplied with an insulated throat to provide conductor insulation and protect against damage by flexing, heat expansion and contraction
  • Single weave wire mesh provides uniform arc of bend and corrosion resistance
  • They are used to connect liquidtight flexible conduit to electrical enclosures to prevent conduit pull out
  • Liquidtight grips are recommended in the wiring of motors and any electrical enclosure where liquidtight conduit is subject to motion or strain
  • For metallic flexible conduits and 2 in NPT
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c68733a71ce3b7c37c2094528c3214526a3e6c606d4c15ba2f039977e0f365db.pdf
