RFTR9605-TSG EATON
Send Print
  1. pin-int

CWDRFTR9605TSG

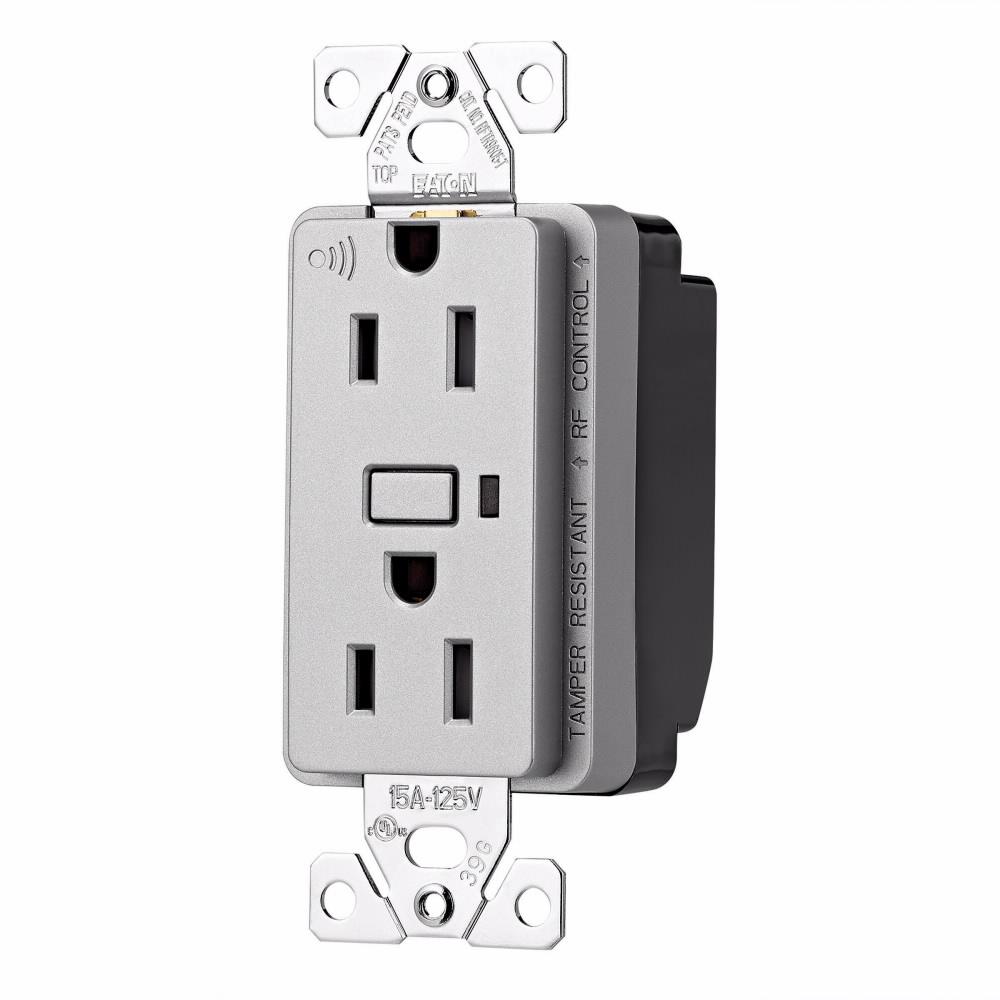

EATON RFTR9605-TSG Split Control Wireless Duplex Receptacle, 125 V, 15 A, 2 Poles, 3 Wires, Silver Granite

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDRFTR9605TSG
  • MPN: RFTR9605-TSG
  • UPC:032664758843
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Make your home connected and smart with Eaton's Z-Wave Plus Wireless collection. Eaton's complete offering of wireless lighting controls is easy to install, requires no special wiring and is perfect for both new construction and existing homes. With Z-Wave Plus wireless collection you get enhanced cyber security, improved wireless performance and flexibility to choose from 10 different colors to match your lighting mood and room d cor.

EATON Duplex Receptacle, Split Control Wireless, 125 V, 15 A, 1/2 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, 32 to 104 deg F, Lead Wire Terminal, Thermoplastic, Silver Granite, 1.39 in L x 1.61 in W x 4.2 in H Dimensions

Amperage Rating      :      15 A
Color      :      Silver Granite
Dimensions      :      1.39 in L x 1.61 in W x 4.2 in H
Frequency Rating      :      60 Hz
Horsepower      :      1/2 hp
Material      :      Thermoplastic
NEMA Rating      :      NEMA 5-15R
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      32 to 104 deg F
Terminal Type      :      Lead Wire
Type      :      Split Control Wireless
Voltage Rating      :      125 V
  • Provides Z-Wave control of one outlet leaving the other one for normal use
  • Can be wired with standard 3-way switch where traveler wire exist for 3-way
  • Ability to be controlled remotely by other Z-Wave devices through association (Z-Wave Plus devices only)
  • Dimmable blue LED at center right of paddle illuminates to indicate ON/OFF status
  • Patented indicator system alerts if the device is not set up in the network
  • Patented built-in wire stripper for #14 and #12 wire to speed installation
  • Configurable "power ON state"
  • Child lockout feature which disables local control at receptacle
  • Supports panic mode with compatible hubs
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_02c2199cf956389626f32bd4ee9261a2364f2e00c7bac5976156ccbd420816c0.pdf
