CWDIG4700

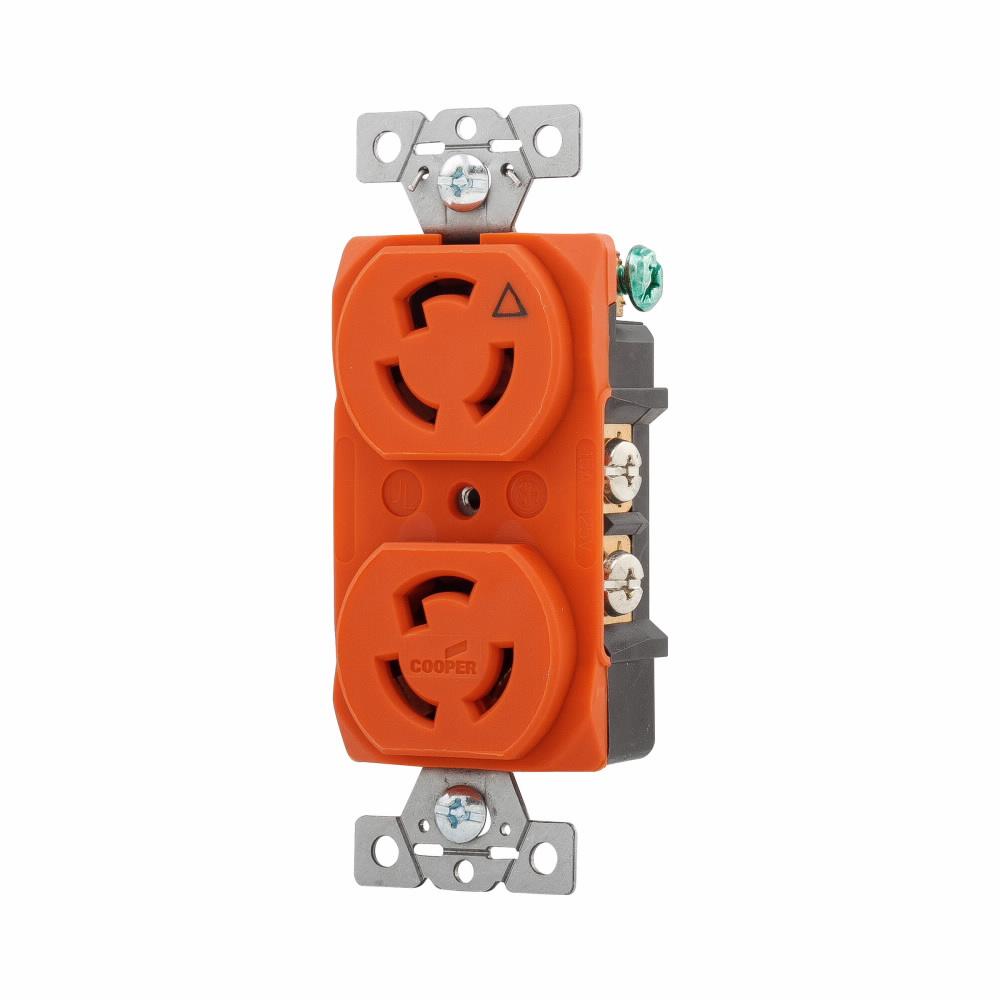

EATON Eaton Wiring Devices Arrow Hart™ Hart-Lock® IG4700 Duplex Isolated Grounding Locking Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Orange
- Manufacturers: Eaton
- Brand Name: EATON
- BPN: CWDIG4700
- MPN: IG4700
- UPC:032664547638
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term
Hart-Lock® industrial specification grade locking devices. Isolated ground receptacles 50 A, 125 VAC NEMA L5-15 2-pole 3-wire. The widest range of NEMA and non-Nema devices, designed and built with superior materials for long-lasting performance.
EATON Eaton Wiring Devices Arrow Hart™ Hart-Lock® Locking Receptacle, Duplex Isolated Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA L5-15 NEMA Rating, Industrial Grade, -40 to 70 deg C, Screw Terminal, Glass Filled Nylon, Orange, 1.73 in W x 4.07 in D Dimensions
| Amperage Rating | : | 15 A |
| Color | : | Orange |
| Dimensions | : | 1.73 in W x 4.07 in D |
| Grade | : | Industrial |
| Material | : | Glass Filled Nylon |
| NEMA Rating | : | NEMA L5-15 |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Temperature Rating | : | -40 to 70 deg C |
| Terminal Type | : | Screw |
| Type | : | Duplex Isolated Grounding |
| Voltage Rating | : | 125 VAC |
- 14 to 10 AWG wire terminal
