DF8AP-GY EATON
Send Print
  1. pin-int

CWDDF8APGY

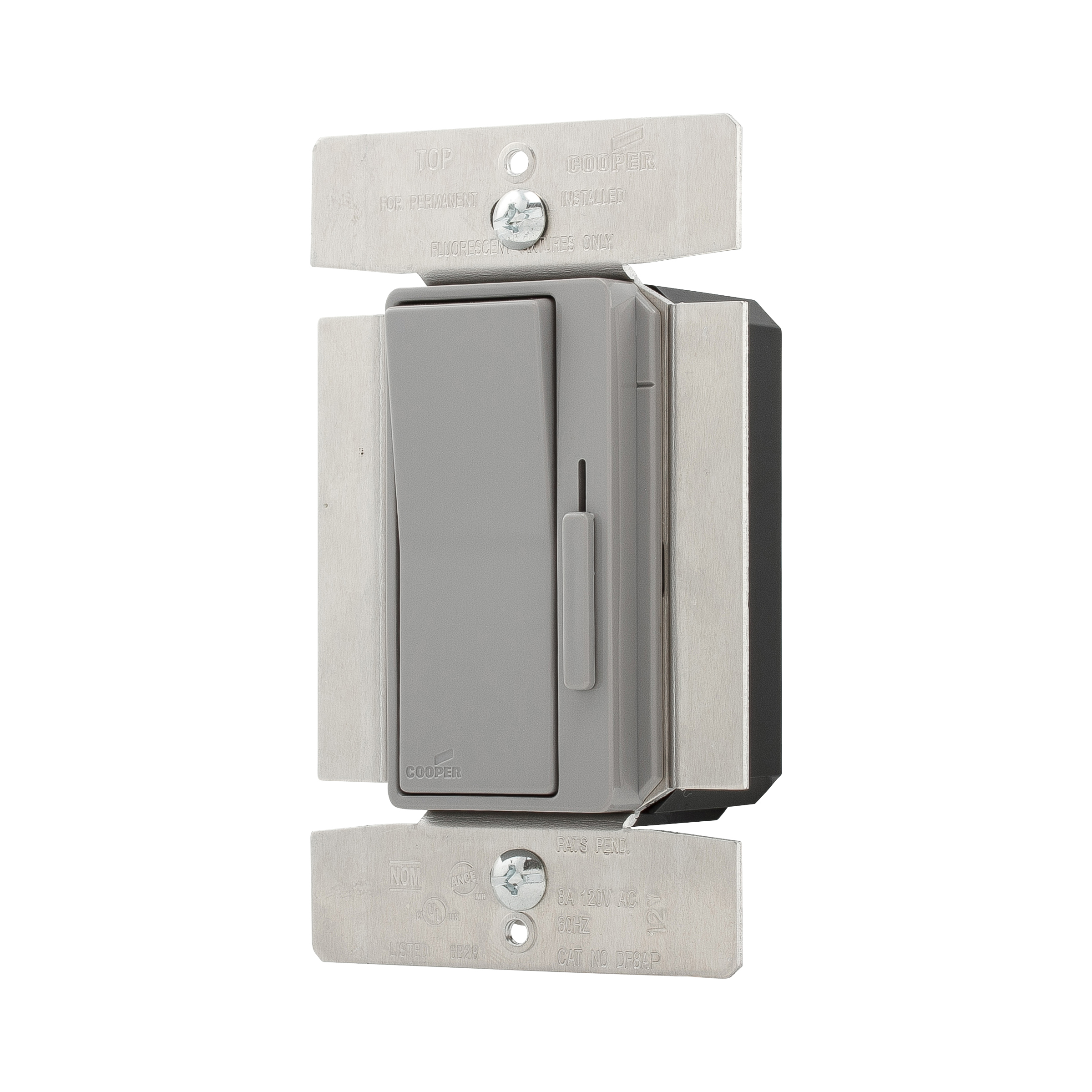

EATON Devine® DF8AP-GY Decorator Dimmer Switch, 120 V, 8.3 A, 1 Poles, 3-Way/Preset Operation, Gray

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDDF8APGY
  • MPN: DF8AP-GY
  • UPC:032664712951
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Using the latest in dimming technology, Eaton's dimmers let you adjust the level of your lighting at the light switch, so you can bring the right look to the room and save money at the same time. That s because lighting controls reduce the amount of electricity used by your lights, which saves electricity, reduces utility bills and extends the life of the bulb. Eaton's lighting controls are compatible with most common lighting loads, including LED, CFL, MLV, ELV and Fluorescent; and they come in multiple styles and colors, you can select the perfect dimmer for every room in your home or commercial building.

EATON Devine® Decorator Dimmer Switch, 120 V, 8.3 A, 1000 W Power, 1 Pole, Fluorescent Lamp, Operation Mode: 3-Way/Preset, Back/Side Wire Terminal, 0 to 40 deg C, Polycarbonate, Gray, 3 in L x 2 in W x 4-1/4 in H Dimensions

Amperage Rating      :      8.3 A
Color      :      Gray
Dimensions      :      3 in L x 2 in W x 4-1/4 in H
Lamp Type      :      Fluorescent
Material      :      Polycarbonate
Number of Poles      :      1
Operation Mode      :      3-Way/Preset
Power Rating      :      1000 W
Temperature Rating      :      0 to 40 deg C
Terminal Type      :      Back/Side Wire
Voltage Rating      :      120 V
  • Integrated linear slide actuator
  • 14 to 12 AWG wire
  • Mark 10™, AmbiStar® and Tu-Wire® compatible
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_348c48588bf8289f00696ad1469e728797042dad7458d9b59716e7423d8999ac.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_49c1510f8cbf8d4d37b36989b8909123601a40eede96f39edc2256c47751c0e2.pdf
