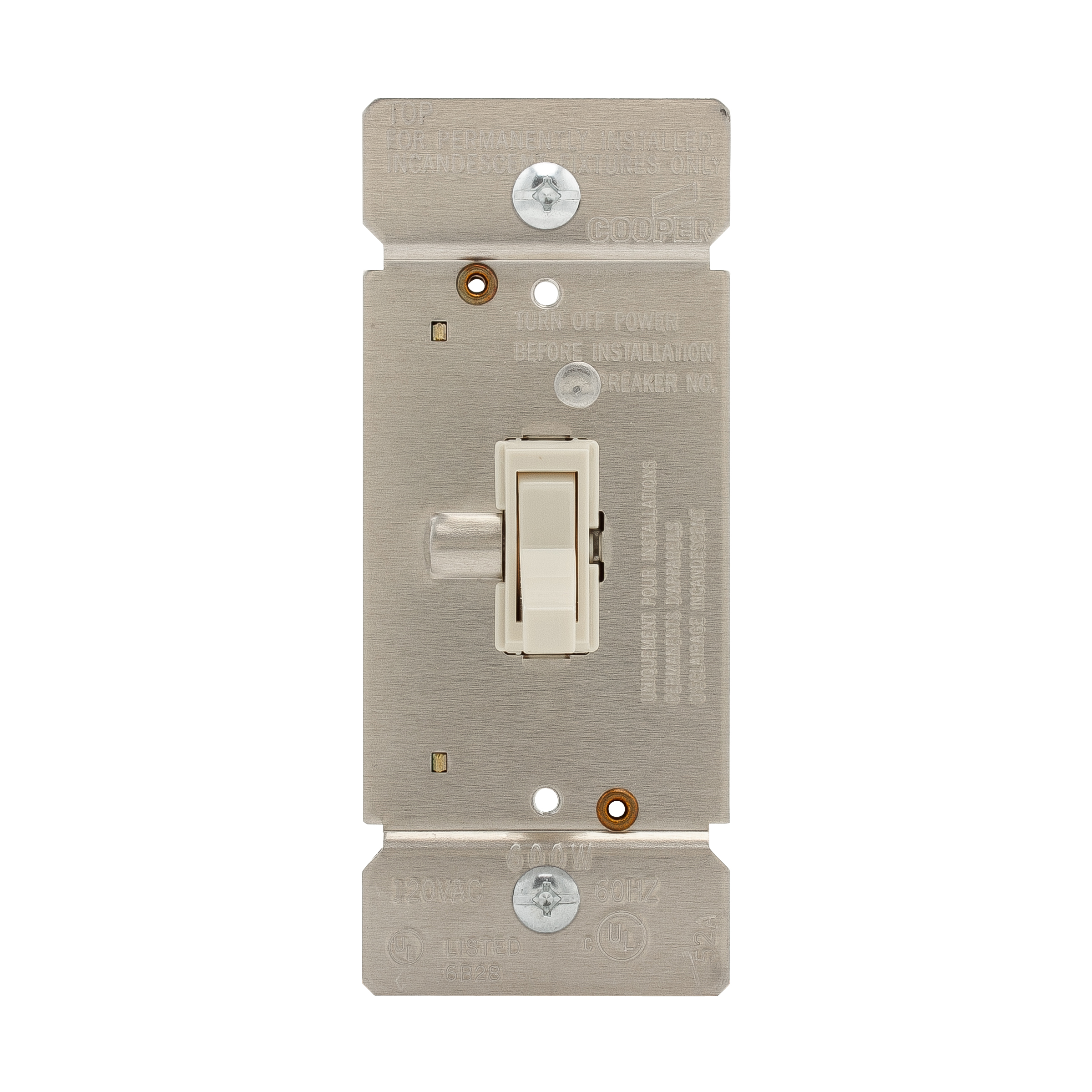

EATON TI061-LA 3-Way Dimmer Switch, 120 V, 1 Poles, Preset Operation, Light Almond

  • Manufacturers: Eaton
  • Brand Name: EATON
  • MPN: TI061-LA
  • UPC:032664699320
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Using the latest in dimming technology, Eaton's dimmers let you adjust the level of your lighting at the light switch, so you can bring the right look to the room and save money at the same time. That s because lighting controls reduce the amount of electricity used by your lights, which saves electricity, reduces utility bills and extends the life of the bulb. Eaton's lighting controls are compatible with most common lighting loads, including LED, CFL, MLV, ELV and Fluorescent; and they come in multiple styles and colors, you can select the perfect dimmer for every room in your home or commercial building.

EATON Dimmer Switch, 3-Way, 120 V, 600 W Power, 60 Hz Frequency, 1 Pole, Incandescent/Halogen Lamp, Operation Mode: Preset, Fan Speed Control, Flush Mounting, Lead Wire Terminal, 0 to 40 deg C, Polycarbonate, Light Almond, 1.95 in L x 2.9 in W x 4.75 in H Dimensions

Color      :      Light Almond
Control      :      Fan Speed
Dimensions      :      1.95 in L x 2.9 in W x 4.75 in H
Frequency Rating      :      60 Hz
Lamp Type      :      Incandescent/Halogen
Material      :      Polycarbonate
Mounting Type      :      Flush
Number of Poles      :      1
Operation Mode      :      Preset
Power Rating      :      600 W
Temperature Rating      :      0 to 40 deg C
Terminal Type      :      Lead Wire
Type      :      3-Way
Voltage Rating      :      120 V
  • 1-pole and 3-way wiring offered in a single unit or separately
  • Matches existing wall switches
  • Replaces a standard switch and offers dimmer capabilities
  • Fully variable fan control allows for precise fan speed setting
  • Radio frequency interference (RFI) filtering for radio, audio and video equipment
  • Power failure memory
  • Electrostatic discharge protection
  • Square law dimming, perceived dimming level is proportional to the slider position
  • Precise color matching
  • Compatible with any traditional switch, wallplate or screwless wallplate
