Hospital specification grade straight blade receptacles - premium back wire and side wire. Arrow Hart™ feature rich line of hospital grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification W-C-596 to provide a consistent means of connectivity where downtime can be critical.

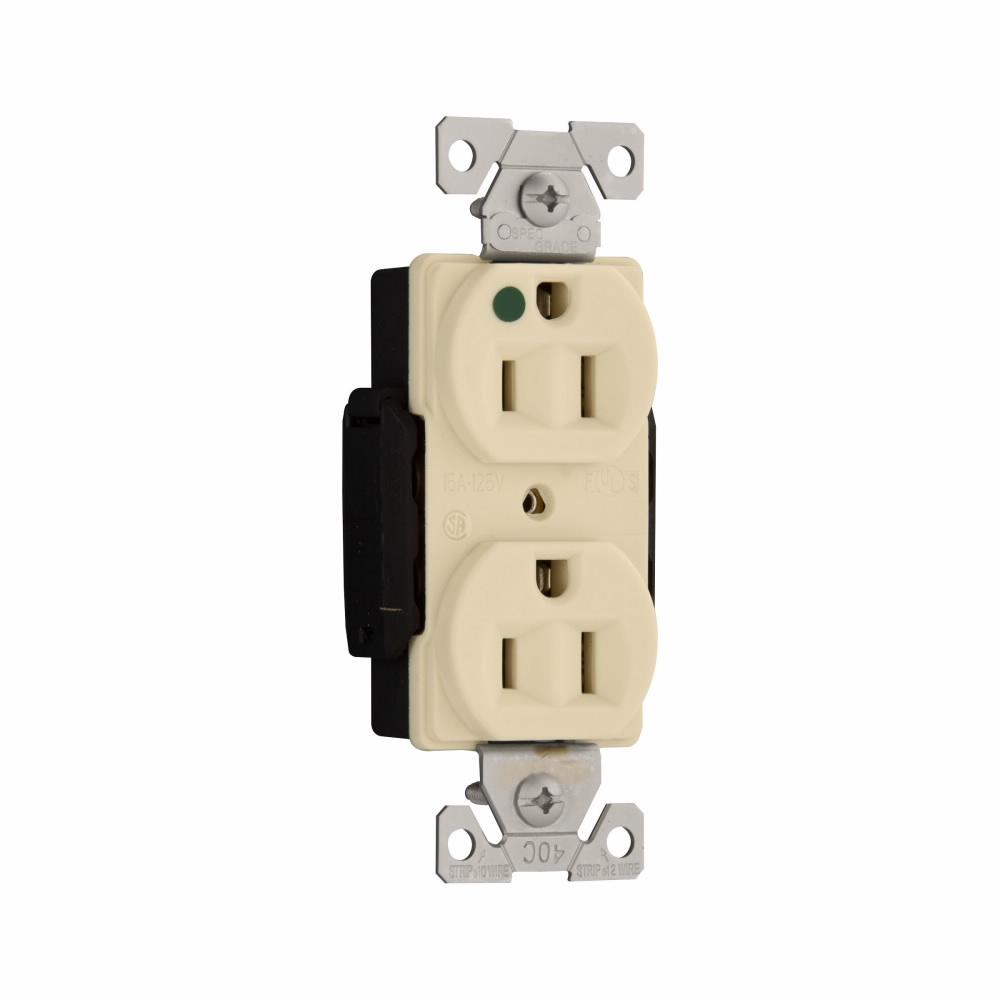

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Duplex Illuminated Premium, Series: AH8200, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial/Hospital Grade, -4 to 194 deg F, Screw Terminal, Glass Filled Nylon, Ivory, 4.19 in H x 1.32 in W x 0.88 in D Dimensions

• Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
• Exclusive 5-leaf solid brass line contacts provides consistent performance and superior plug retention
• 0.05 in (1.27 mm) solid brass mounting strap with non-riveted, integral 1-piece grounding system for highest durability assures superior ground integrity under heaviest use
• High impact and chemical-resistant nylon face
• Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
• All terminal and mounting screws Triple-combination (slot/Phillips®/Robertson) head for maximum installer flexibility
• Long, broad mounting strap helps reach large panel cut-outs for code compliance
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
• Screw catch feature on duplex devices speeds mounting of wallplates
• Nylon face, glass filled nylon base
• Flush mounting
• 14 to 10 AWG wire terminal

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5109934d6765d71106c9c06aa58014ac3b98fe0c621037c4496b4bf1cd646ff7.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_852d4678f0fe96a7409db20f3029e45a8b9db74f803d1725b240b59db3488022.pdf
