AHIGL1620R EATON
EATON AHIGL1620R CWDAHIGL1620R
Send Print
  1. pin-int

CWDAHIGL1620R

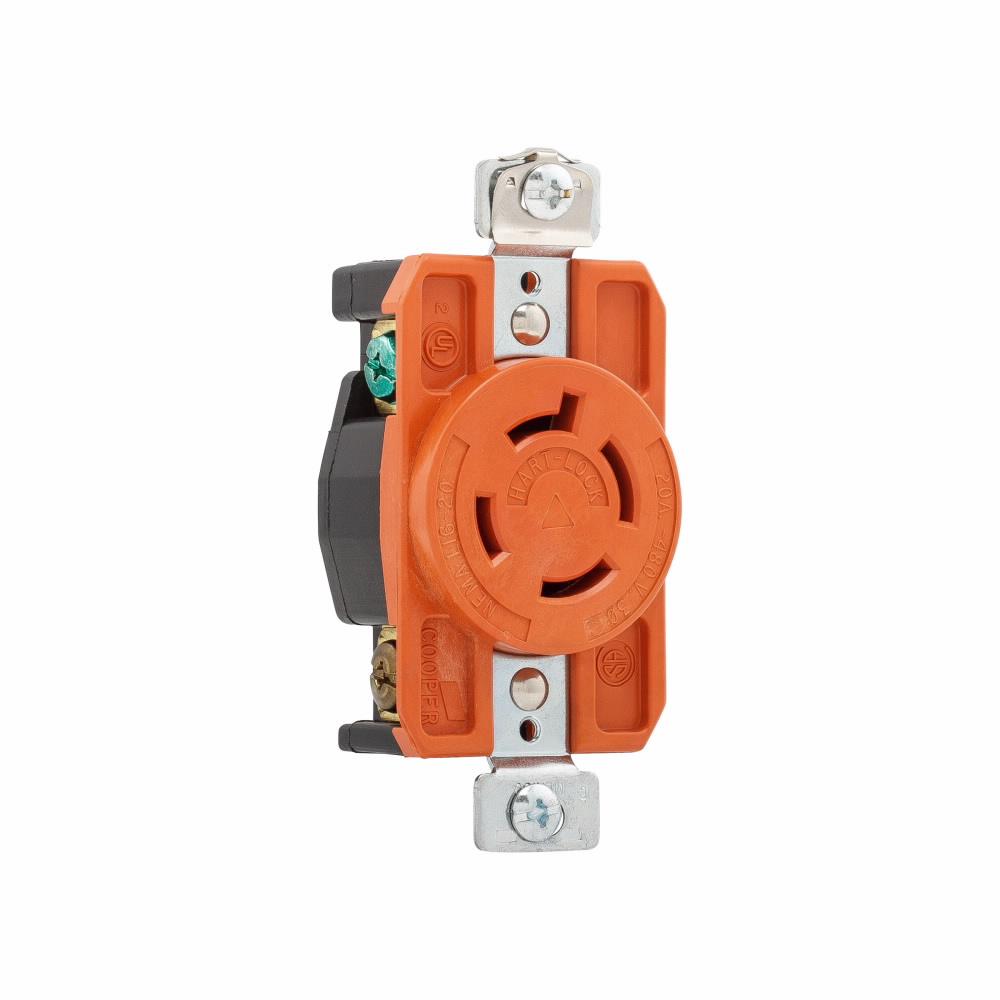

EATON Arrow Hart® AHIGL1620R Single Locking Receptacle, 480 V, 20 A, 3 Poles, 4 Wires, Orange

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWDAHIGL1620R
  • MPN: AHIGL1620R
  • UPC:040893677460
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

EATON Arrow Hart® Locking Receptacle, Single, 480 V, 20 A, 3 Pole, 4 Wires, L16 to 20 NEMA Rating, Industrial Grade, 0.375 to 1.156 in Diameter Cord, Back/Side Wire/Screw Terminal, Glass-Filled Nylon, Orange

Amperage Rating      :      20 A
Color      :      Orange
Cord Diameter      :      0.375 to 1.156 in
Grade      :      Industrial
Material      :      Glass-Filled Nylon
NEMA Rating      :      L16 to 20
Number of Poles      :      3
Number of Wires      :      4
Terminal Type      :      Back/Side Wire/Screw
Type      :      Single
Voltage Rating      :      480 V
  • 14 to 8 AWG wire
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_26b52ab331ed2ccf8a8877c539ecbcf95866f97e3ab3a5d84f4d8703e67c238d.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_781f1e463eba9c892a5776f4850e5d44125881b79db29a5af347f8d17c6d5f7f.pdf
