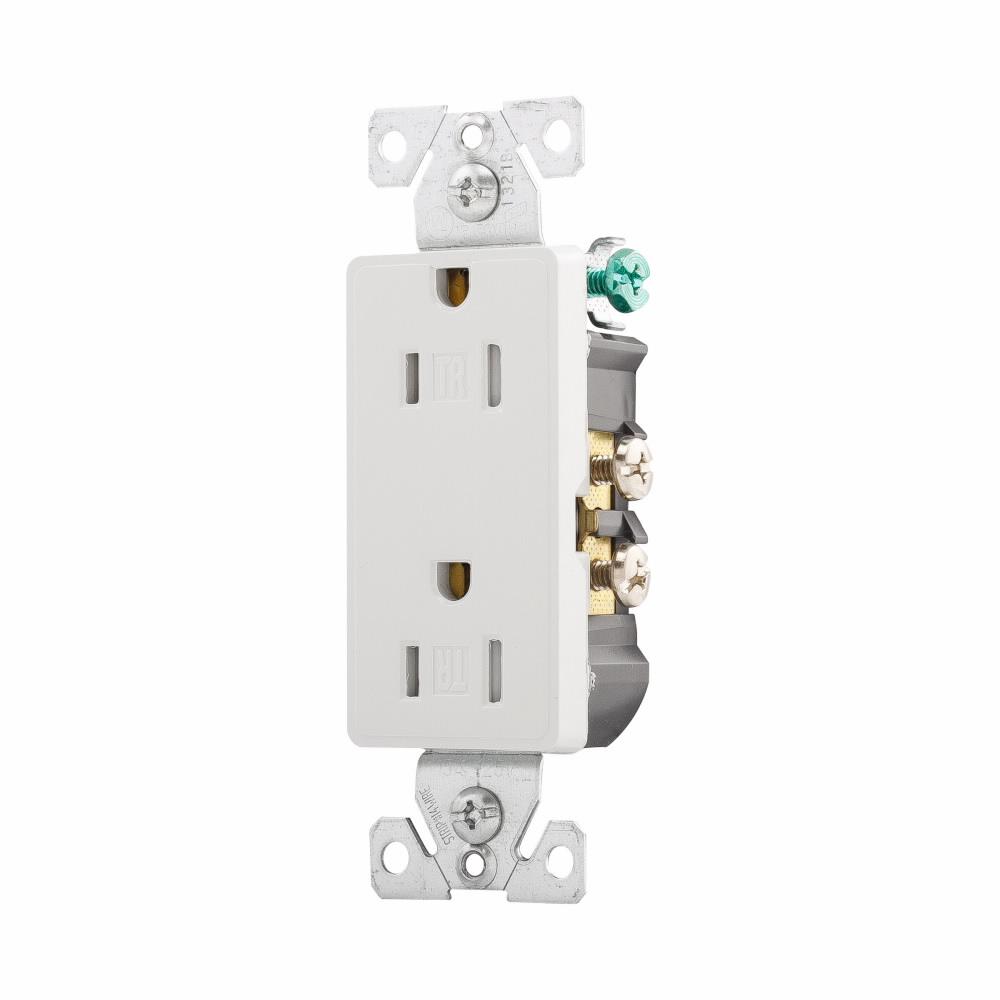

EATON ASPIRE™ Eaton Wiring Devices 9505TRWS Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White Satin

  • Manufacturers: Eaton
  • Brand Name: EATON
  • BPN: CWD9505TRWS
  • MPN: 9505TRWS
  • UPC:032664665493
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

ASPIRE™ tamper-resistant duplex receptacles have an oversized strap that provides a solid base for mounting and virtually eliminates floating installations. A host of installer-friendly features not only save labor but ensure firm connections and dependable service. Tamper-resistant receptacles provide compliance with 2011 NEC article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. TR designation provides visual identification.

EATON ASPIRE™ Eaton Wiring Devices Straight Blade Receptacle, Duplex Tamper-Resistant, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential Grade, -4 to 158 deg F, Push-In/Screw Terminal, Thermoplastic, White Satin, 1.3 in Dia x 3.81 in H Dimensions

Amperage Rating      :      15 A
Color      :      White Satin
Dimensions      :      1.3 in Dia x 3.81 in H
Grade      :      Residential
Material      :      Thermoplastic
NEMA Rating      :      NEMA 5-15R
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -4 to 158 deg F
Terminal Type      :      Push-In/Screw
Type      :      Duplex Tamper-Resistant
Voltage Rating      :      125 VAC
  • Provides compliance with 2014 NEC Article 406.12
  • Durable impact-resistant thermoplastic face and back body is virtually unbreakable and also chemical-resistant
  • TR designation provides visual identification that device has Tamper-resistant shutters preventing the insertion of foreign objects
  • Terminal screws are backed out and ready-to wire
  • Extra long and extra wide mounting straps
  • Side wire terminals accept up to 10 AWG solid stranded wire
  • Push-in terminals accept #14 AWG solid wire for quick installation
  • Nylon insulated
  • Wall mount
  • 14 to 12 AWG wire
